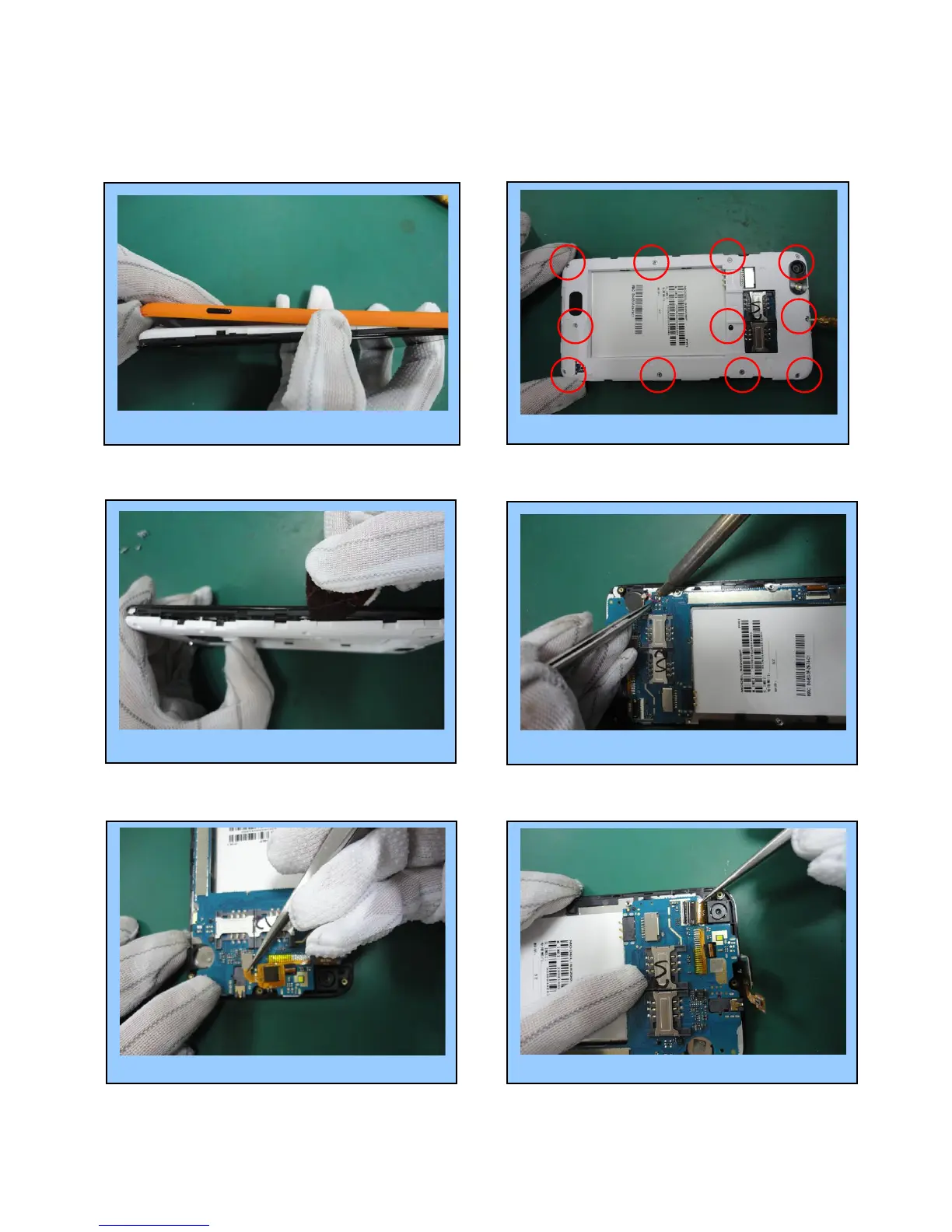

CHAPTER 3 DISASSEMBLY AND ASSEMBLY
3.1 DISASSEMBLY
Remove the Battery cover…….……..………………... 1
Unfasten the 11 screws…….…………..…2
Remove the vibrator………………………4
Remove the TP FPC…..………...………..5
Remove the back cover….……………..………..3
Take out the camera..…………….……... 6
