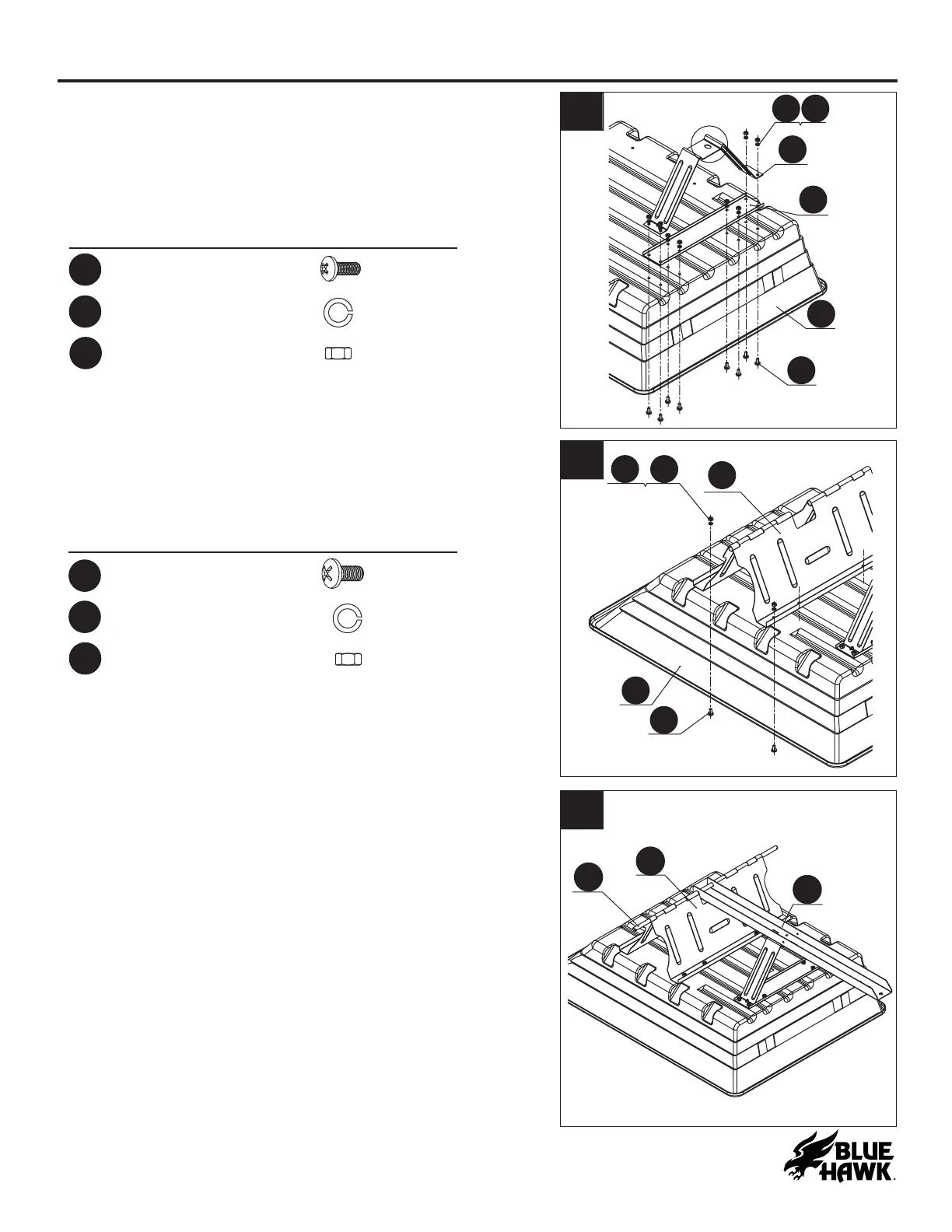

Blue Hawk 0564437 - Assembly Instructions - Part 1; Step 1: Attach Tongue Support and Clamp Plate; Step 2: Attach Wheel Axle Supports; Step 3: Mount Hitch Tongue and Wheel Axle

5
Hardware Used
GG
x 8
M6x16 Screw
Hardware Used
FF
1
2
3
1. Attach the tongue support (D) and clamp plate (E)
to the poly bed (C) using eight sets of M6x16 screws
(GG), Ø6 lock washers (MM) and M6 hex nuts (JJ).
Note: The hole on tongue support (D) should be on
right side.
2. Attach the wheel axle supports (B) to the back of
poly bed (C) using eight sets of M8x16 screws (FF),
Ø8 lock washers (NN) and M8 hex nuts (II).
x 8
Ø6 Lock Washer
x 8
M8x16 Screw
x 8
Ø8 Lock Washer
3.
Center the hitch tongue (I) in the wheel axle support (B).
Insert the wheel axle (A) through the hole and slide
it through both the wheel axle support (B) and the
hitch tongue (I).
MM
NN
ASSEMBLY INSTRUCTIONS
GG
MM JJ
D
B
FF
NNII
x 8
M6 Hex Nut
JJ
x 8
M8 Hex Nut
II
EE NN
H
G
F
C
I
B
A
