Service Parts for Model YA662B (continued) - Air Hyd. Pump
Parts List for Model YA662B
200003 Gasket 1
200472 Bolt 2
201110 Lockwasher 4
201115 Lockwasher 2
201481 Lockwasher 2
201733 Expansion Plug 1
201784 Lockwasher 1
201789 Lockwasher 2
203198h Ball (7/32" O.D.) 1
203199h Ball (1/4" O.D.) 1
203200h Ball (9/32" O.D.) 1
203201h Ball (5/16" O.D.) 1
203202 Ball (11/32" O.D.) 1
203207h Ball 1
203272 Nut 2
203297 Nut 2
203299 Nut 2
203301 Jam Nut 1
203323 Nut 2
203332 Nut 1
203344 Nut 2
204270 Washer 2
204277 Washer 1
204301 Washer 1
204303 Washer 1
204372 Washer 1
204444 Cotter Pin 4
204461 Cotter Pin 1
204842h Gasket 1
207169 Nut 2
209964 Lockwasher 2
210225 Spacer 1
210311 Pipe Plug 3
210411h Washer 1
211341 Rivet 1
212227 Release Valve 1
212689 Bolt 2
213152h Packing Ring 2
213171h Packing Ring 2
214538 Groove Pin 4
...Continue on next page (page 14)
Part# Description Qty
214555h O-ring 1
214699 Bushing 1
214700 Handle Segment & 1
Bushing
216645 Pin 1
216646 Pin 1
217653 Roll Pin 2
218988 Roll Pin 1
218991 Roll Pin 1
219861 O-ring 1
220769 Coss Pin 1
221013# U-cup Packing 1
221739 Poppet 1
221742 Ball Stop Plug 1
221770 Speed Pump 1
221771h Back-up Washer 1
221772 Quad Ring 1
221809 Handle Grip 2
221820 Retaining Ring 2
221937 Release Knob 1
Part# Description Qty
Part# Description Qty

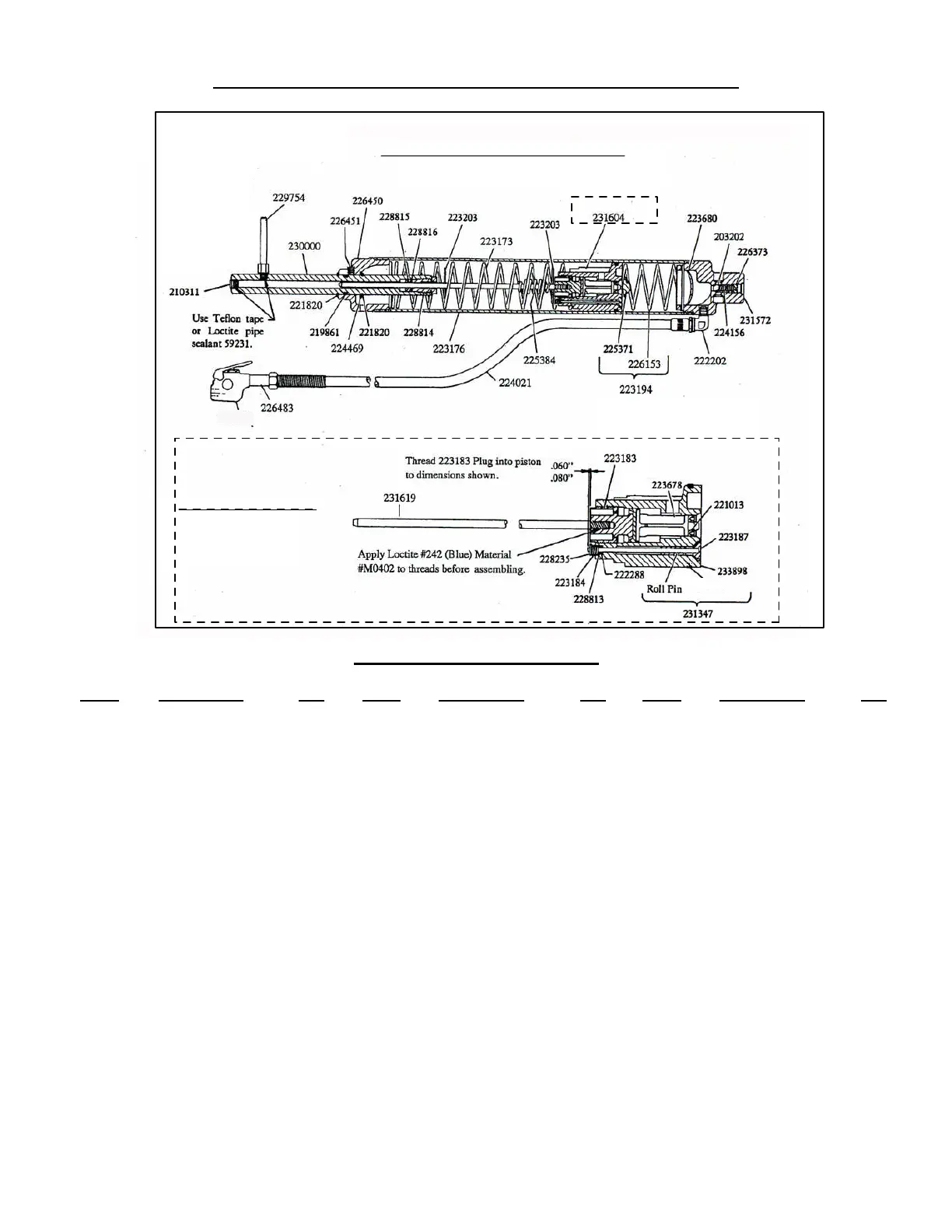

Piston Assembly
231604
Piston Assembly
229999
Air-HydraulicPump Assembly
CAUTION
Do not overtighten.
229754 tube must not
protude into I.D. pump
cylinder
Piston
35100007
