2. Reinstall the 4” Aluminum End Cap with the following steps:
Clean the O-ring and make sure that it is free of any debris or damage.
Clean the O-Ring Flange (4” Series) and make sure that the O-ring groove is free of any debris or damage.
Apply Silicone grease to the O-ring.
Install face seal O-ring onto the O-Ring Flange (4” Series).
Apply one drop of threadlocker to each of the M3x12 screws. Roll the screws around on a paper towel to evenly spread
the threadlocker and to remove excess threadlocker.
Install Aluminum End Cap with 14 Holes with all Cable Penetrators and Blank Penetrators installed onto the O-Ring
Flange (4” Series). Do not fully tighten any screws when rst installing them; it may cause the O-ring to slip out of its

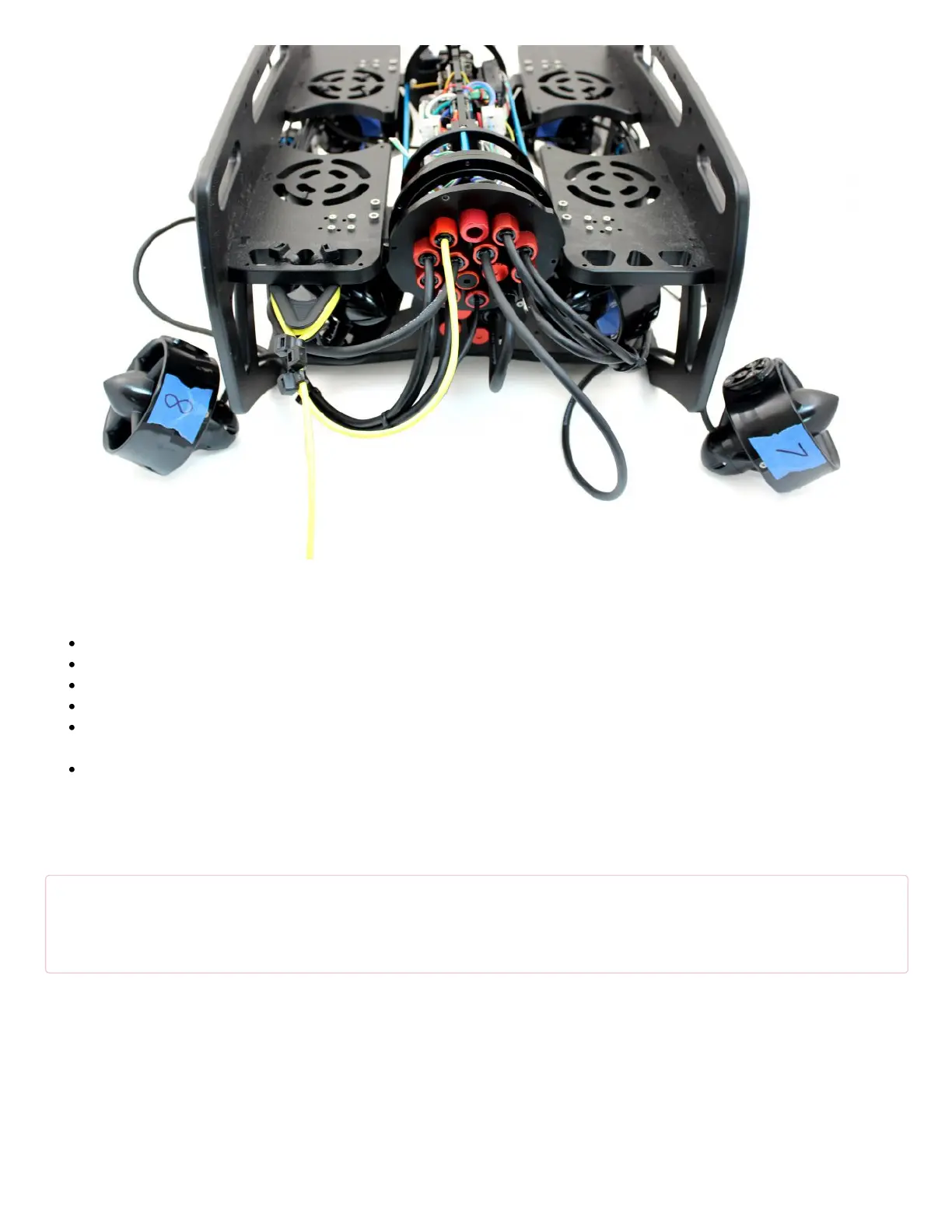

groove. The end cap’s orientation when installed should match the image below. Make sure that the clips are oriented
correctly. One should be just right of the Thruster 3 penetrator, and the other should be just left of the Thruster 4
penetrator.
3. Install thrusters 5, 6, 7 and 8, using the M3x12 screws on the outside of the side panels. Tighten the screws so that
they indent the frame slightly.
DO NOT use threadlocker unless you have threadlocker rated for use with polycarbonate.
