Installing the Penetrators
To install the Penetrators, you will need the following parts and tools:
• 1 x Cable Penetrator Nut (Black for Standard Tether/Red for Slim Tether), and O-ring
from one end of the Tether
• 6 x Cable Penetrator Nut (red), and O-ring from bag inside each Thruster tube
packages
• (Optional if no Lumens) 1 x Cable Penetrator Nut (red) and O-ring from spares bag
• 1 x Silicone Grease - 10g Tube
• 1 x Aluminium End Cap with 14 Holes w/ 3 Cable Penetrator Blanks, 1 Bar30 Pressure
Sensor, 1 Enclosure Vent and Plug, and 1 power cable installed
• 3 x T200 with counter-clockwise thrusters
• 3 x T200 with clockwise thrusters
• 1 x Set of Lumen lights (optional)
• 1 x Fathom ROV Tether
• 1 x Penetrator Wrench

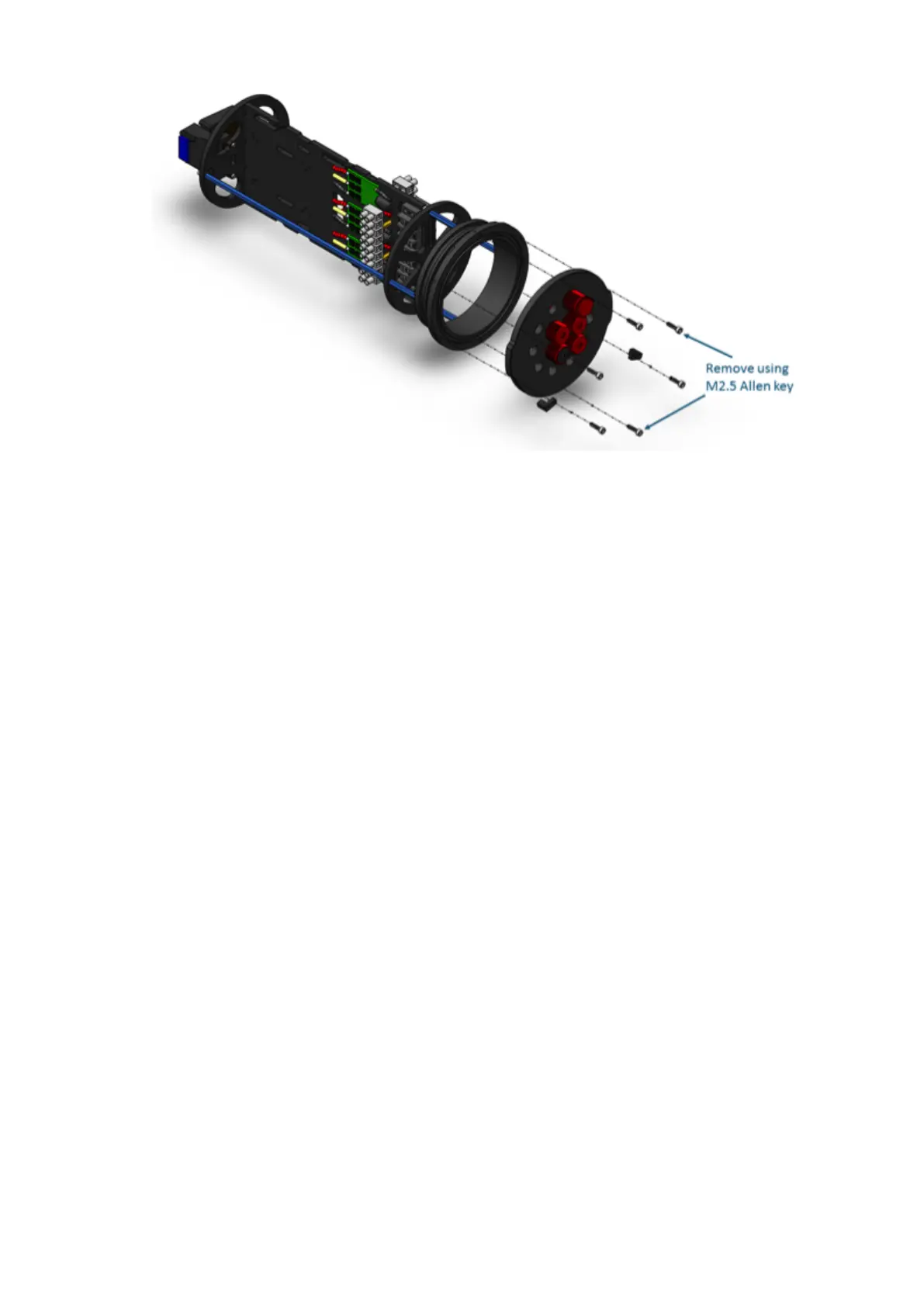

The Aluminium End Cap with 14 Holes comes with 3 Cable Penetrator Blanks, 1 Bar30
Pressure Sensor, 1 Enclosure Vent and Plug, and 1 power cable installed.
