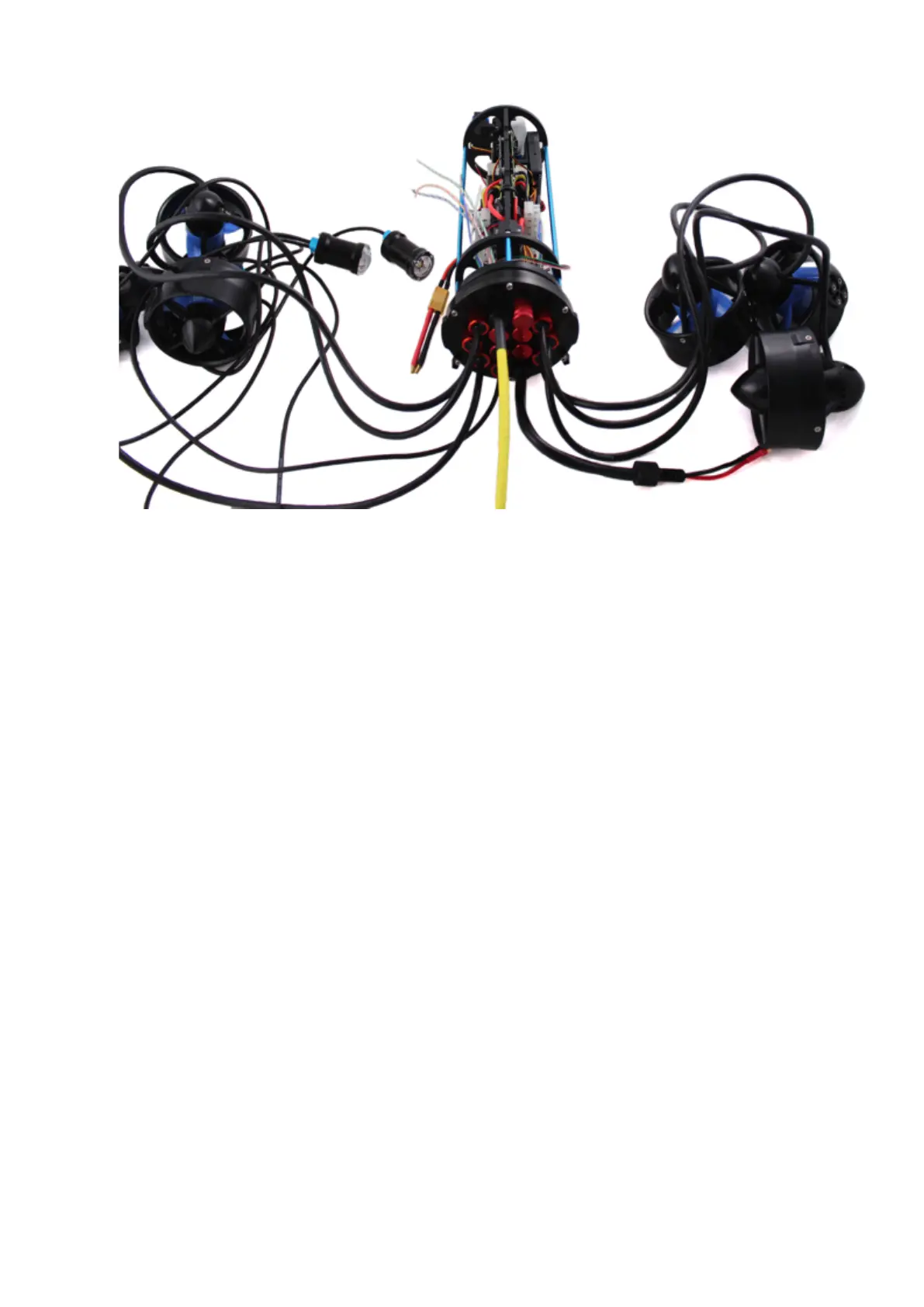

Finishing the Battery Enclosure
To complete the assembly of the battery enclosure, you need the following parts and
tools:
• 1 x Bag labelled “Extra Blank Penetrators [2]”
• 1 x Silicone Grease - 10g Tube
• 1 x End Cap with 4 Holes (3” Series)
• 1 x Penetrator wrench
• 1 x XT90 to 3.5 mm bullet connector adapter
• 1 x 1.5 inch piece of heat shrink
• 1 x Heat gun, hairdryer, or lighter
1. Apply silicone grease to the O-ring.
2. Install the O-ring onto the battery power cable penetrator.
3. Install the battery power cable penetrator into the opening in the battery end cap.
4. Install one Cable Penetrator Nut (Red) on to the battery power cable penetrator and
tighten with penetrator wrench.
5. Place the 1.5 inch long piece of black heat shrink over the end of the battery power
cable penetrator.
6. Apply heat to the heat shrink using your heat gun, hairdryer, or lighter until the heat
shrink is firmly attached to the penetrator and snug to the two wires. You should be
able to see the threads in the penetrator through the heat shrink.
