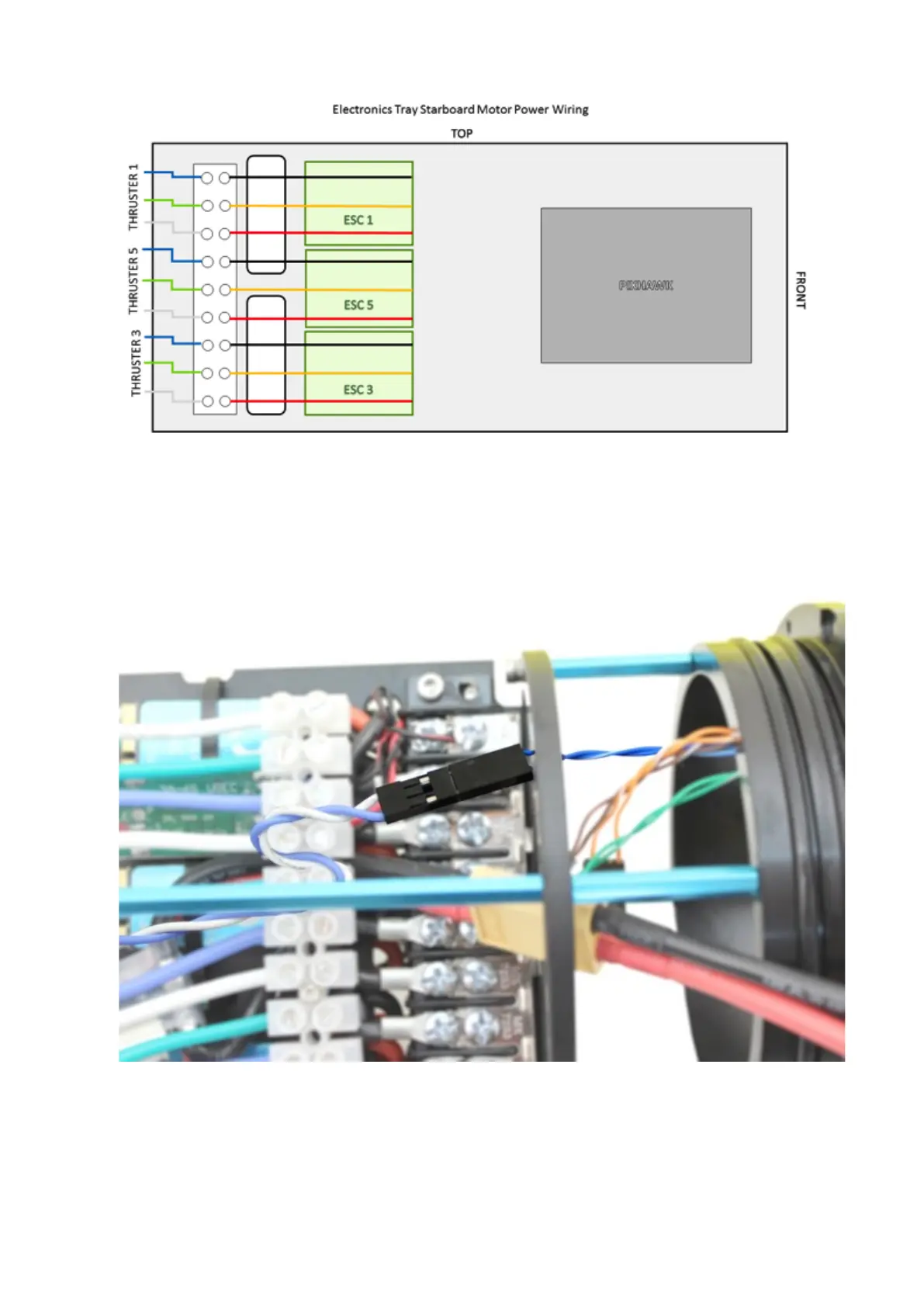

4. Connect the female tether wire connector with BLUE and WHITE wires to the
extension cable that is connected to the Fathom-X Tether Interface Board. The other 6
wires can do not need to be connected to anything the operate the ROV. They are for
future expansion.
