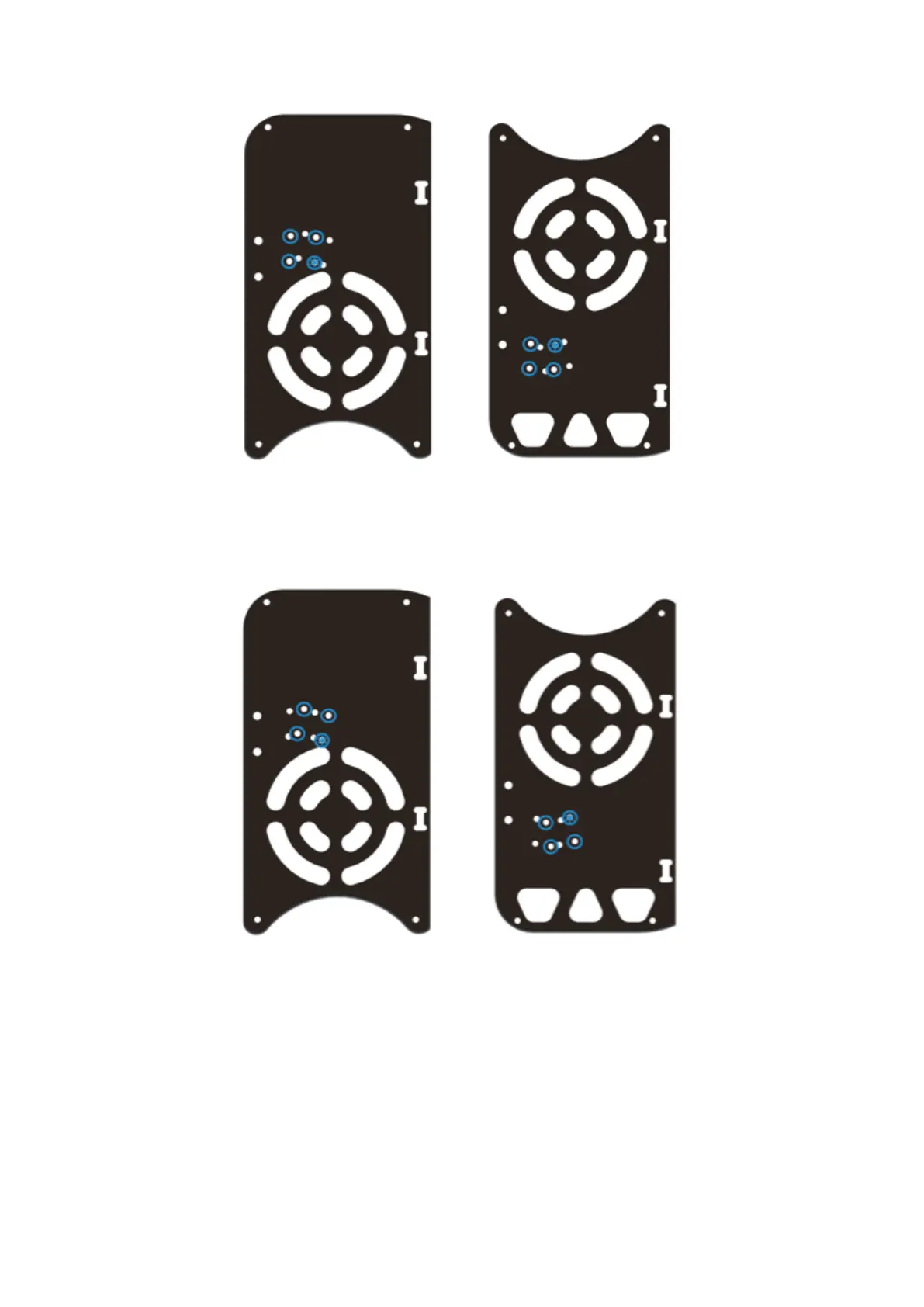

To mount the thrusters at 30° use the holes shown in the pictures below. The hole with the
asterisk is the hole that should be closest to the nose cone on the thruster.
For the sake of clarity, the hole with the asterisk on the thruster shown below is the hole
that is closest to the nose cone (see next diagram).
