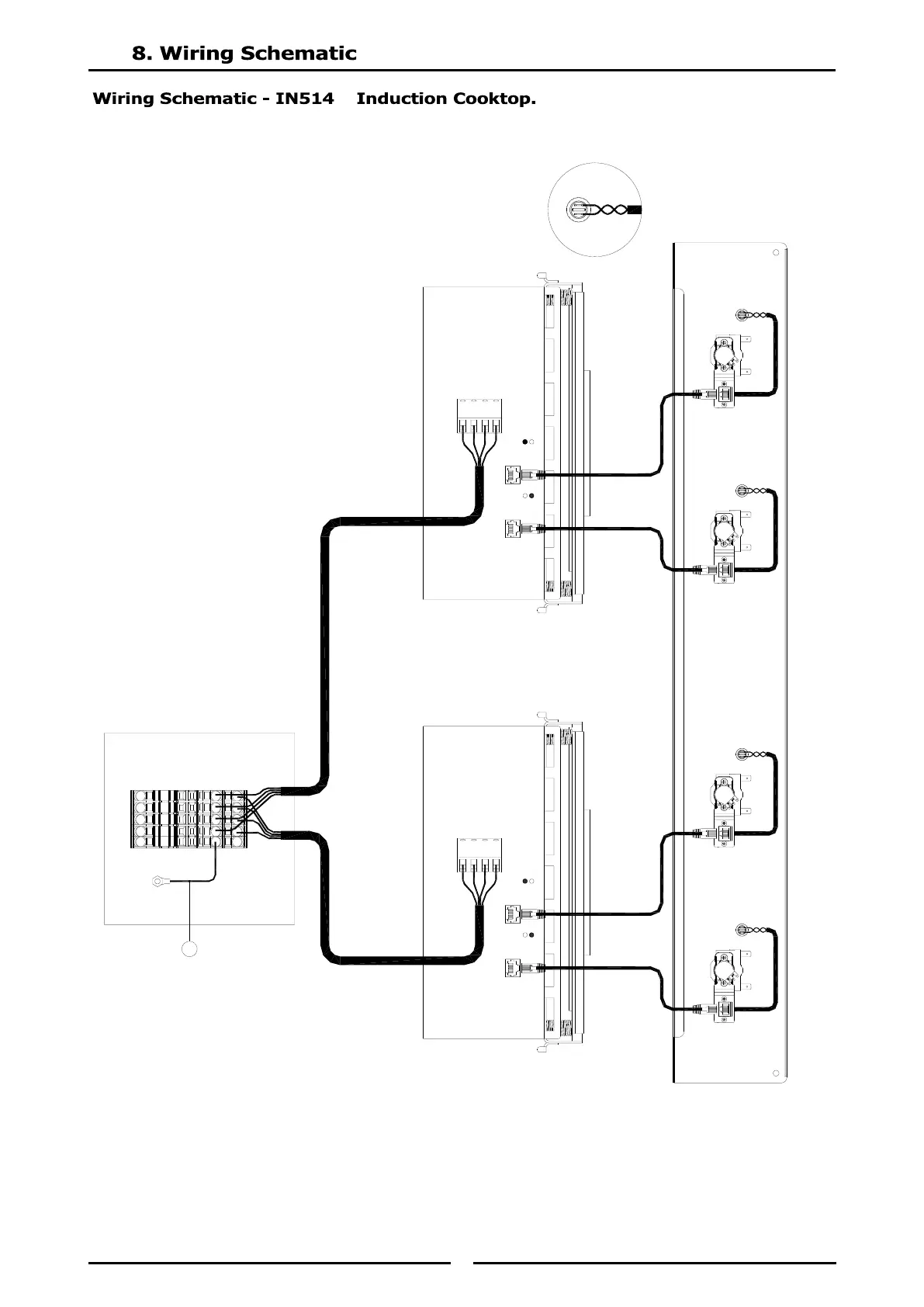

Blue Seal Evolution Series - IN514 Series Wiring Schematic

34
L1
L2
L3
PE
L1 L2 L3
PE
Control F1
Control F2
FRONT
REAR
3.5 / 5.0kW 3 PHASE FOUR COILS
L1 L2 L3
PE
Control F1
Control F2
FRONT
REAR
248362 GENERATOR CONNECTION CABLE SHORT
248421 GENERATOR CONNECTION CABLE LONG
EARTH STUD
FIT RJ45 CABLE (SUPPLIED WITH INDUCTION)
TO CONTROLS AND GENERATORS
CONNECT CONTROL WIRES
(GRAY / VIOLET) TO LED'S (4)
1
248439 10mm² GRAY x 3 248441 10mm² PE x 1 248442 10mm² END PLATE 248449 MARKER L1 248450 MARKER L2 248451 MARKER L3 248453 MARKER PE
