Blue Seal turbofan E311 - User Manual

Blue Seal turbofan E311
57 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
-1-
Revision 5/F3534
© Moffat Ltd, April 2005

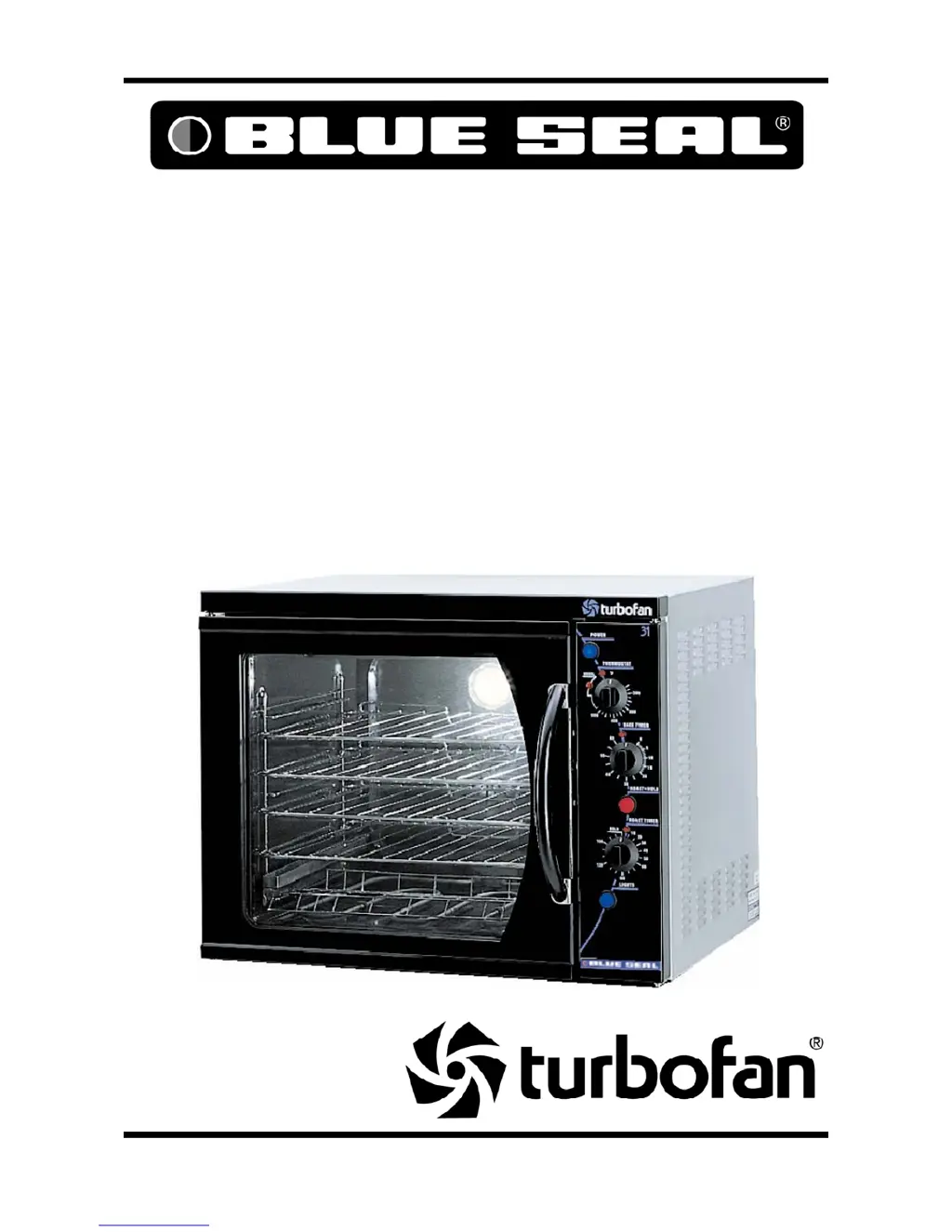

Turbofan Convection Oven
SERVICE
MANUAL
E311 / E311MS
CONVECTION OVEN

Table of Contents

Questions and Answers

  • M
    Michelle OwensAug 20, 2025
    Why won't my Blue Seal Convection Oven start?
    • J
      john01Aug 20, 2025
      If your Blue Seal Convection Oven won't start, several factors could be the cause. First, check that the mains isolating switch on the wall, circuit breaker, or fuses are turned 'on' at the power board. Next, ensure the power switch on the oven is depressed and illuminated. Verify that the electrical supply is correct. If these steps don't resolve the issue, the power switch on the unit may be faulty and need replacement.
  • C
    carlsondevonAug 22, 2025
    What to do if my Blue Seal Convection Oven has no heat?
    • K
      Kelsey GuerreroAug 22, 2025
      If your Blue Seal Convection Oven isn't heating up, the power relay may be faulty (only on models from S/N 232054). Another possible cause is a faulty hold relay or mini contactor, or the thermostat could be defective. In each of these cases, the faulty component needs to be replaced.
  • B
    Bryan WolfeAug 25, 2025
    Why is the fan not working in my Blue Seal turbofan E311 Convection Oven?
    • D
      Dorothy HuntAug 25, 2025
      If the fan in your Blue Seal Convection Oven isn't working, it could be due to several reasons. Ensure the door is fully closed. The door microswitch might be out of adjustment or faulty and need adjustment or replacement. The fan motor itself could be faulty and require replacement. Finally, check for any loose wiring and tighten it.
  • K
    Kenneth ReevesAug 26, 2025
    Why is there no temperature control in my Blue Seal Convection Oven?
    • S
      stephanierodriguezAug 27, 2025
      If you're experiencing a lack of temperature control in your Blue Seal Convection Oven, the thermostat is likely faulty and needs to be replaced.
  • L
    Linda HammondAug 28, 2025
    What to do if my Blue Seal Convection Oven is recovering slowly?
    • W
      wduffyAug 28, 2025
      If your Blue Seal Convection Oven is experiencing slow recovery times, consider the following: * Ensure the oven is not in ‘Roast ‘n Hold’ mode by switching it off. * Reduce the oven loading if it is overloaded. * Verify the electrical supply matches the rating plate voltage. * Check the fan operation. * Correct the thermostat calibration if needed. * Address any faults with the heating element(s).
  • L
    Larry JacksonAug 30, 2025
    Why is there no water injection or steam in my Blue Seal turbofan E311 (US/CAN only)?
    • E
      Erin MooreAug 30, 2025
      If your Blue Seal Convection Oven (US/CAN only) isn't injecting water or producing steam, first, make sure the water supply is turned on. The oven water nozzle might be blocked and require cleaning or replacement. There could also be a fault with the water valve or steam switch, requiring service or replacement.
  • D
    Donald WongSep 1, 2025
    What to do if my Blue Seal turbofan E311 has continuous water flow from the nozzle (US/CAN only)?
    • G
      garciamelissaSep 1, 2025
      If water continuously flows from the nozzle of your Blue Seal Convection Oven (US/CAN only), the cause depends on whether the oven is on or off. If it happens only when the oven is on, there's likely an electrical fault that needs correction. If it occurs regardless of whether the oven is on or off, there's probably a fault with the water valve, requiring service or replacement.
  • D
    David WoodsSep 2, 2025
    How to fix a Blue Seal turbofan E311 Convection Oven 60 minute timer that won't time down?
    • J
      jennifer35Sep 2, 2025
      If the 60-minute timer on your Blue Seal Convection Oven isn't timing down, is inaccurate below 20 minutes, has no time up buzzer, or has no time up indicator, the following could be the cause: * The timer itself may be faulty and need replacement. * For settings below 20 minutes, always rotate the timer past 20 minutes, then back to the desired time. * The zero (time up) position may not be set correctly, requiring replacement. * The buzzer may be faulty and need replacement. * The timer may not be switching on the buzzer, requiring replacement. * The indicator may be faulty and need replacement.
  • S
    Sheryl EdwardsSep 4, 2025
    Why is the oven light not illuminating in my Blue Seal turbofan E311?
    • A
      Amber WalshSep 4, 2025
      If the oven light in your Blue Seal Convection Oven isn't illuminating, whether the door is open or closed, the bulb may be blown and need replacement. There could also be no power to the light, or the light switch may be faulty, both requiring replacement.
  • A
    Andrea FloresSep 6, 2025
    How to fix a Blue Seal turbofan E311 Convection Oven door that does not close?
    • C
      Cassandra ScottSep 6, 2025
      If the door of your Blue Seal Convection Oven isn't closing properly, check if a tray is obstructing it and correctly position the tray in the rack. Also, inspect the door seal for any obstructions and correctly install the door seal. Ensure the door handle is installed correctly. The door ball catch setting may be incorrect and need adjustment, or the door pivot bushes/pins may be worn and require replacement.

Summary

Specifications

Installation

Operation

Maintenance

Trouble Shooting Guide

Service Procedures

Fault Diagnosis

Guides on identifying and diagnosing operational faults.

Replacement

Step-by-step instructions for replacing various oven parts.

Adjustment; Calibration

Explains procedures for adjusting and calibrating oven settings.

Electrical Circuit Schematics

Electrical Wiring Diagrams

Blue Seal turbofan E311 Specifications

General IconGeneral
BrandBlue Seal
Modelturbofan E311
CategoryConvection Oven
LanguageEnglish
