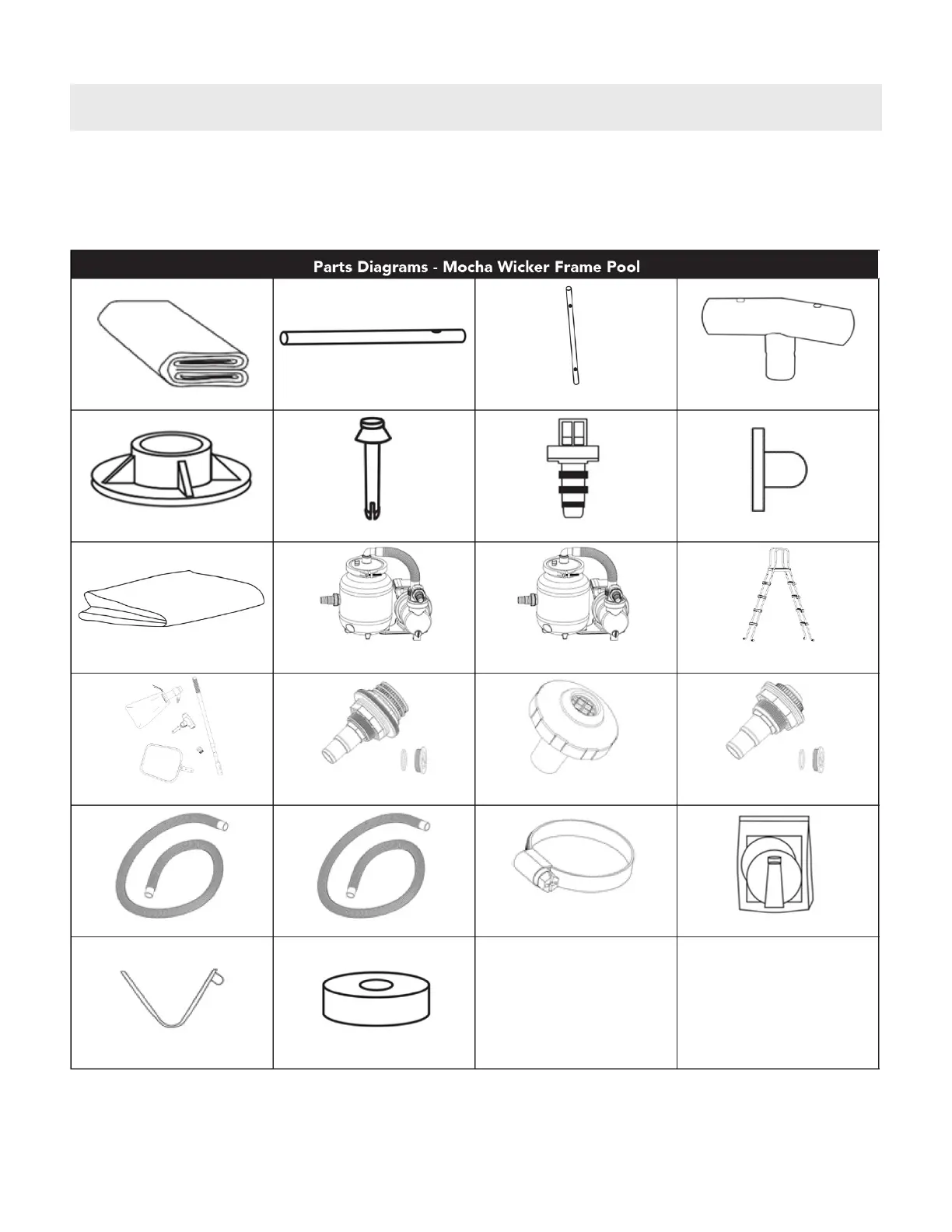

MOCHA WICKER - PARTS DIAGRAM (Not to scale)
Contents vary by package and depth. See parts diagram for specic details of what is in your pack-
age. Check all parts and ensure they are present and undamaged before assembly. Images and ob-
jects may differ. Report missing or damaged parts immediately to have them replaced. For damaged
or replacement parts, contact Blue Wave
®
Customer Service at 1-800-759-0977.
1. Pool Liner
5. Vertical Leg Cap
9. Pool Cover
13. Water Intake Fitting w/
Water Plug
15.2 Connection Hose (1.50”)
19. Drain Cap
14.2 Water Return Fitting
(1.25” & 1.50”) for 24’ Pools
17. Repair Patch
2. Horizontal Beam
6. Pin & Grommet Sets
10.1 EZ Clean 200 Cartridge
Filter (1.25” Return Fitting)*
3. Vertical Leg
7. Drain Connector
10.2 EZ Clean 200 Cartridge
Filter (1.5” Return Fitting)*
4. T-tting
8. Water Stop
11. A-Frame Ladder for 52”
Pool*
12. Maintenance Kit*
15.1 Connection Hose (1.25”)
18. Horizontal V-Spring Clips
14.1 Water Return Fitting
(1.25”) for 15’ and 18’ Pools
16. Hose Clamps for 18’ and
24’ Pools
*NOTE: The Filter System, Ladder, and Maintenance Kits all come with their own separate instruction
manuals.
