3.1 PARTS LIST & DIAGRAM
# Part Description QTY. MFG No. BW No. For Model #
1
AIR VALVE SCREW 1 ACF180201 NEP20255 NBP6156
2
AIR VALVE O-RING 1 ACF180202 NEP20256 NBP6156
3
PLASTIC NUT 1 ACF180203 NEP20257 NBP6156
4
TOP COVER 1 ACF180204 NEP20258 NBP6156
5
TOP COVER O-RING 1 ACF180205 NEP20259 NBP6156
6
FILTER MEDIA COTTONTAIL BALLS 1 Aqualoon ATX NE4509 NBP6156
7
FOAM 1 ACF180207 NEP20260 NBP6156
8
BODY 1 ACF180208 NEP20261 NBP6156
9
PUMP O-RING 2 ACF180209 NEP20262 NBP6156
10
PUMP 1 ACF180210 NEP20263 NBP6156
11
SEAL 2 ACF180211 NEP20264 NBP6156
12
PLASTIC CLAMP 4 ACF180212 NEP20265 NBP6156
13
PLASTIC HOSE 2 ACF180213 NEP20266 NBP6156
14
WATER RETURN FITTING KIT 1.25” 1 91194 NBP6160 NBP6156
15
WATER INTAKE FITTING KIT 1.25”/1.5” 1 91195 NBP6159 NBP6156

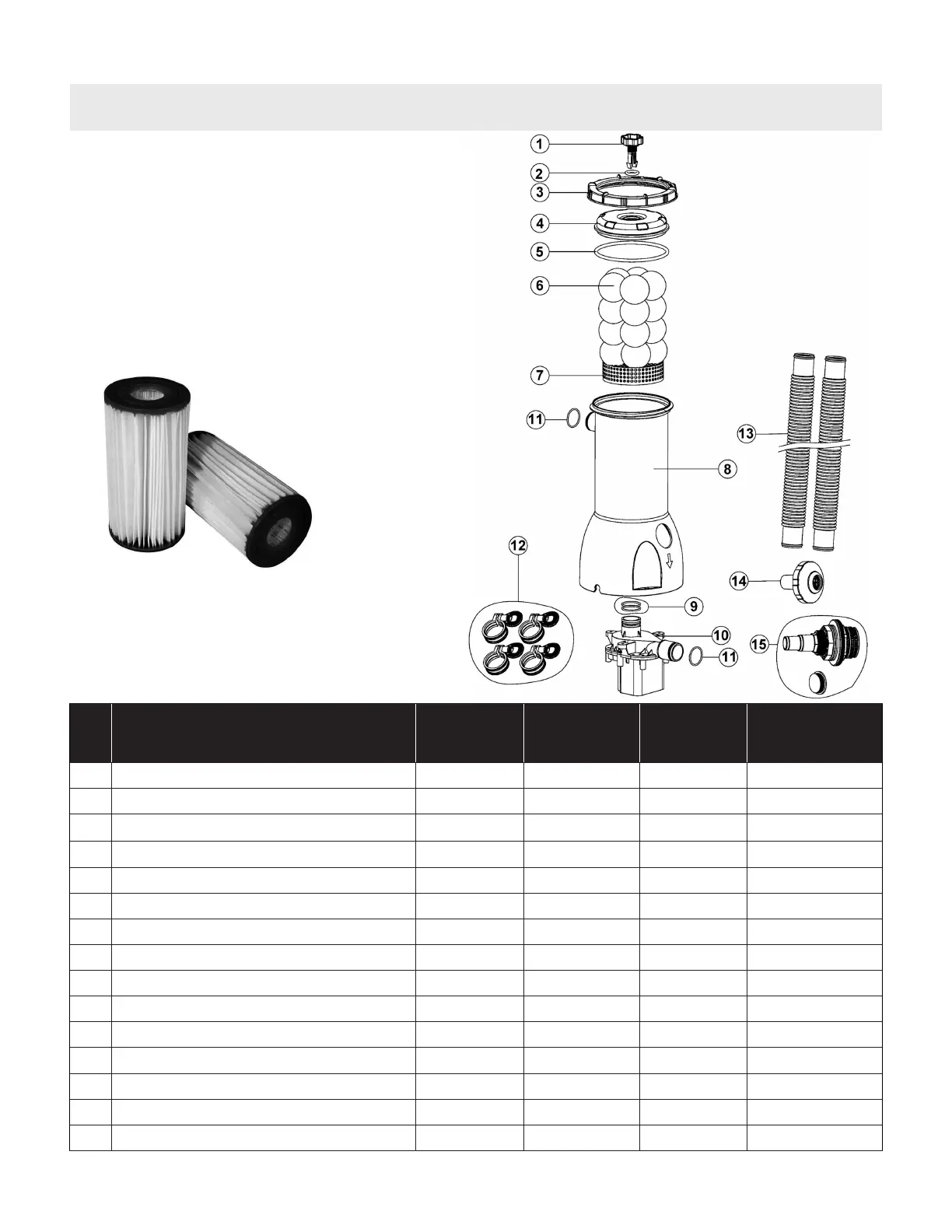

EASY CLEAN 100 FILTER SYSTEM
NOTE: This ltration system is
also compatible with Type A and
Type C cartridges.
(Diagram 2)
(Diagram 1)
