BLUM AVENTOS HF Manual

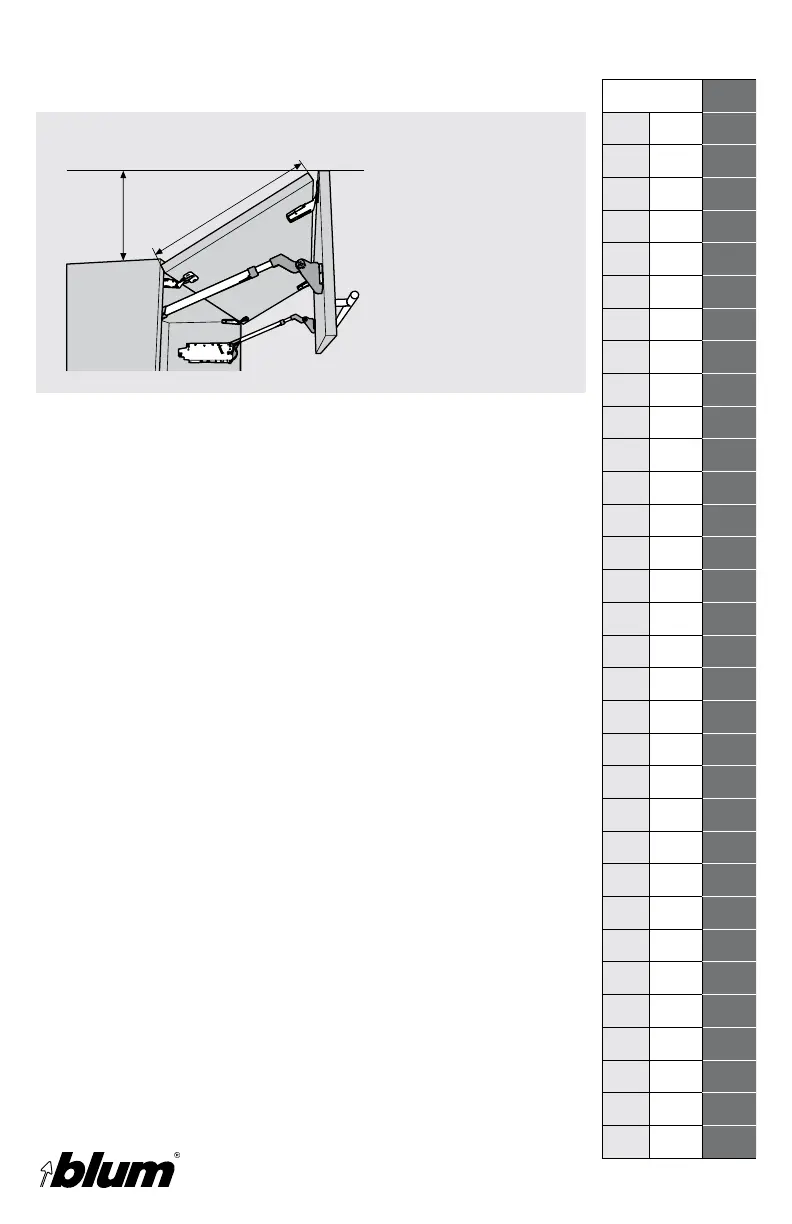

Door clearance above cabinet
Inch mm
1
/
32
.031 1
1
/
16
.063 1.5
3
/
32
.094 2
1
/
8
.125 3
5
/
32
.156 4
3
/
16
.188 5
7
/
32
.219 5.5
1
/
4
.25 6
9
/
32
.281 7
5
/
16
.313 8
11
/
32
.344 9
3
/
8
.375 9.5
13
/
32
.406 10
7
/
16
.438 11
15
/
32
.469 12
1
/
2
.5 13
17
/
32
.531 13.5
9
/
16
.563 14
19
/
32
.594 15
5
/
8
.625 16
21
/
32
.656 17
11
/
16
.688 17.5
23
/
32
.719 18
3
/
4
.75 19
25
/
32
.781 20
13
/
16
.813 20.5
27
/
32
.844 21
7
/
8
.875 22
29
/
32
.906 23
15
/
16
.938 24
31
/
32
.969 24.5
1
1 25.4
Other information
INST-AVT04
Blum, Inc.
7733 Old Plank Rd.
Stanley, NC 864
toll free 800-438-6788
local 704-87-345
fax 704-87-0799
internet www.blum.com
www.dynamicspace.us
Z
TDH
Z = TDH x .44 + 3

BLUM AVENTOS HF Specifications

General

Type	Bi-fold lift system
Cabinet Width	Up to 1800 mm
Soft Close	Yes
Adjustment	3-dimensional front adjustment
Application	Wall cabinet
Motion Technology	BLUMOTION, TIP-ON, SERVO-DRIVE
Material	Steel
Assembly	Tool-free assembly
Cabinet Height	480 mm to 1040 mm
Opening Angle	90°
