P-04
Model A Installation
Put the magnetic handle cover (B-1) back onto the handle.
Test the handle. Push the internal handle down, it should operate the latch. Then touch the
fingerprint sensor on the external handle, it should light up GREEN and you should hear the
mechanism turn. Push the handle down and it should operate the latch.
Ensuring everything is working correctly, it is now okay to close the door. It is recommended to test
this from the inside, therefore you can still remove the handle if anything isn't working correctly.

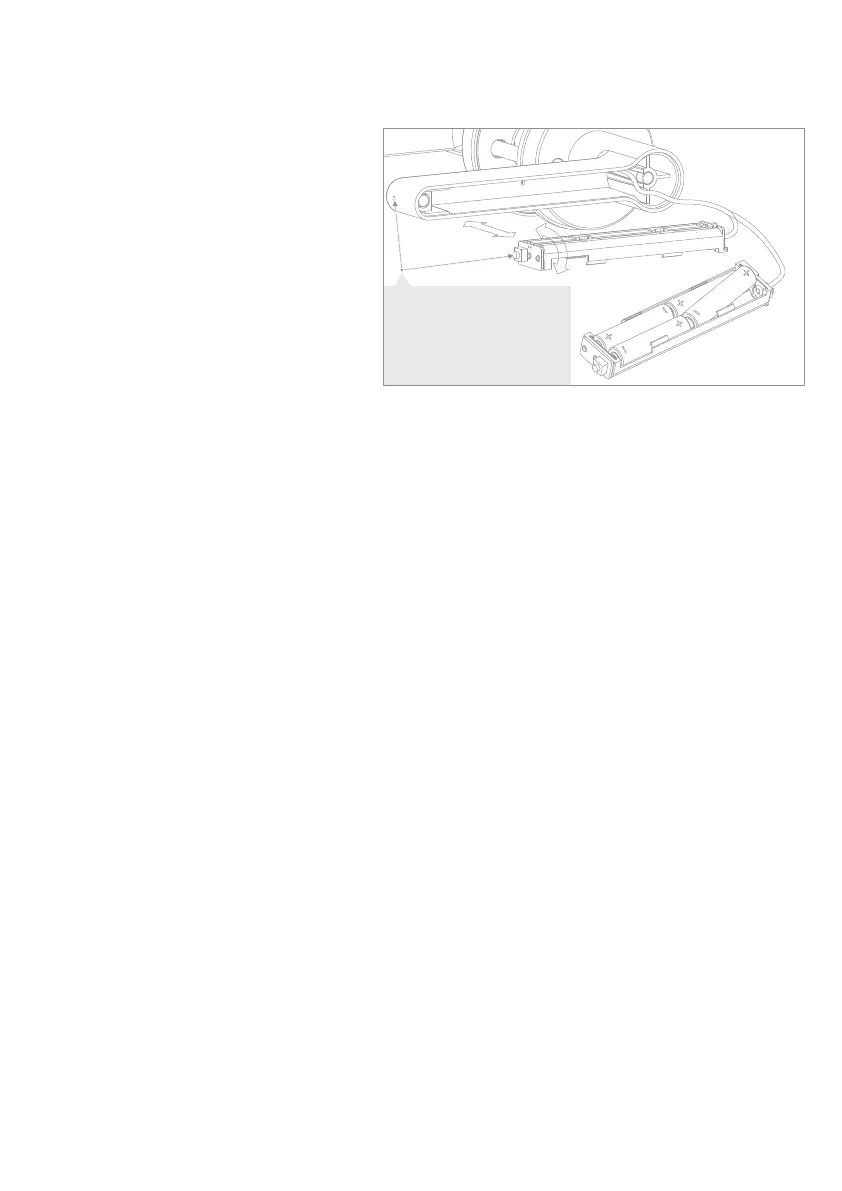

Insert 4 AAA batteries into the battery
cassette(B-2).
Connect the battery cassette (B-2) to
the wire(you will hear a beep). Then
insert the battery cassette into the
handle, ensuring that the side containing
the cable connector and setting button
goes in first.
Use the screws provided (I) and fix the internal handle to the external handle through the holes.
Screw the exposed fixing first so that you can push the handle down to fit the second screw.
Note: please make sure the
setting button's orientation
is facing the inside of the
handle and aligns with the
hole.
