HEX100ARC-KIT V2 USER MANUAL
Terminating the interconnecting HDBaseT CAT cable
It is important that the interconnecting CAT cable between the Blustream HDBaseT products is terminated using the correct RJ45
pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B
wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will
only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for your installations, especially
when running over longer distances, in areas of high EMI, or with 4K signal distribution.

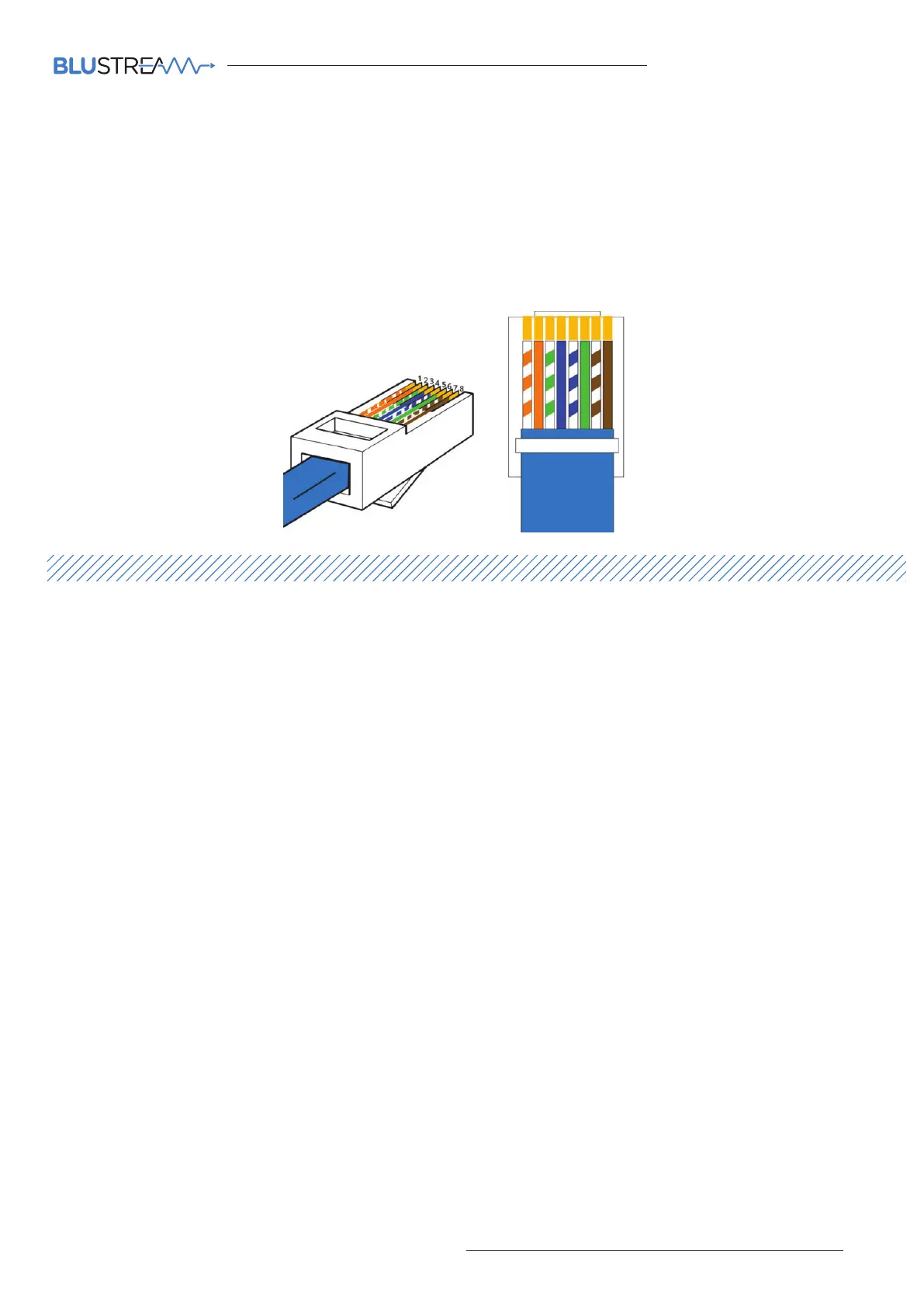

RJ45 Pin-Out
T568B
1 2 3 4 5 6 7 8
Understanding the HEX100ARC V2 HDBaseT status lights
The Blustream Matrix and HDBaseT extender solutions include status LED indicators on both the Transmitter and Receiver
products to show all connections are active and to help diagnose possible problems.
Understanding the status lights:-
Blustream HEX100ARC-TX V2:
• The Yellow HDBaseT status link light will be o when the output has been turned o or there is a problem with the HDBaseT
output.
• The Yellow HDBaseT status link light will blink when the output is on and working
• The Green HDBaseT link light will blink if there is an unstable connection between the Blustream HDBaseT Transmitter and
HDBaseT Receiver
• The Green HDBaseT link light will be lit when a there is an active HDBaseT Receiver connected to the Transmitter
• The Green HDBaseT link light will be o when a there is no connection with a HDBaseT receiver
• The HDMI link light will be o when there is no connection with a source device
• The HDMI link light will be on when there is an active connection with asource device
• The HDMI link light will be o when there is no connection with a display
• The HDMI link light will be on when there is an active connection with a display
• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT input
• The HDBaseT link light will blink if there is an unstable connection between the Blustream Transmitter and HDBaseT Receiver
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter and an active
connection is achieved with the Blustream HDBaseT Receiver.
Blustream Support department are on hand to assist with signal distribution issues should they arise - please email us at one of
the email addresses below
Blustream HEX100ARC-RX V2:
