BMB CSX-850(SE) - Page 2

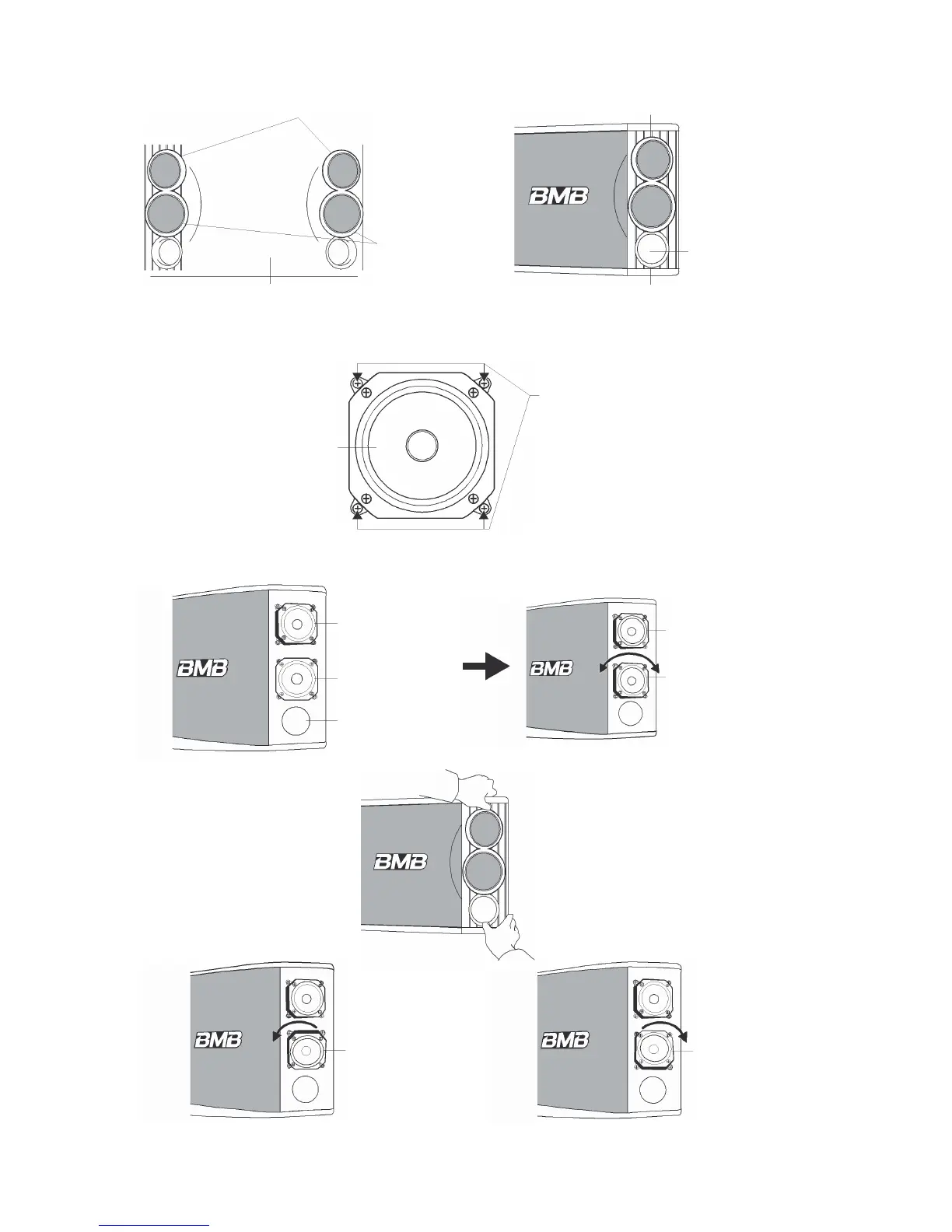

The squawker unit
Remove these
four screws.
Tweeters for high pitch sound
Woofer for deep bass
Squawkers for
midrange/high tone
Safety catch for lock
Safety catch for lock
Pull the duct
hole with a hand.
Secure the screws firmly.
Never try to move
the tweeters.
Rotate the squawkers
180 degrees so that
they are installed to
point outward.
Factory set status
Tweeters: Installed
to point significantly
outward.
Squawkers: Installed
to point a bit forward.
Duct hole
Rotate the squawkers
90 degrees counterclockwise
so that they are installed
to point downward.
Rotate the squawkers
90 degrees clockwise
so that they are installed
to point upward.
