ASSEMBLE CENTER CABANES

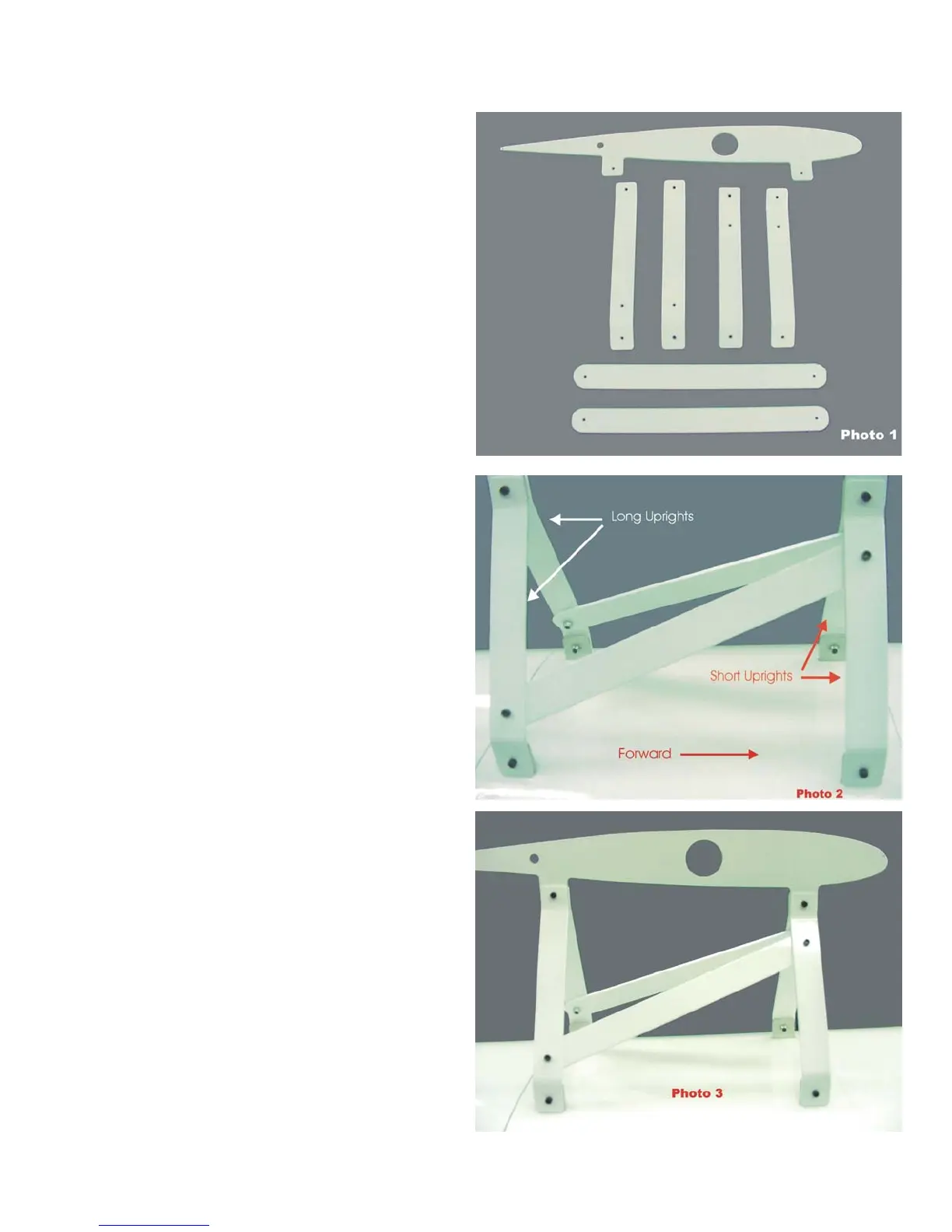

1. Refer to photos 1-3 and locate the 7 metal
cabane pieces consisting of 2 long
uprights, 2 short uprights, 2 diagonals and
1 center root rib.
2. Note that the two shorter uprights are
installed towards the front of the fuselage
while the longer uprights are installed
towards the rear. This provides the correct
amount of negative incidence for the top
wing. Also note that each upright has an
additional hole drilled towards one end.
The forward uprights have the hole
towards the top while the rear uprights
have the holes towards the bottom. See
photo 2.
3. Loosely bolt the uprights to the OUTSIDE
of the tabs that protrude through the top of
the fuselage using the supplied cap head
screws, nuts and lock washers. Be sure to
install the short uprights towards the front
of the fuse with the additional holes
towards the top and install long uprights
towards the rear with the extra holes
towards the bottom.
4. Loosely bolt the two diagonals between
the front and rear uprights as shown in the
photos. They are installed to the inside of
the uprights.
5. Install the metal root rib between the front
and rear uprights as shown in photo 3. It
is captured between the front and rear
uprights.
6. Tighten all nuts and bolts while keeping
the uprights vertical.
BME 37% Ultimate Ver 1.0
3/15/2004 Page 4
