8

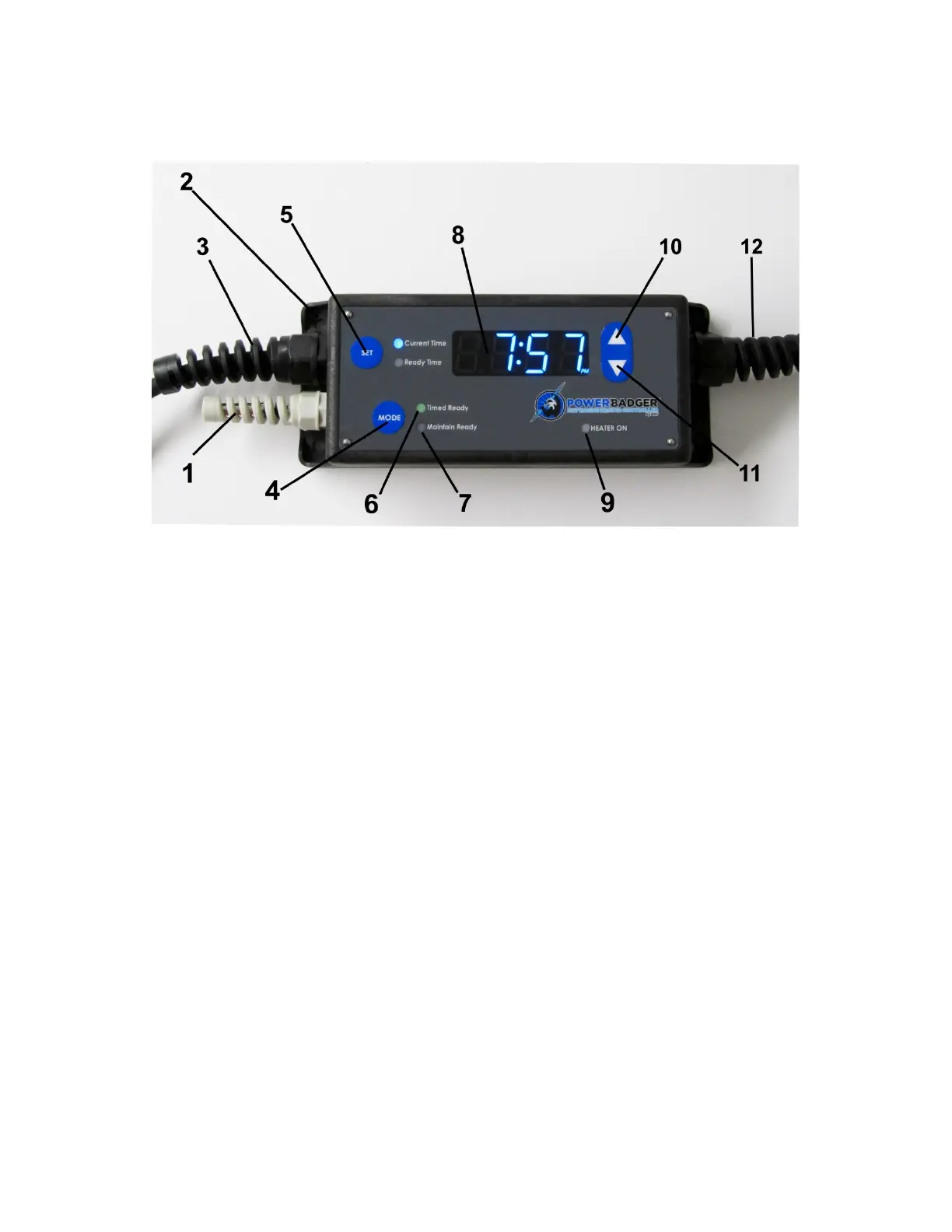

Device Map
1: Temperature sensor inside protective strainer (light colored to reduce sun heat from affecting readings)
2: Mounting holes on enclosure to screw to wall or vehicle
3: Input power cord strainer
4: Mode button; used to select operational mode of device
5: Set button; set time of day, temp units
(°F or °C), start/ready time and maintain duration time
6: Timed Ready LED; illuminated when the unit is set in timed ready mode. Display shows the
user set start/ready time (the time the device will have the engine ready to start).
7: Maintain Ready LED; illuminated when the unit is set in maintain ready mode. Display shows
current temperature.
8: Digital display
9: Heater on LED; Illuminated whenever power is being supplied to the output cord
10: Up select button; used to adjust settings in conjunction with set button
11: Down select button; used to adjust settings in conjunction with set button
12: Output power cord strainer
