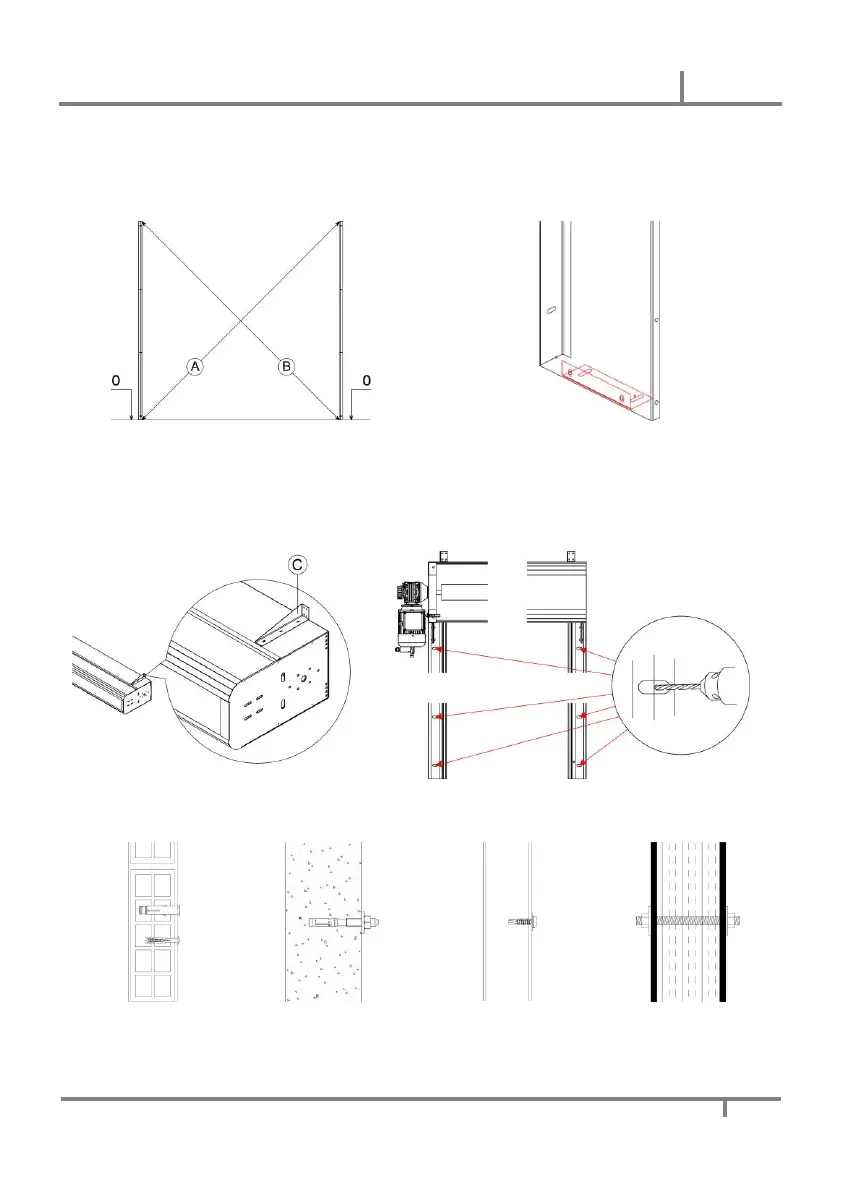

Make sure that the support surface is planar; check the geometry of the columns and the horizontality of the top
heading and proceed with the fixing as described below. (A=B ± 5mm).
Proceed with fixing the columns to the ground using the appropriate supports.
Complete the fixing using the supports provided (detail C) and with any additional anchors where necessary.
With L> 4 m support the crossbar at least every 2 m. Then perform the holes on the buttonhole axis, to then
make the appropriate final adjustments.
Fixing examples:
On brick
On concrete
On iron
On isolated plastboard
/ insulated panel
