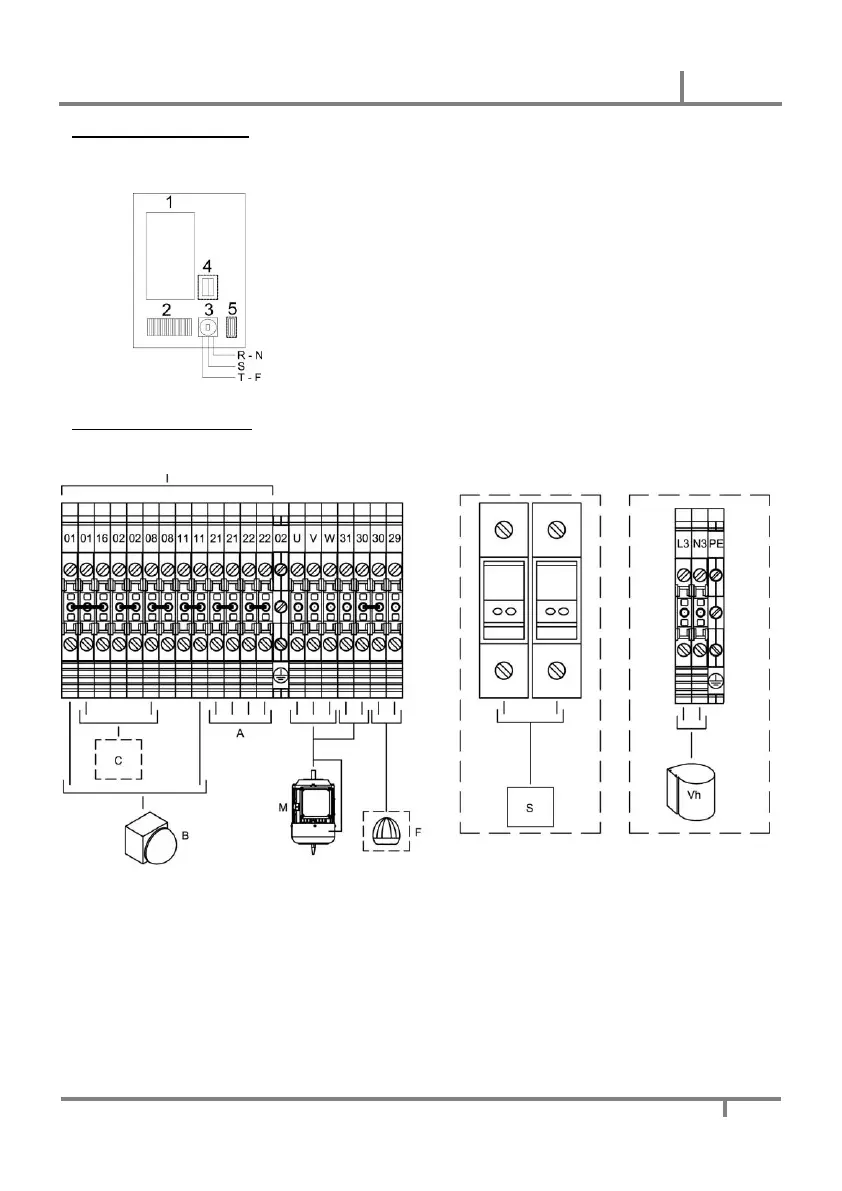

Control panel components
Frigo 2 version
1 – Control board
2 – Clamps 1
3 – Power supply / door lock
4 – Fuse group (present only with heating cables or hot blower)
5 – Clamps 2 (present only with heating cables or hot blower)
Metallic control panel clamps
A – Control card connections
F – Flashing lamp
Vh – Hot blower (optional)
B – Push button on the opposite side
M – Motor
C – Opening button
S – Heating cables (optional)
Not present on PVC panel
