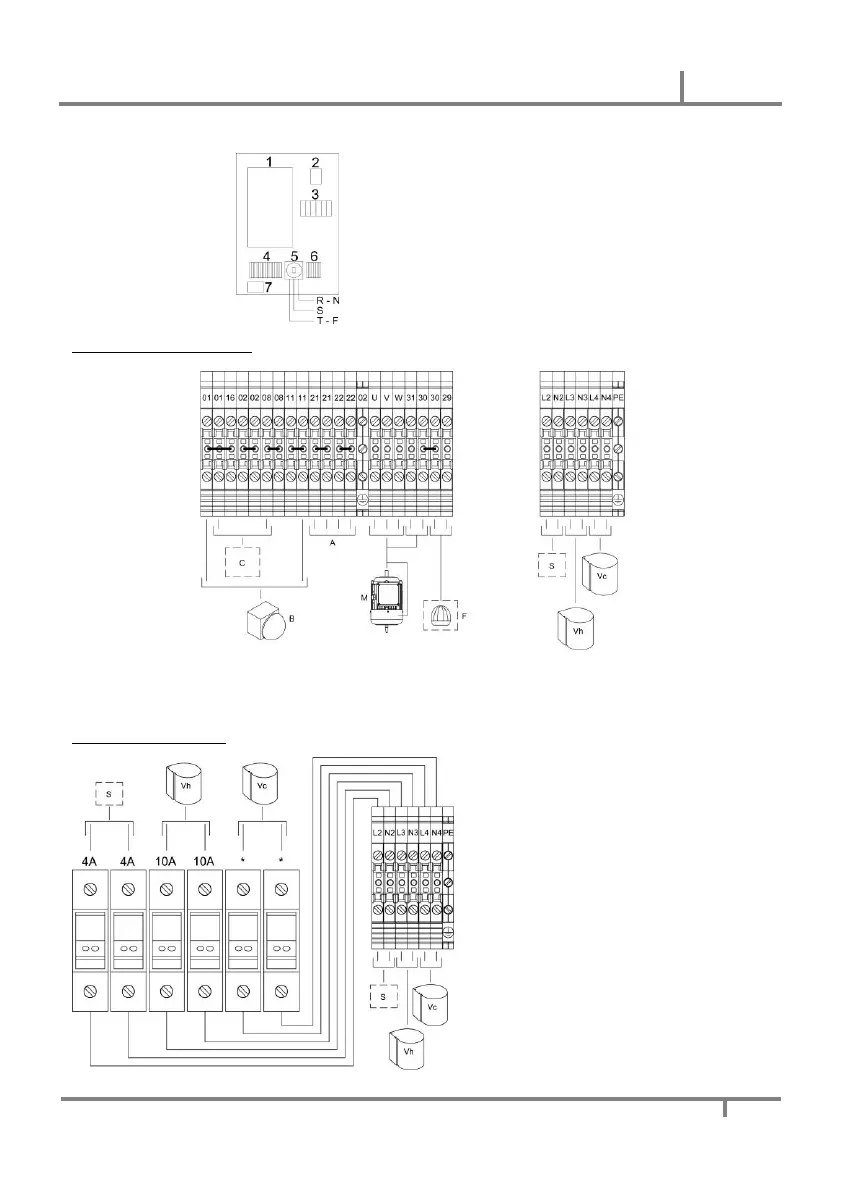

Frigo 2 AIR version
1 – Control board
2 – Contactor
3 – Fuse group
4 – Clamps 1
5 – Power supply / door lock
6 – Clamps 2
7 – Transformer
Metallic control panel clamps
A – Control card connections
F – Flashing lamp
Vh – Hot blower (optional)
B – Push button on the opposite side
M – Motor
Vc – Fan (optional)
C – Opening button
S – Heating cables (optional)
Fuses connections detail
Heating cables
4 A
Hot blower
10 A
* varies according to the number of fans
n. 4 + 4 fans
16 A
n. 6 + 6 fans
20 A
n. 8 + 8 fans
20 A
Single fan power: 350 W
MAX power hot blower: 2500 W
