BMP EUROPE Srl

Rev. 6

Installation and user manual – Dynamicroll® Frigo 2

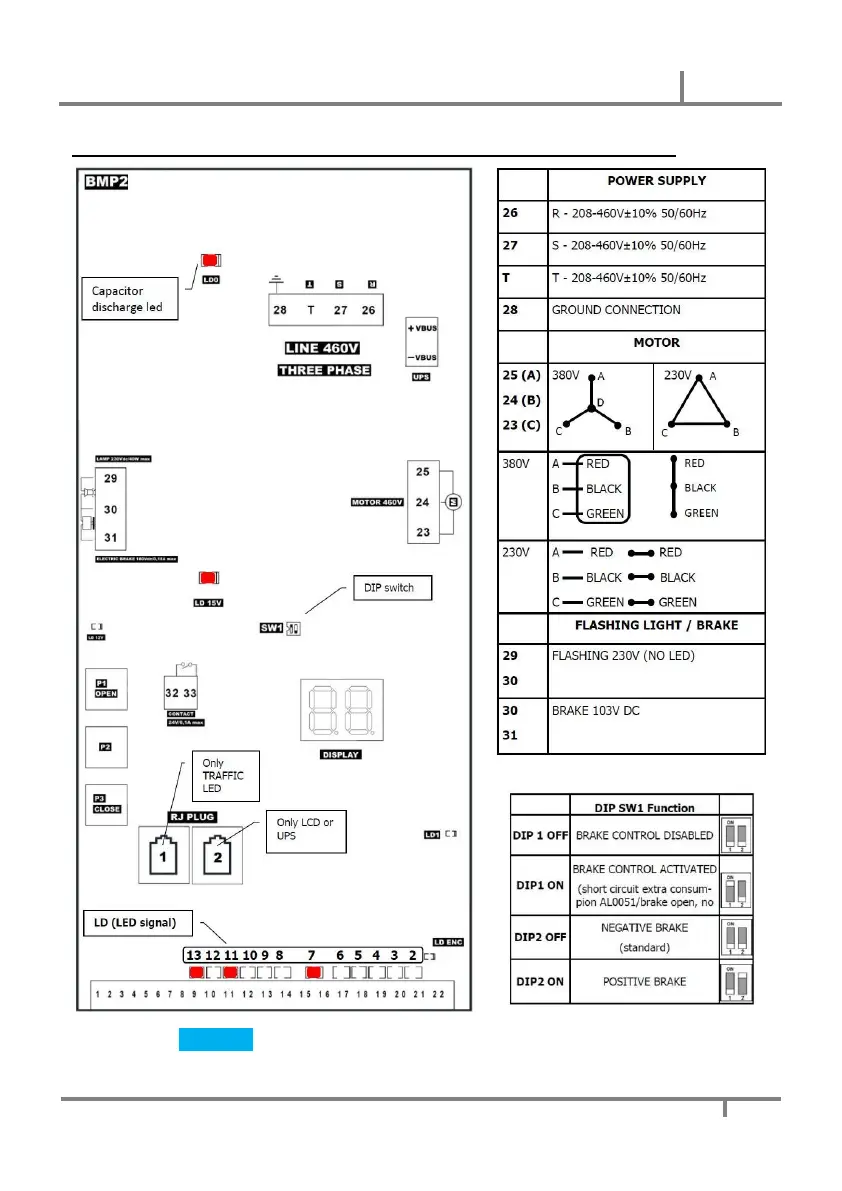

11. CONTROL BOARD

Electrical power connection - Dip Switch SW1 function and LED meaning BMP2_V04/05/06

NOTICE

Control board no longer require transformer, direct power supply

For command type see pag. 25 (OPERATING MODES)
