Heating and air-conditioning systems
70

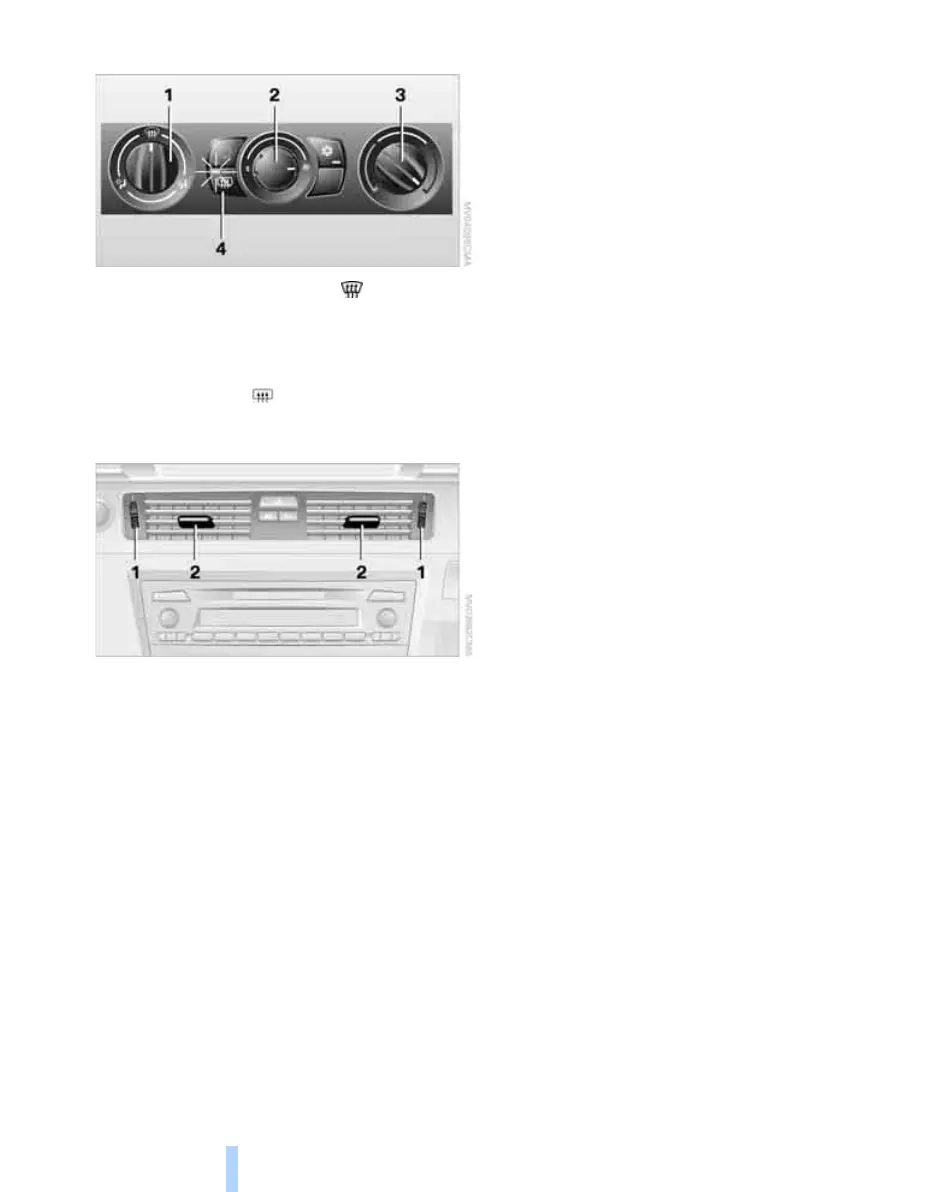

Defrosting and demisting windows
1. Air distribution 1 in position .
2. Air flow control 2 all the way to the right.
3. Temperature 3 to the right, red.
4. Switch on rear window heater 4 to defrost
the rear window .
Ventilation
1 Knurled wheels to open and close the air
outlets continuously
2 Levers for changing the direction of the air-
flow
Ventilation for cooling
Adjust the outlets so that cool air is directed
towards you, e.g. if the car's interior has
become hot.
Draught-free ventilation
Adjust the outlets so that the airflow passes the
occupants without striking their bodies directly.
Micro-filter
The micro-filter traps dust and pollen in the
incoming air. The micro-filter is changed by
BMW Service during routine maintenance
work. You can call up further information in the
Next Service indicator, see page 53.
Online Edition for Part-No. 01 41 0 159 204 - © 03/05 BMW AG
