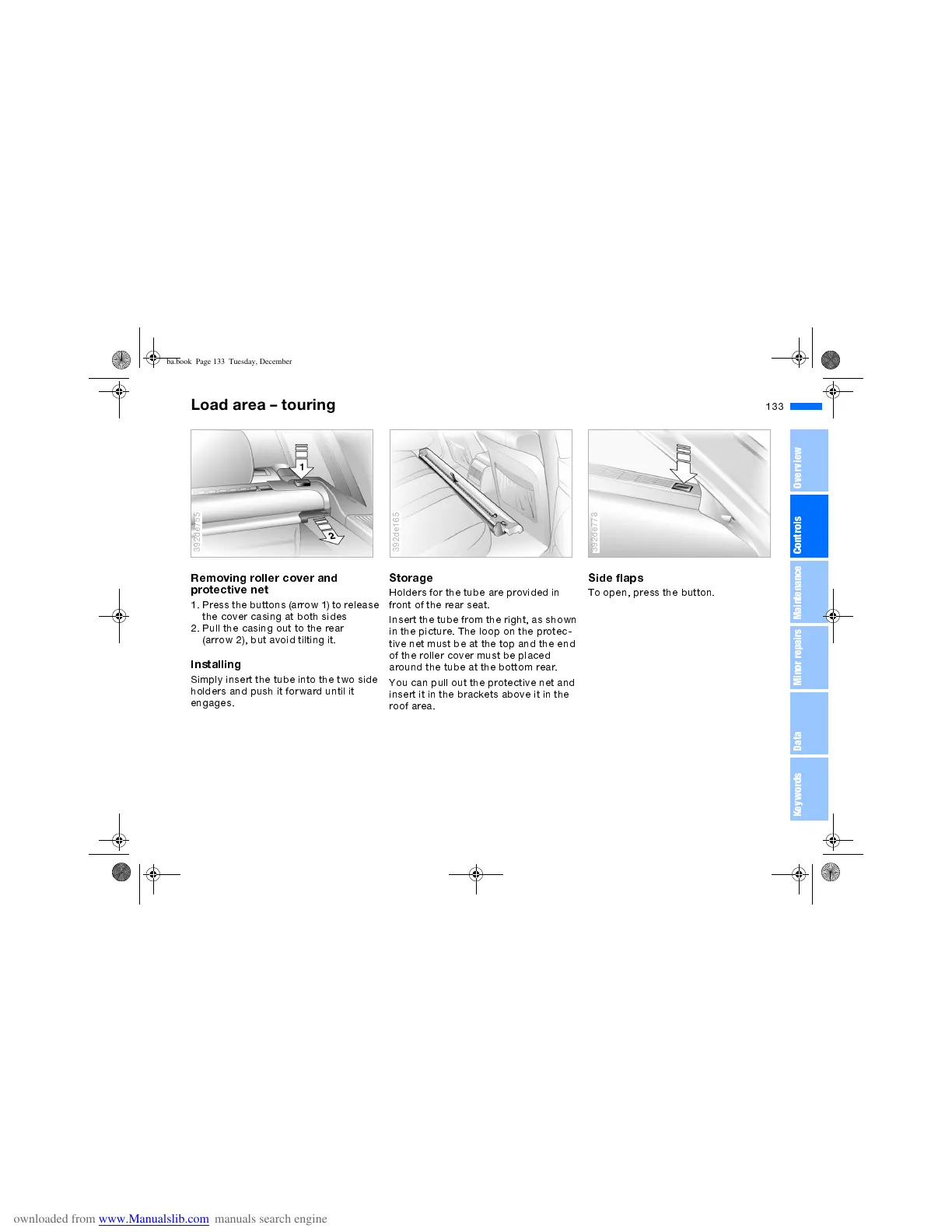

Load area touring
Removing roller cover and
protective net
1. Press the buttons (arrow 1) to release
the cover casing at both sides
2. Pull the casing out to the rear
(arrow 2), but avoid tilting it.
Installing
Simply insert the tube into the two side
holders and push it forward until it
engages.
392de755
Storage
Holders for the tube are provided in
front of the rear seat.
Insert the tube from the right, as shown
in the picture. The loop on the protec-
tive net must be at the top and the end
of the roller cover must be placed
around the tube at the bottom rear.
You can pull out the protective net and
insert it in the brackets above it in the
roof area.
392de165
Side flaps
To open, press the button.
