Load area touring

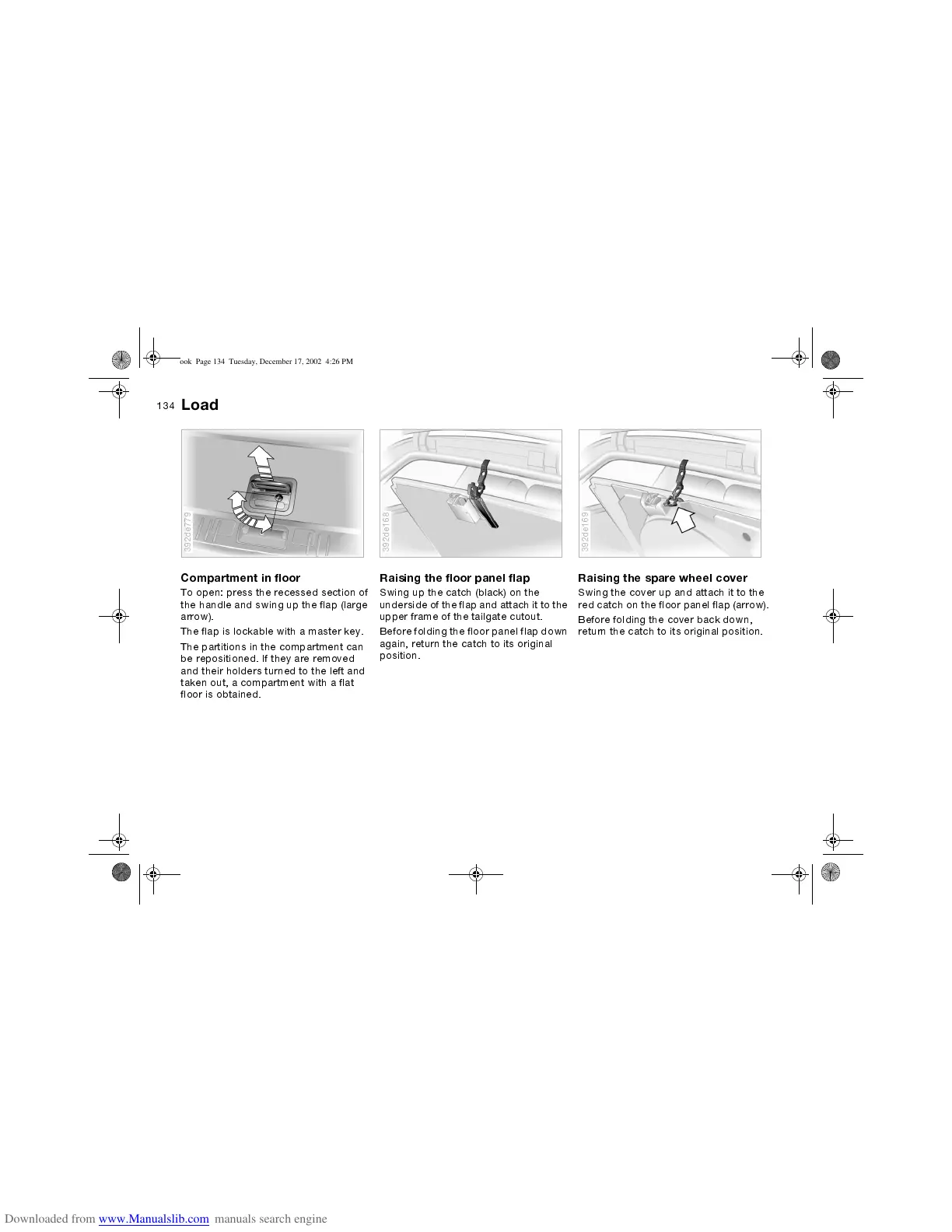

Compartment in floor
To open: press the recessed section of
the handle and swing up the flap (large
arrow).
The flap is lockable with a master key.
The partitions in the compartment can
be repositioned. If they are removed
and their holders turned to the left and
taken out, a compartment with a flat
floor is obtained.
392de779
Raising the floor panel flap
Swing up the catch (black) on the
underside of the flap and attach it to the
upper frame of the tailgate cutout.
Before folding the floor panel flap down
again, return the catch to its original
position.
392de168
Raising the spare wheel cover
Swing the cover up and attach it to the
red catch on the floor panel flap (arrow).
Before folding the cover back down,
return the catch to its original position.
