Heating andventilation 25
- lieating and ventilation system is
-e for high output, sensitive adj.ust-
-and the ability to enjoy a separate,
ÉÉri±+-dLable flow of fresh air in warm
-TE,.
Th. various controls are located as
J=_=-i=:
i = Slide for fresh-air supply, left, and
drTvtr.s fresh ai r gri lle
2 = FÌotarytemperature control
• = FÌotary blower switch
• = FÌotary air distribution control
S = S]ide for fresh-air supply, right
• = Vertical movement of driver's fresh
± r grille
T = horizontal movement of driver's
Tesh aj r gril le
8 = Driver's fresh air grille flow control
Fresh air supply slides, right (1) and lefl
(5)
As these levers are moved from bottom
(`OFF') to top (`VENT'), they permit an
increasing volume of cool air to enter the
car's interior. The air enters via .the side
grilles, two center grilles and a separately
controlled driver's fresh air grille in the
center console, all of which can be mov-
ed vertically and horizontally to deflect
theairFlowasrequired.

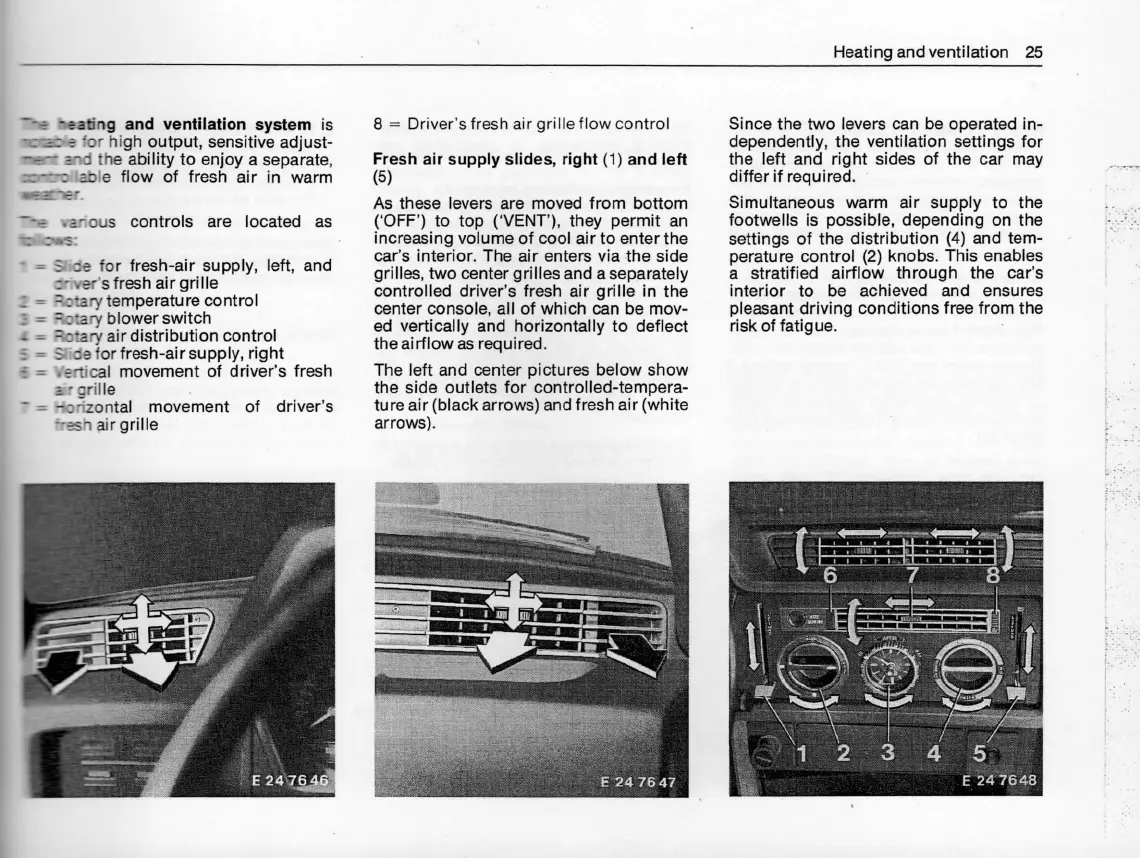

The left and center pictures below show
the side outlets for controlled-tempera-
tu re air (black arrows) and fresh air (white
arrows).
Since the two levers can be operated in-
dependently, the ventilation settings for
the left and right sides of the car may
differ if required.
Simultaneous warm air supply to the
footwells is possible, depending on the
settings of the distribution (4) and tem-
gersattrua{Ff:8sntarj°+,;2jktnh°rgsu.g[h::h%na£I;§
interjor to be achieved and ensures
pleasant driving conditions free from the
risk of fatigue.
