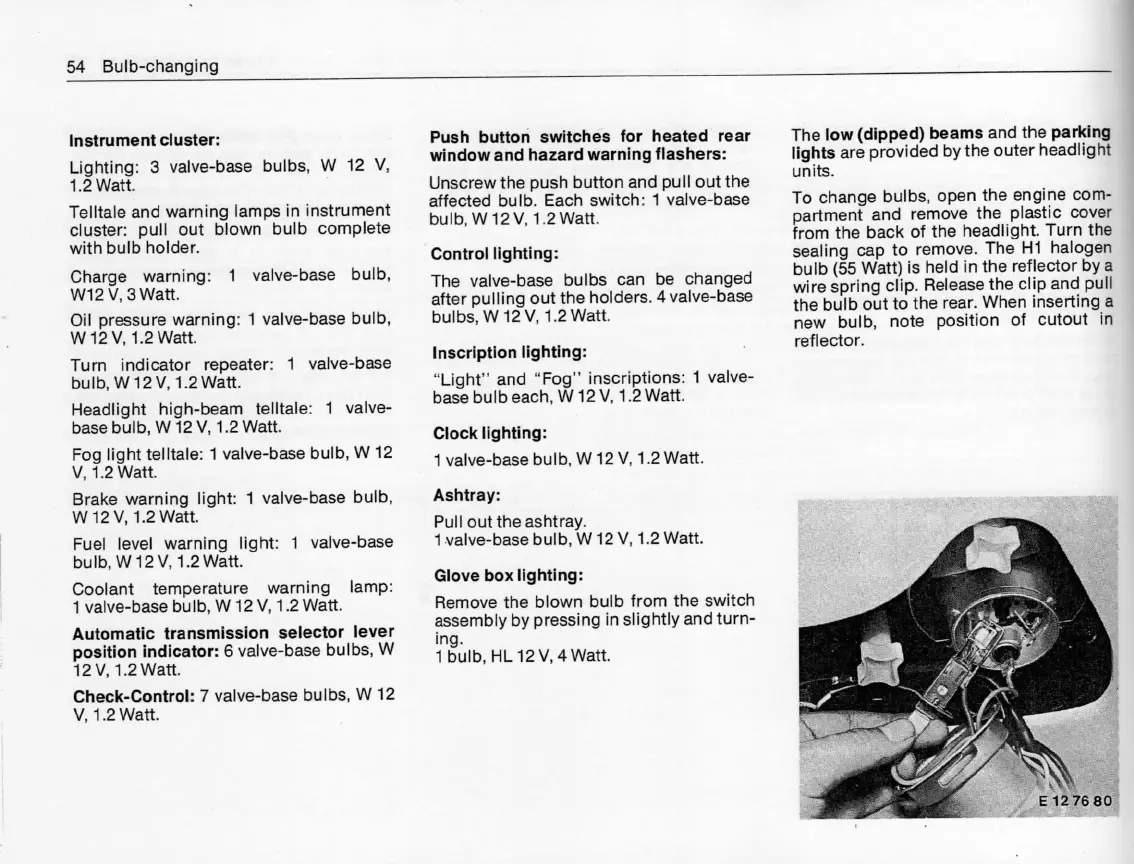

54 Bulb-changing
Instrument cluster:
Lighting: 3 valve-base bulbs, W 12 V,
1.2 Watt.
Telltale and warning lamps in instrument
cluster: pull out blown bulb complete
with bulb holder.
Charge warning: 1 valve-base bulb,
W12 V, 3 Watt.
Oil pressure warning: 1 valve-base bulb,
W 12 V, 1.2 Watt.
Turn indicator repeater: 1 valve-ba§e
bulb, W 12 V,1.2 Watt.
Headlight high-beam telltale: 1 valve-
base bulb, W 12 V,1.2 Watt.
Fog light telltale: 1 valve-ba§e bulb, W 12
V' 1 -2 Watt.
Brake warning light: 1 valve-base bulb,
W 12 V, 1.2 Watt.
Fuel level warning light: 1 valve-base
bu lb, W 12 V, 1.2 Watt.
Coolant temperature warning lamp:
1 valve-base bulb, W 12 V,1.2 Watt.
Automatic transmission selector lever
position indicator: 6 valve-base bulbs, W
12 V, 1.2 Watt.
Check-Control: 7 valve-base bulbs, W 12
V, 1.2 Watt.
Push button swjtches for heated rear
window and hazard warning flaishers:
Unscrew the push button and pull out the
affected bulb. Each switch: 1 valve-base
bulb, W 12 V,1.2 Watt.
Control lighting:
The valve-base bulbs can be changed
:#fbrs?UJ;'Ì,n2gv:Utt.£h£aht?.lders.4valve-base
lnscrlpt!on llghting:
"Light" and "Fog" inscriptions: 1 valve-
base bulb each, W 12 V, 1.2 Watt.
Clock lighting:
1 valve-base bulb, W 12 V,1.2 Watt.
Asht'ay:
Pul 1 out the ashtray.
1.valve-base bulb, W 12 V,1.2 Watt.
Glove box llghtlng:
Remove the blown bulb from the switch
assembly by pressing in slightly and turn-
ing.
1 bulb, HL 12 V, 4 Watt.
:::to:r!d#opvìg)egeb;Thseaonudt#:epaadrfànhgt
units.
5:ricJ::gea:à':Sho.E:ntthheepe,nàgtrce:gvT;
from the back of the headlight. Turn the
sealing cap to remove. The Hl halogen
bulb (55 Watt) is held in the reflector by a
rhi:ebsuTàiàE,ctàpthRee::::.ejùhhee:'i£saenndinpgu:
new bulb, note position of cutout in
reflector.
