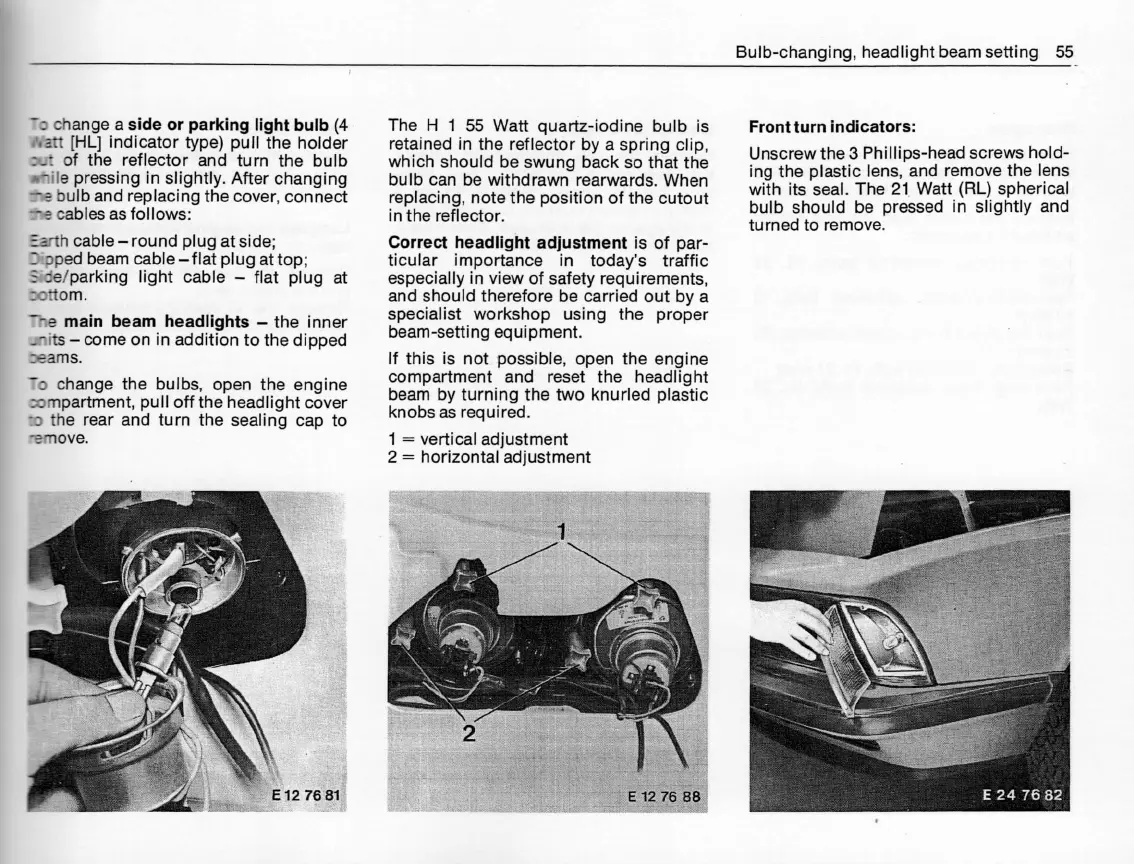

Bulb-changing, headlight beam setting 55
-o change a side or parking light bulb (4
#o[fH#ein,d:,i:::à,ty:neàpt:`;nthtàeho#:
i-hile pressing in slightly. After changing
tie bulb and replacing the cover. connect
tfte cables as follows:
Earth cable -round plug at side;
Dripped beam cable -flat plug at top;
Sjde/parking light cable - flat plug at
Ex)ttom.
The main beam headlights -the inner
Linits -come on in addition to the dipped
tEams_
To change the bulbs, open the engine
a)mpartment, pull off the headlight cover
to the rear and turn the sealing cap to
move.
The H 1 55 Watt quartz-iodine bulb is
retained in the reflector by a spring clip,
which should be swung back so that the
bulb can be withdrawn rearwards. When
replacing, note the position of the cutout
in the reflector.
Cori'ect headlight adjustment js of par-
ticular importance in today's traffic
especially in view of safety requirements,
and should therefore be carried out by a
specialist workshop using the proper
beam-setti ng eq ui pment.
lf this is not.possible, open the engine
compartment and reset the head[ight
beam by turning the two knurled plastic
knobs as required.
1 = vertical adjustment
2 = horizontal adjustment
Fi.ont turn indicators:
Unscrew the 3 Phillips-head screws hold-
ing the plastic lens, and remove the lens
with its seal. The 21. Watt (RL) spherical
bulb should be pressed in slightly and
turned to remove.
