BMW 745i Repair Instructions

N
.......
J
I

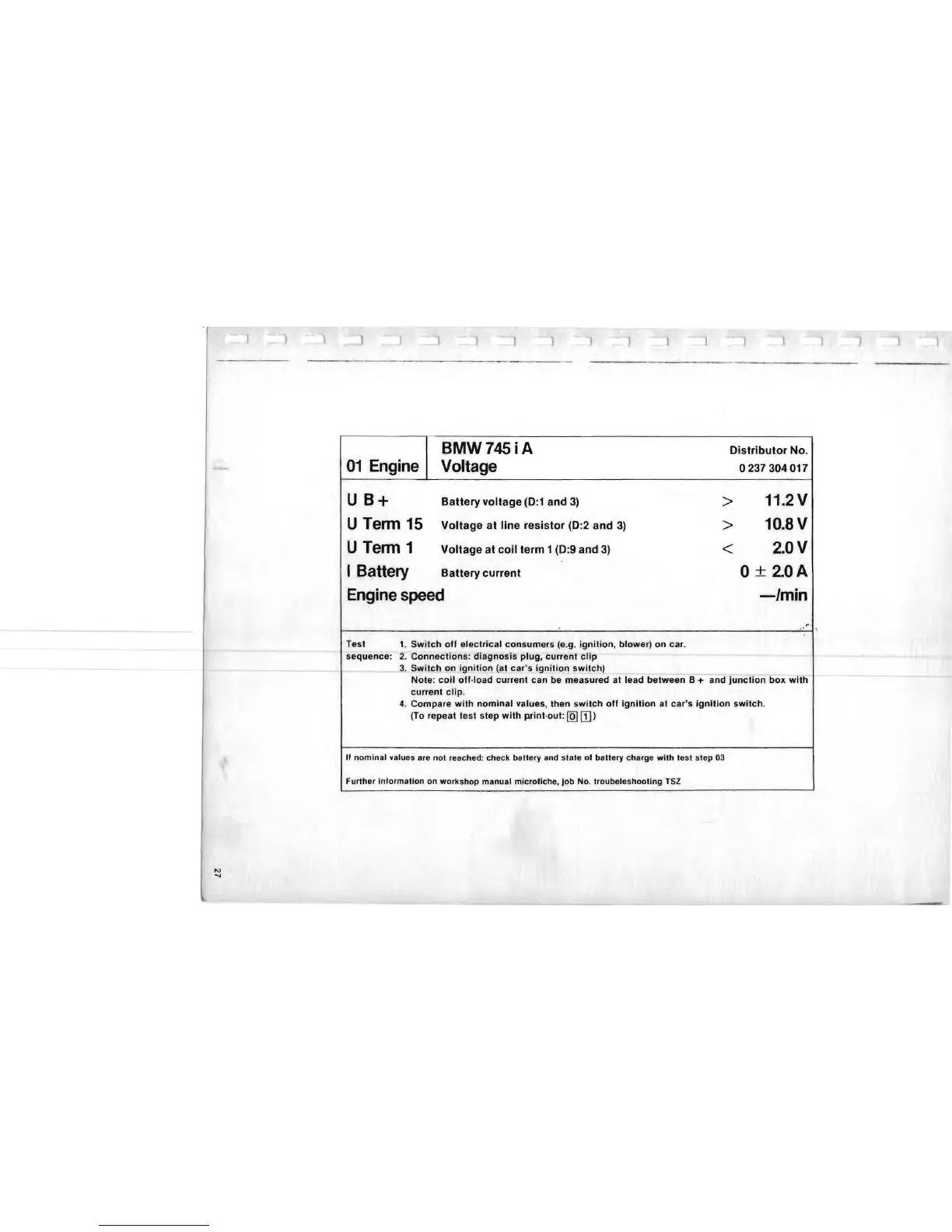

BMW745iA Distributor No.
01
Engine
Voltage
0237304017 ,
I
U B+
Battery voltage (0:1 and 3)
>
11.2V
U Tenn 15
Voltage at line resistor (0:2 and 3)
>
10.8V
U Tenn 1 Voltage at coil term 1 (D:9 and 3)
<
2.0 V
I Battery
Battery current
0
+
2.0 A
Engine speed
-/min
,..
Test
1. Switch off electrical consumers (e.g. ignition, blower) on car.
sequence:
2.
Connections: diagnosis plug, current clip
3. Switch on ignition (at car's ignition switch)
Note: coil off·load current can be measured at lead between B + and junction box with
current clip.
4. Compare with nominal values, then switch off ignition at car's ignition switch.
(To repeat test step with print·out: IQ] [})
" nominal values are not reached : check battery and state of battery charge with test step 03
I
Further information on workshop manual microfiche, job No. houbeleshooting TSZ
