E60 Complete Vehicle

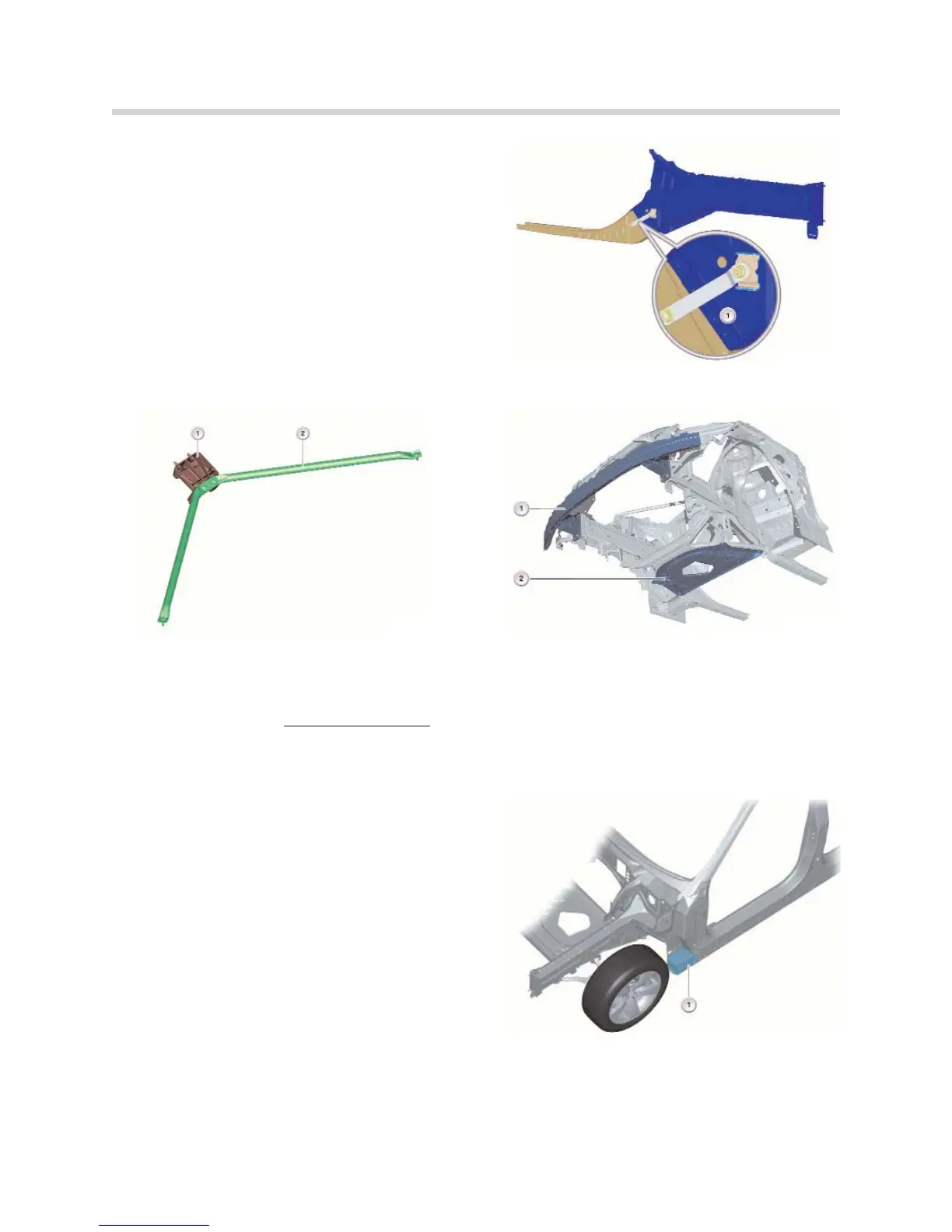

The transition from the aluminum front engine
support rail to the steel rail section joint (connec-
tion) is produced by bonding and punch riveting.
To i n c rease c o n d u c t i v i t y, gro u n d points a re l o c a t -
ed on the two rails and are connected with a
ground strap.
In addition to the underhood strut tower V- struts
(2 lower left), the bumper carrier (1 lower right)
and thrust panel (2 lower right) provide addition-
al reinforcement and structural rigidity.
NNoottee:: TThhee VV--ssttrruuttss,, bbuummppeerr ccaarrrriieerr aanndd tthhrruusstt ppaanneell m
b
muusstt bbee iinnssttaalllleedd aanndd pprrooppeerrllyy ttoorrqquueedd
beeffoorree tthhee vveehhiiccllee iiss ddrriivveenn.. IIff nnoott,, tthhee rriiggiiddiittyy ooff tthhee ffrroonntt eenndd wwiillll bbee ccoonnssiiddeerraabbllyy rreedduucceedd
lleeaaddiinngg ttoo nnooiissee aanndd ssttrruuccttuurraall ddaammaaggee..
The crash box is a deformation element
specially developed for the E60.
The crash box is part of the side frame and is
secured at the bottom of the A-pillar.
In the event of a frontal crash, the crash box
absorbs forces that are transmitted via the front
wheel into the side frame in the sill area.
