E88 Complete Vehicle
Partition Wall Module
Additional bracing has been incorporated into the rear section, as in previous convert-
ibles. The partition wall is designed as an assembly module which provides structure with
only minimal vehicle weight gain. The main support is also transmitted through the parti-
tion wall reinforcement struts, offering a weight bearing advantage.
Index Explanation Index Explanation
1
Partition wall module
3
Rollover protection mounting
2
Partition wall reinforcement
4
Sill/rocker structure

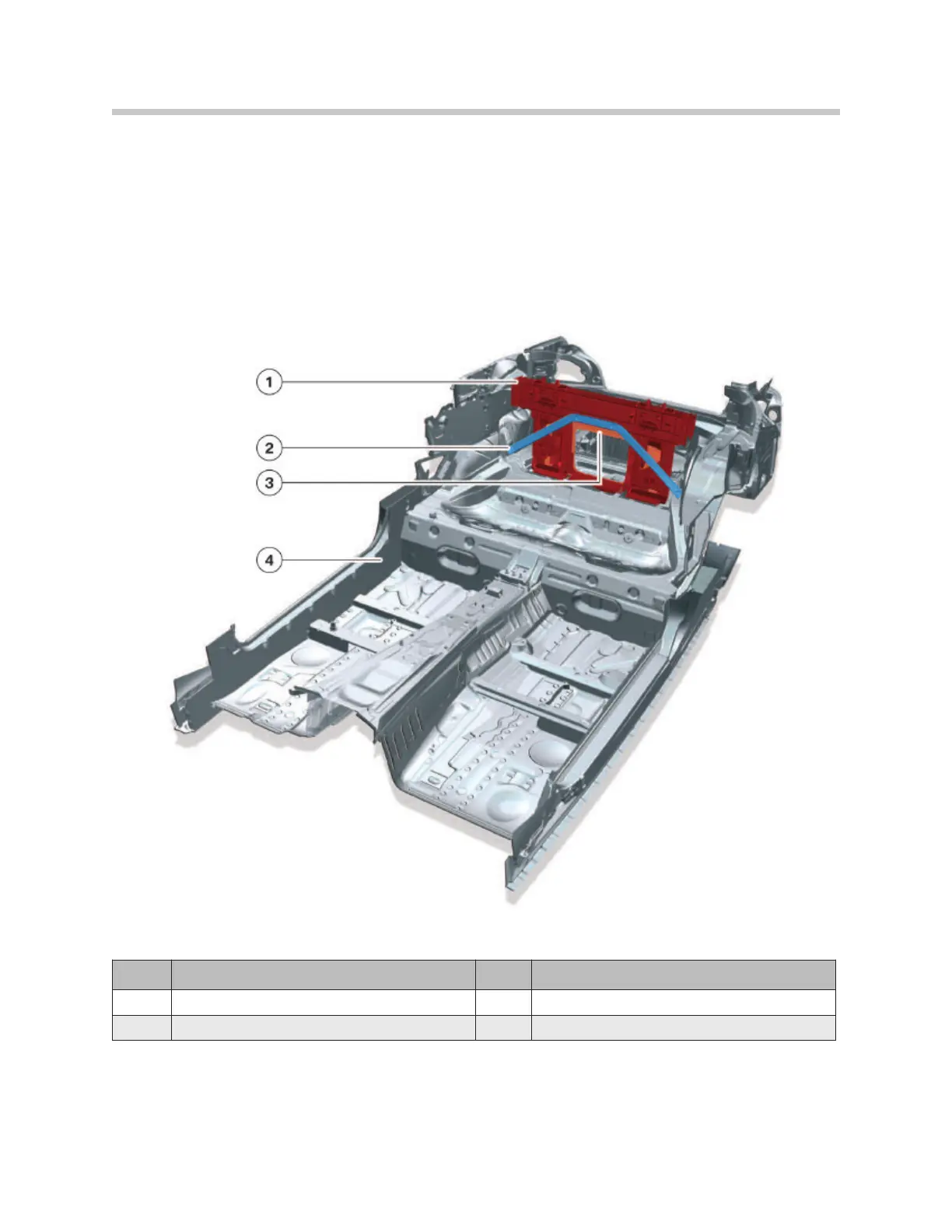

Cut away view of the body floor pan
