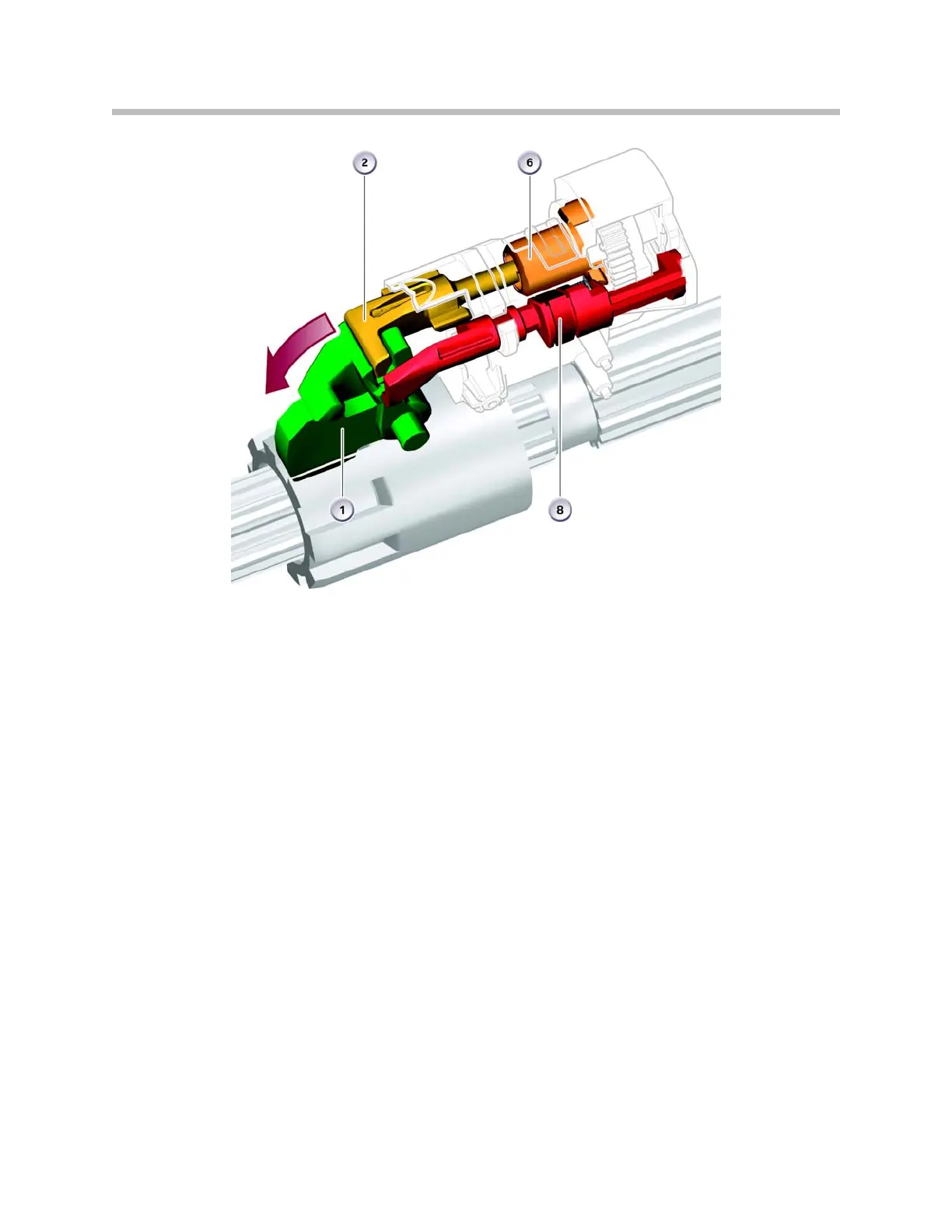

The locking pin (1) is snapped into place with the mechanism in the locked position. The

locking lever (8) rests on the drive carrier.
