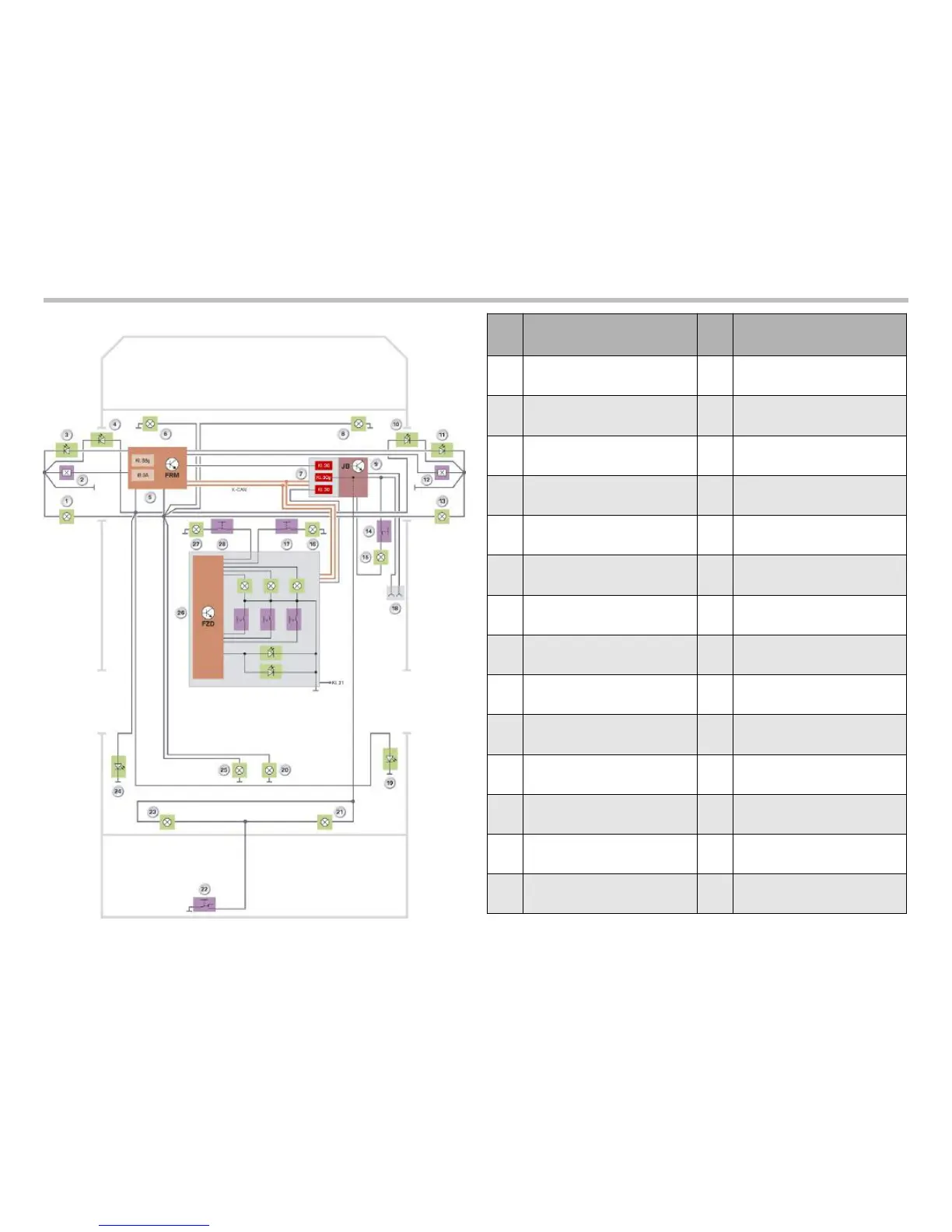

Interior Light Schematic
E93 Complete Vehicle Workbook
13
Index Explanation Index Explanation
1
Exit light, left
15
Glove compartment lighting
2
Door contact, left
16
Vanity mirror light right
3
Courtesy lighting, left
17
Switch for vanity mirror light, right
4
Fiber optic cable for left
door linear lighting
18
Charging socket
5
Footwell module
19
Side panel linear lighting, right
6
Footwell light, front left
20
Rear compartment footwell light,
right
7
Power distribution box, junction box
21
Luggage compartment light, rear
right
8
Footwell light, front right
22
Interior button for boot lid
9
Junction box electronics
23
Luggage compartment light, rear
left
10
Fiber optic cable for
right door linear lighting
24
Side panel linear lighting, left
11
Courtesy lighting, right
25
Rear compartment footwell light, left
12
Door contact, right
26
Roof functions module with
front interior light
13
Exit light, right
27
Vanity mirror light, left
14
Glove compartment switch
28
Switch for vanity mirror light
