BMW E93 - Rear Module

E93 Complete Vehicle Workbook
65
Rear module

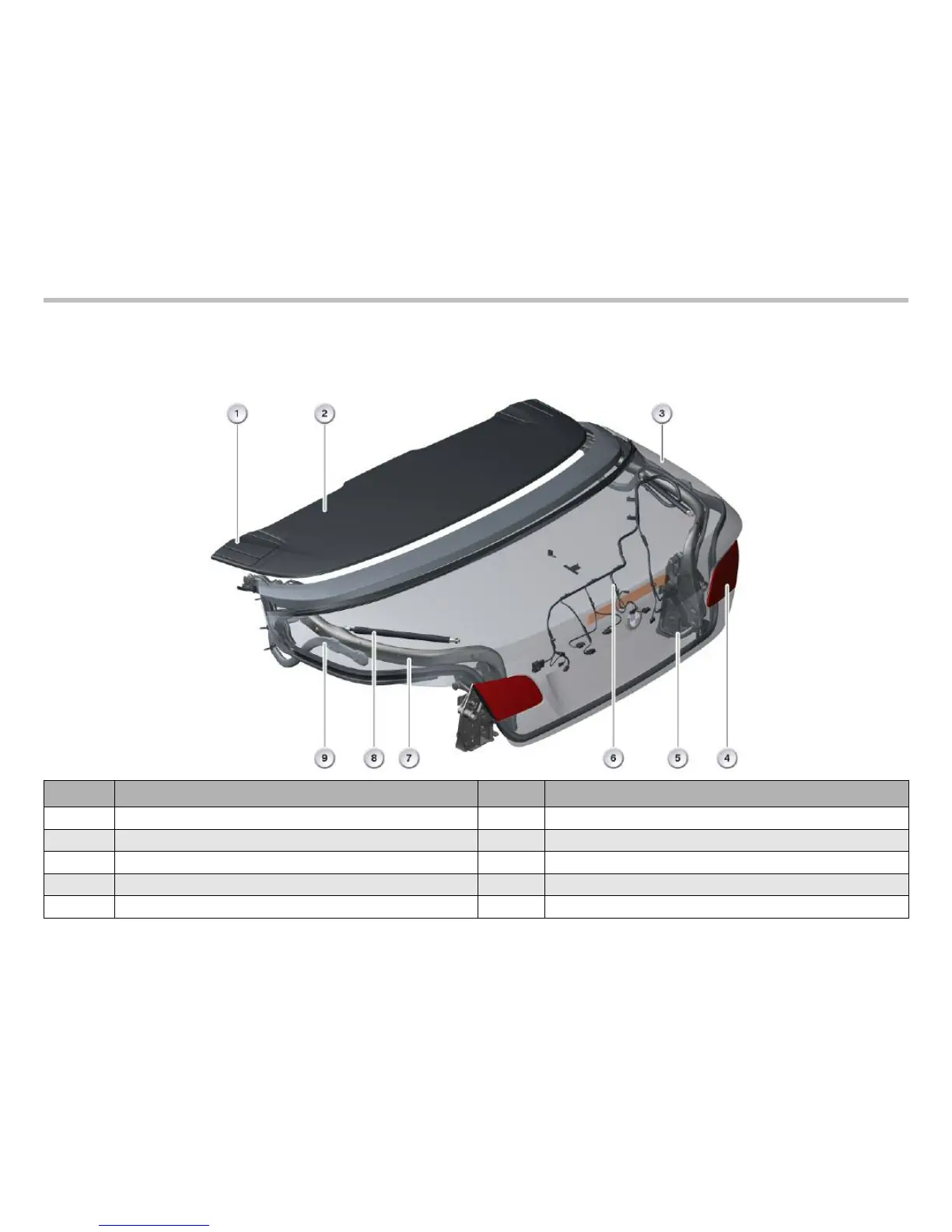

The trunk lid and hardtop lid are integrated into the rear module. The rear module is fastened to the body using a supporting bar structure
with main mount. The rear module weighs about 105 lbs. The trunk lid is equipped with Soft Close Automatic.
Index Explanation Index Explanation
1
Opening hinges for linkage (main pillar)
6
Wiring harness
2
Hardtop lid
7
Rear module linkage
3
Trunk lid
8
Trunk lid damper
4
Tail lights
9
Trunk lid linkage
5
Rear module main mount
