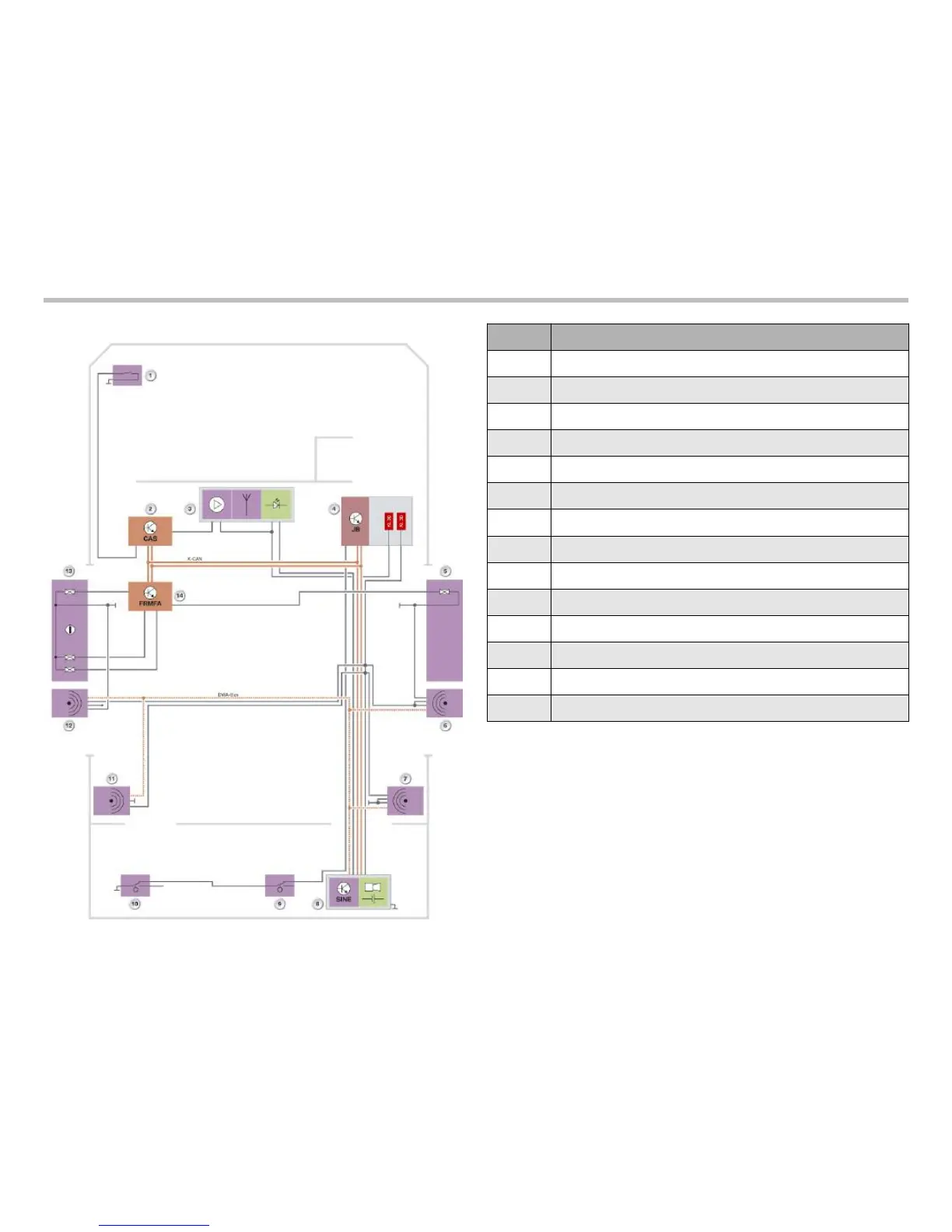

Anti-Theft Alarm Schematic
E93 Complete Vehicle Workbook
19
Index Explanation
1
Hood contact
2
Car Access System
3
Interior rear-view mirror with remote control receiver and DWA LED
4
Junction box
5
Passenger’s door contact
6
Microwave sensor, front right
7
Microwave sensor, rear right
8
Siren with tilt alarm sensor
9
Boot lid contact, right
10
Boot lid contact, left
11
Microwave sensor, rear left
12
Microwave sensor, front left
13
Driver’s door contact
14
Footwell module (FRM)
