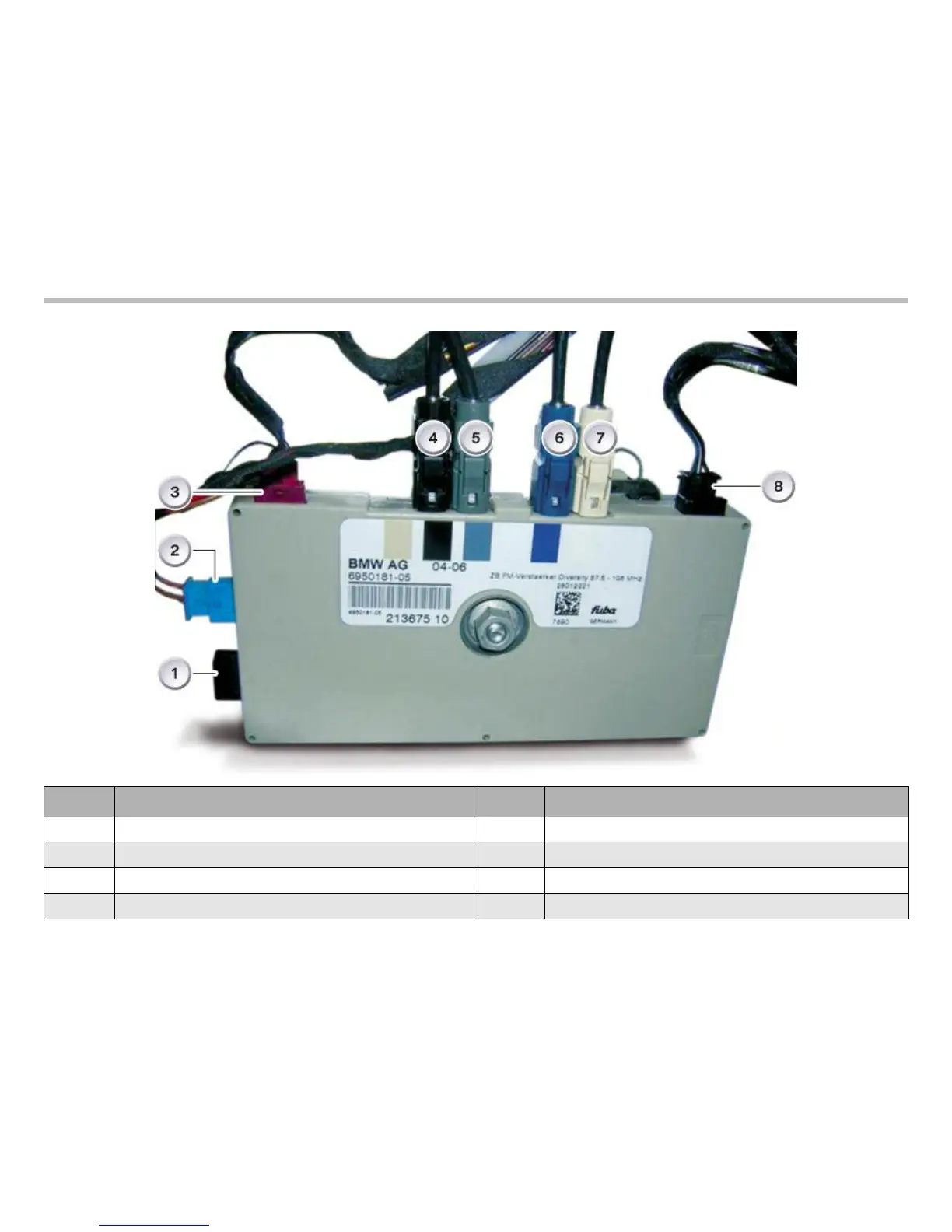

Diversity Module
E93 Complete Vehicle Workbook
31
Index Explanation Index Explanation
1
FM2 and FM4 antenna input
5
RF signals, rear window
2
Power supply for external antenna amplifiers
and input, KL30g
6
RF signal of FM3
3
Signal from CTM and Radio ON
7
RF signal of AM/FM1
4
RF signal for radio navigation
8
Changeover voltage/diagnosis
