E93 Complete Vehicle Workbook
Input Information Source Function
Out
Crash Telegram
ACSM2>JB>EKP
Shut down fuel pump
Out
Crash Telegram
ACSM2>JB>DME
Shut down alternator
Input Information Source Function
Out
Crash Telegram
ACSM2 > CAS 3
Open central locking
Out
Crash Telegram
ACSM 2 > FRM
Activate hazard warning lights
Out
Crash Telegram
ACSM 2 > FRM
Switch on interior lights
Index Explanation Index Explanation
1
Up front sensor, left
13
B-pillar satellite, right
2
Driver’s airbag
14
Battery
3
Front passenger airbag
15
Safety battery terminal
4
Up front sensor, right
16
Actuator, right roll bar
5
Junction box
17
Rollover controller
6
Knee airbag passenger’s side
18
Actuator, left roll bar
7
CAS 3
19
B-pillar satellite
8
Crash Safety Module (ACSM 2)
20
Seat belt pre-tensioner and seat
belt buckle switch, driver’s side
9
Door pressure sensor, passenger’s
side
21
Side airbag, driver’s side
10
Side airbag, passenger’s side
22
Door pressure sensor, driver’s side
11
Seat belt pre-tensioner and seat
belt buckle switch, passenger’s side
23
Passenger Airbag OFF lamp
12
OC-3 mat
24
Knee airbag, driver’s side
Signals on the PT-CAN
Signals on the K-CAN

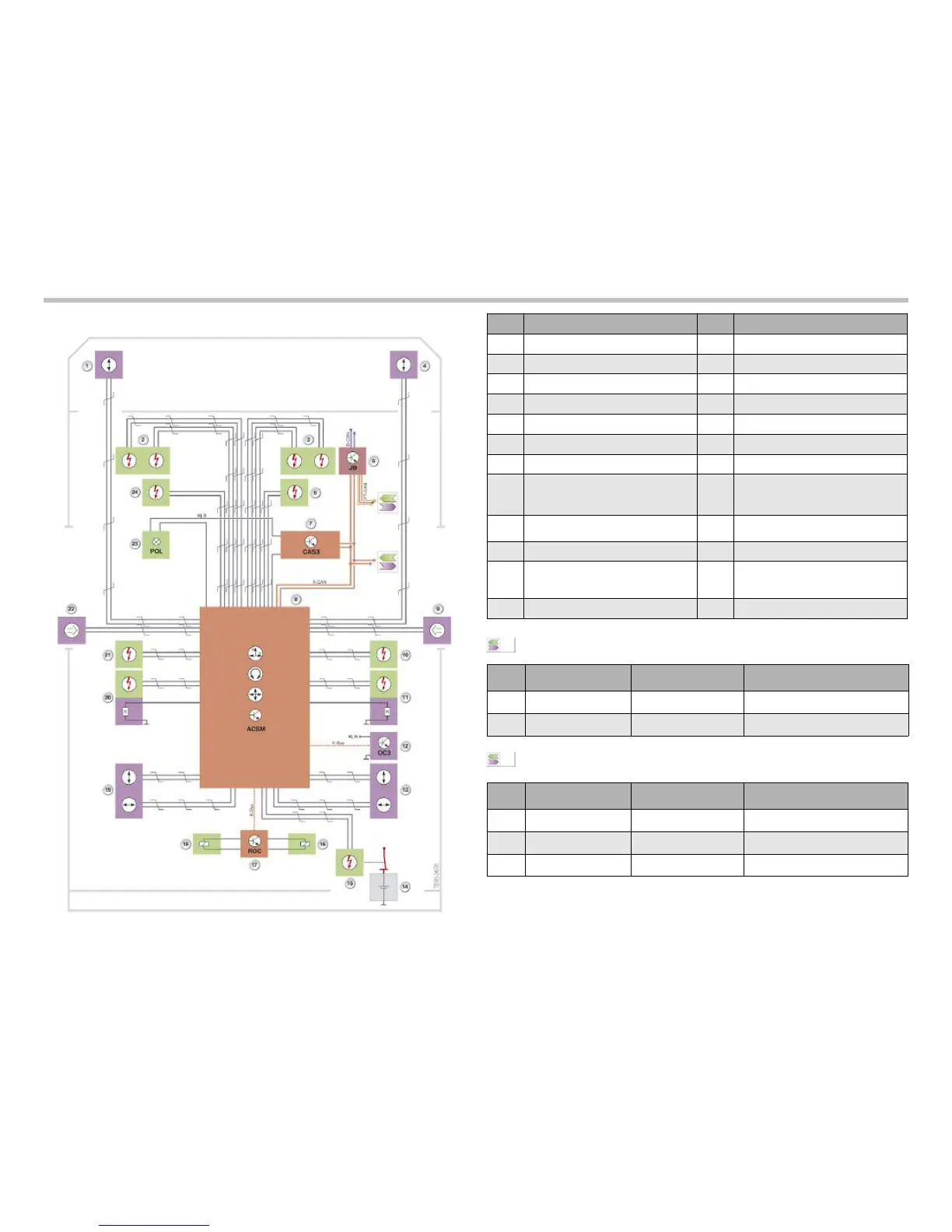

ACSM2 Schematic
