E93 Complete Vehicle Workbook
75

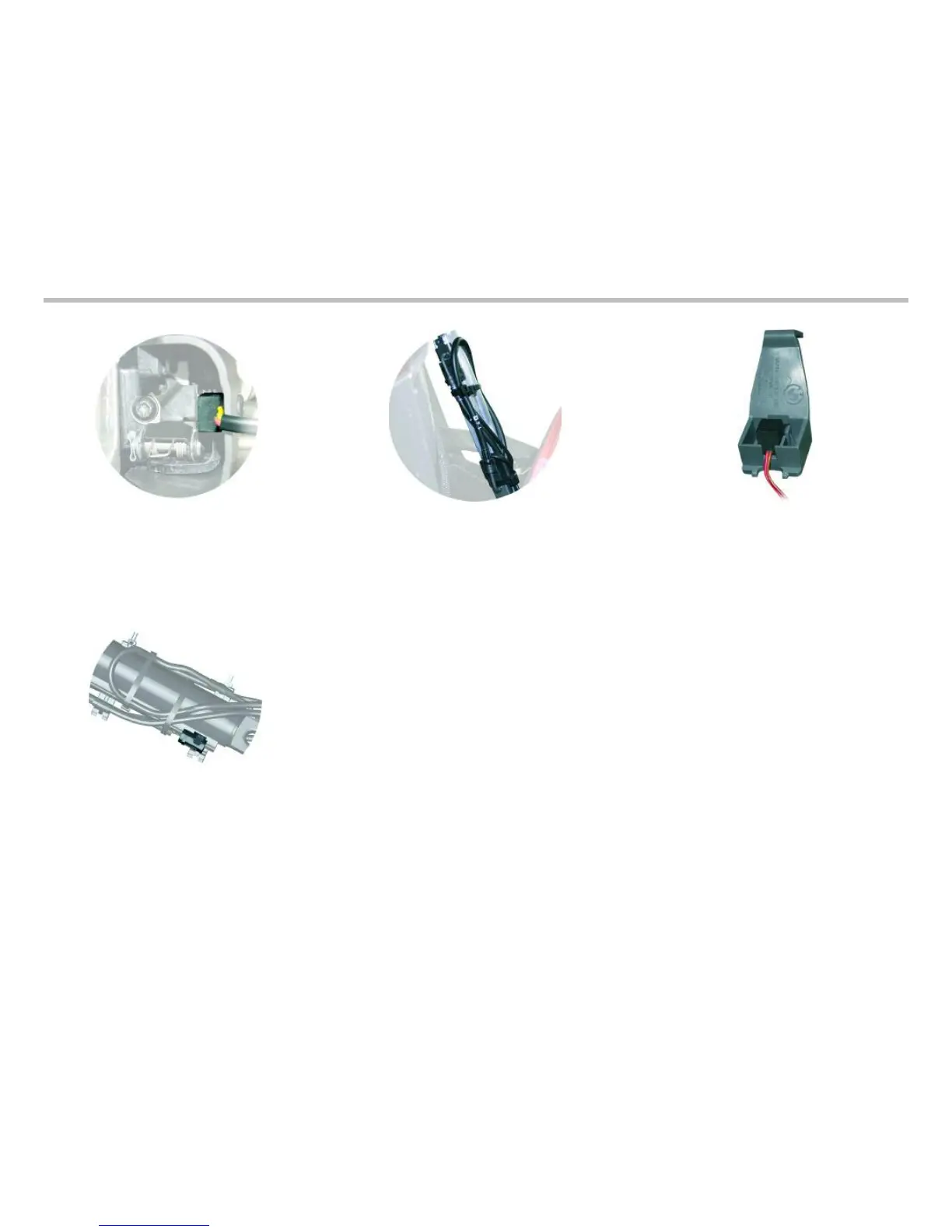

“Roof package stowed” Hall sensor
This Hall sensor is located on the partition for the
RPS, on the right hand side
“Rear module open” Hall sensor
“Rear module almost closed Hall sensor
Both of these Hall sensors are located on the
right hand rear module cylinder
“Luggage compartment divider”
Hall Sensor
This Hall sensor is located on the right hand rear
side of the luggage compartment
“Roof package extended” Hall Sensor
This Hall sensor is located on the right side main
roof pillar cylinder
