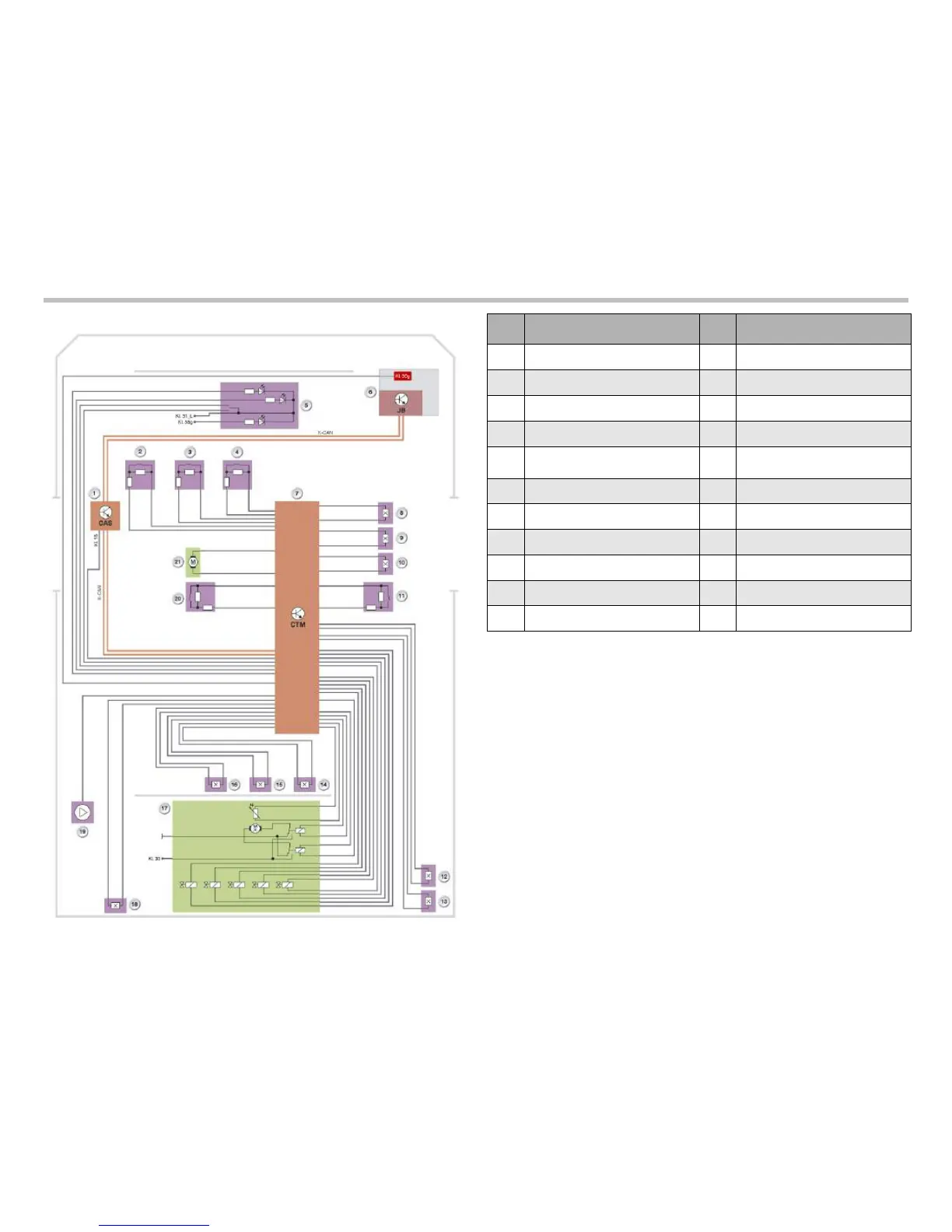

Hard Top System Schematic
82
E93 Complete Vehicle Workbook
Index Explanation Index Explanation
1
Car Access System (CAS 3)
12
“Rear module open”
Hall sensor
2
“Cowl panel reached” micro switch
13
“Rear module almost closed”
Hall sensor
3
“Catch hook locked” micro switch
14
“Roof package stowed”
Hall sensor
4
“Catch hook unlocked” micro switch
15
“Rear module closed”
Hall sensor
5
Operating button for retractable hard
top
16
“Roof package extended”
Hall sensor
6
Junction Box (electronics)
17
Hydraulic unit (pump,motor,valves)
7
Convertible Top Module (CTM)
18
“Luggage compartment divider”
Hall sensor
8
“Open roof shells” Hall sensor
19
Diversity aerial
9
“Close roof shells” Hall sensor
20
“Left closure” microswitch
10
“Closure open” Hall Sensor
21
Electric motor for fastener on cowl
panel and interlocking of roof shells
11
“Right closure closed” microswitch
