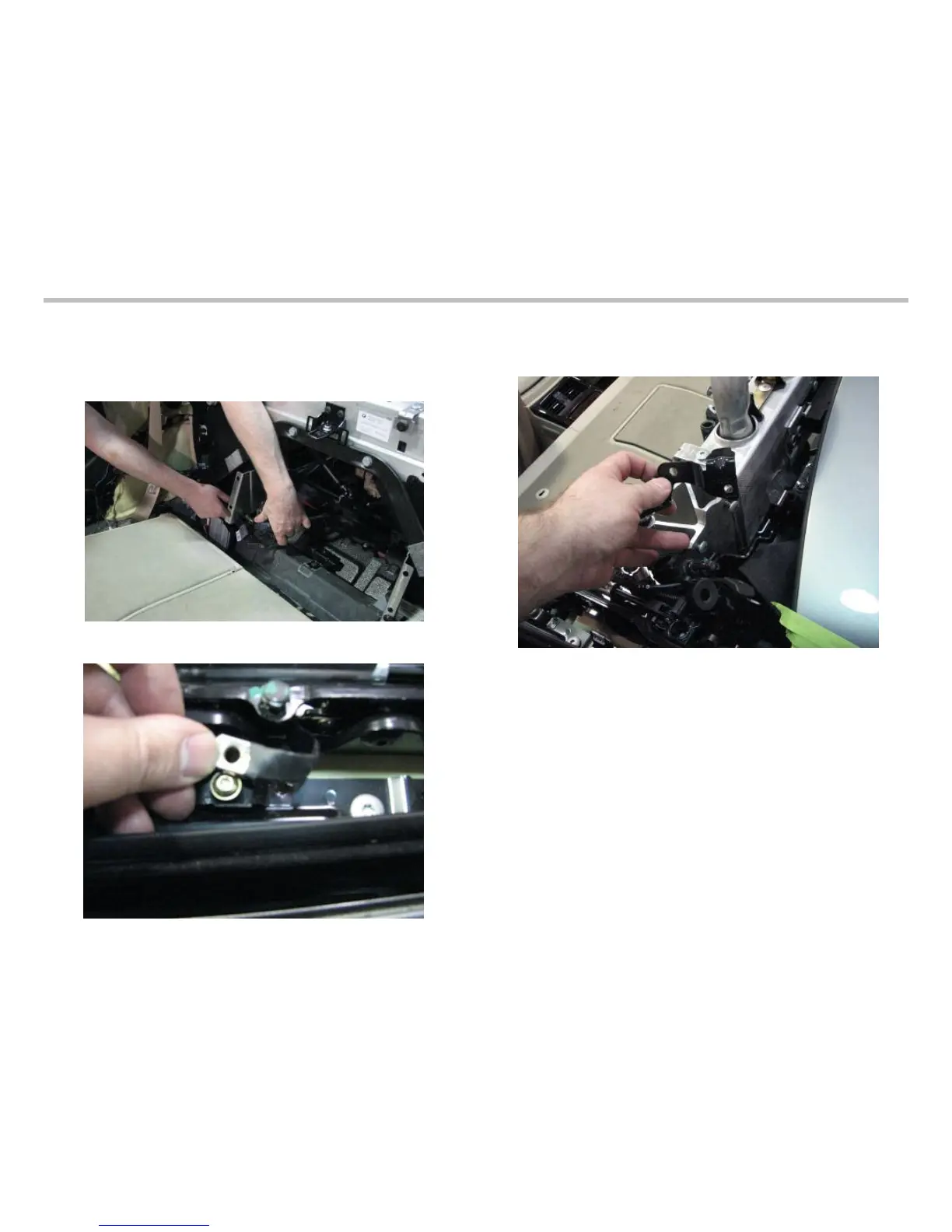

Remove bolts (front 2x) attaching roof module to body and
loosen rear bolts for access later.
Lower roof module and then disconnect electrical connections
from CTM and feed harness through partition.
Now that the roof module is lowered disconnect ground
connections and water drains.
Disconnect remaining bolts and check for any remaining wiring
harness connections.
Remove brackets as shown.
Attach upper part of sling and remove roof module. Take care to lift
roof module straight up and out. Avoid damage by taping up any
potentially exposed areas.
Remove roof module and move crane assembly away far enough to
room to perform adjustments on vehicle.
E93 Complete Vehicle Workbook
93
