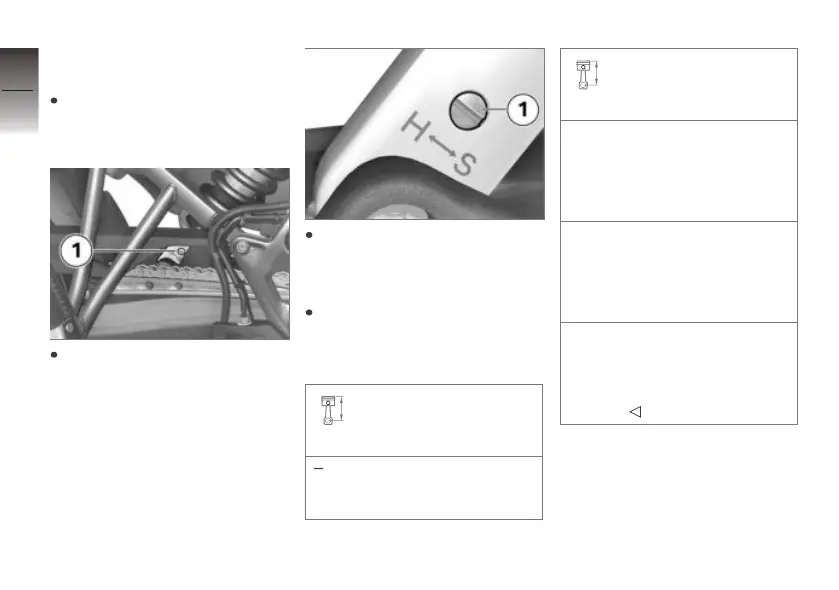

Adjust the damping for
rear wheel
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Adjust the damping charac-
teristic by turning adjusting
screw 1.
If you want a harder damping
characteristic, turn adjusting
screw 1 in the direction indic-
ated by the H arrow.
If you want a softer damping
characteristic, turn adjusting
screw 1 in the direction indic-
ated by the S arrow.
Basic setting of rear-
suspension damping
characteristic
without Electronic
Suspension Adjustment
(ESA)
OE
Basic setting of rear-
suspension damping
characteristic
Turn the adjusting screw as
far as it will go in the clock-
wise direction and then back it
off one and a half turns (One-
up without luggage)
Turn the adjusting screw as
far as it will go in the clock-
wise direction and then back it
off one and a half turns (One-
up with luggage)
Turn the adjusting screw
as far as it will go in the
clockwise direction and then
back it off 1 turn (Two-up with
luggage)
