BMW G01 - Interior Mirror; System Wiring Diagram

G01�General�Vehicle�Electronics
10.�Interior�Mirror
41

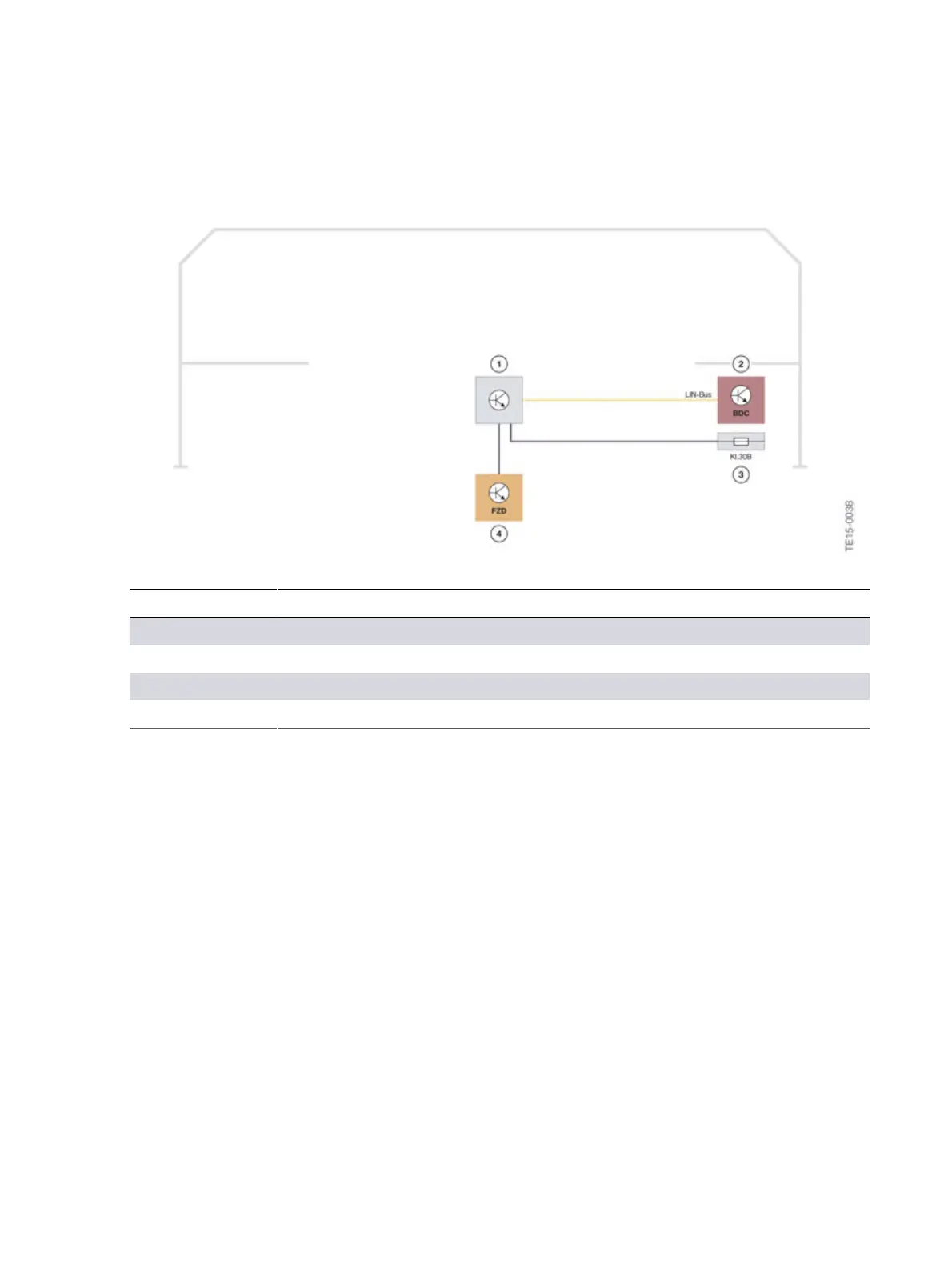

10.1.�System�wiring�diagram
Inside�mirror
Index Explanation
1 Inside�mirror
2 Body�Domain�Controller
3 Fuse�for�front�right�power�distribution�box
4 Roof�function�center�(FZD)
The�interior�mirror�is�connected�with�the�Body�Domain�Controller�via�LIN�bus.
The�LED�for�the�alarm�system�is�located�at�the�interior�mirror.
