12 Range Extender fuel gauge 82
13 Messages, e.g. Check Control
14 Display, drive mode 66

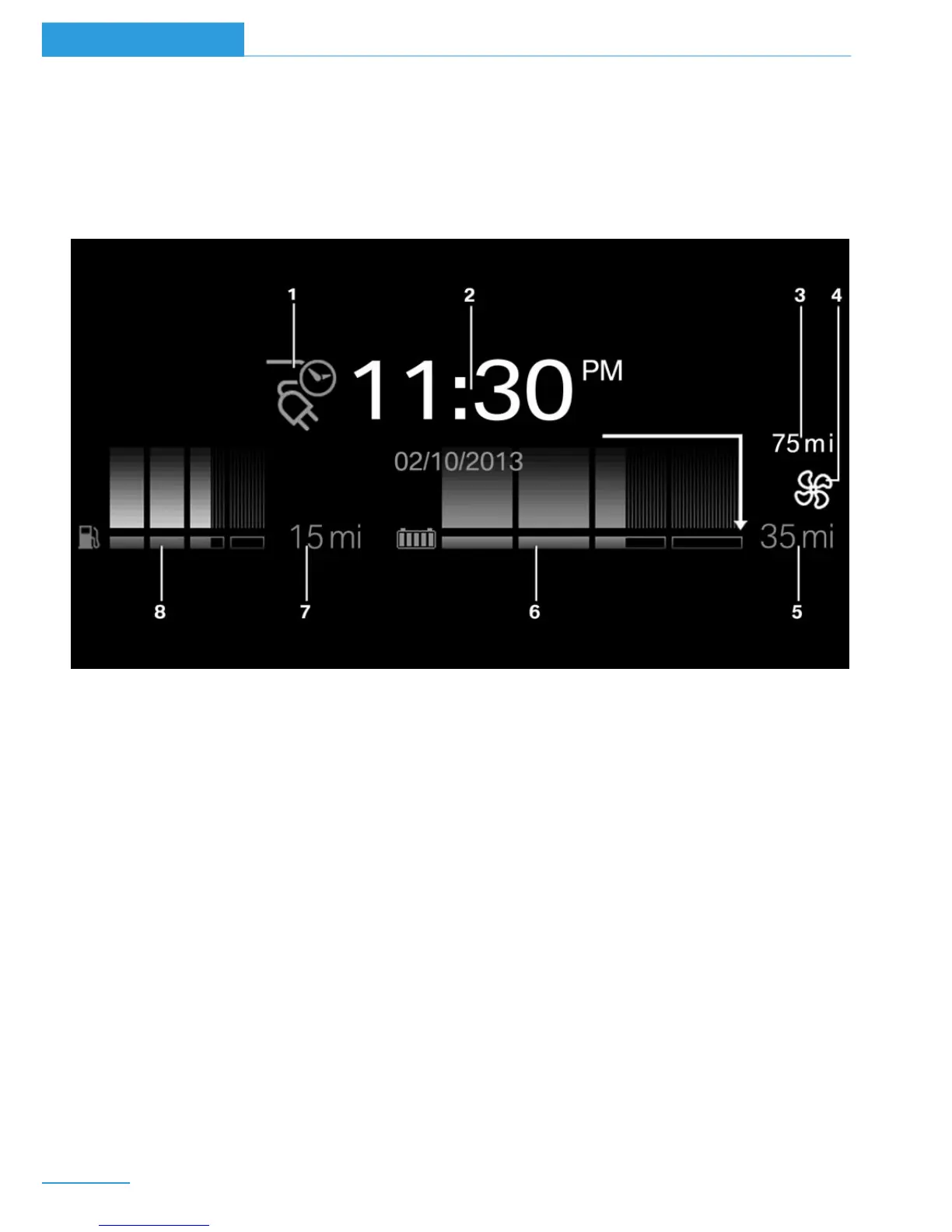

Charging screen
1 Charging status 166
2 End of charging time 166
Departure time with timer 167
3 Maximum electrical range 166
4 Stationary climate control 167
5 Range for electric driving 166
6 Charging state 77
7 Range Extender range 83
8 With Range Extender: fuel gauge 82
Displaying the eDRIVE
system
Displays in the instrument cluster
The concept
The display depends on the system's operat‐
ing condition. The following functions of the
eDRIVE system are shown in the instrument
cluster:
▷ High-voltage battery charge indicator.
▷ Electric driving: ePOWER.
▷ Energy recovery: CHARGE.
▷ Drive readiness: READY.
Seite 76
Controls Displays
76
