Lamps and bulbs

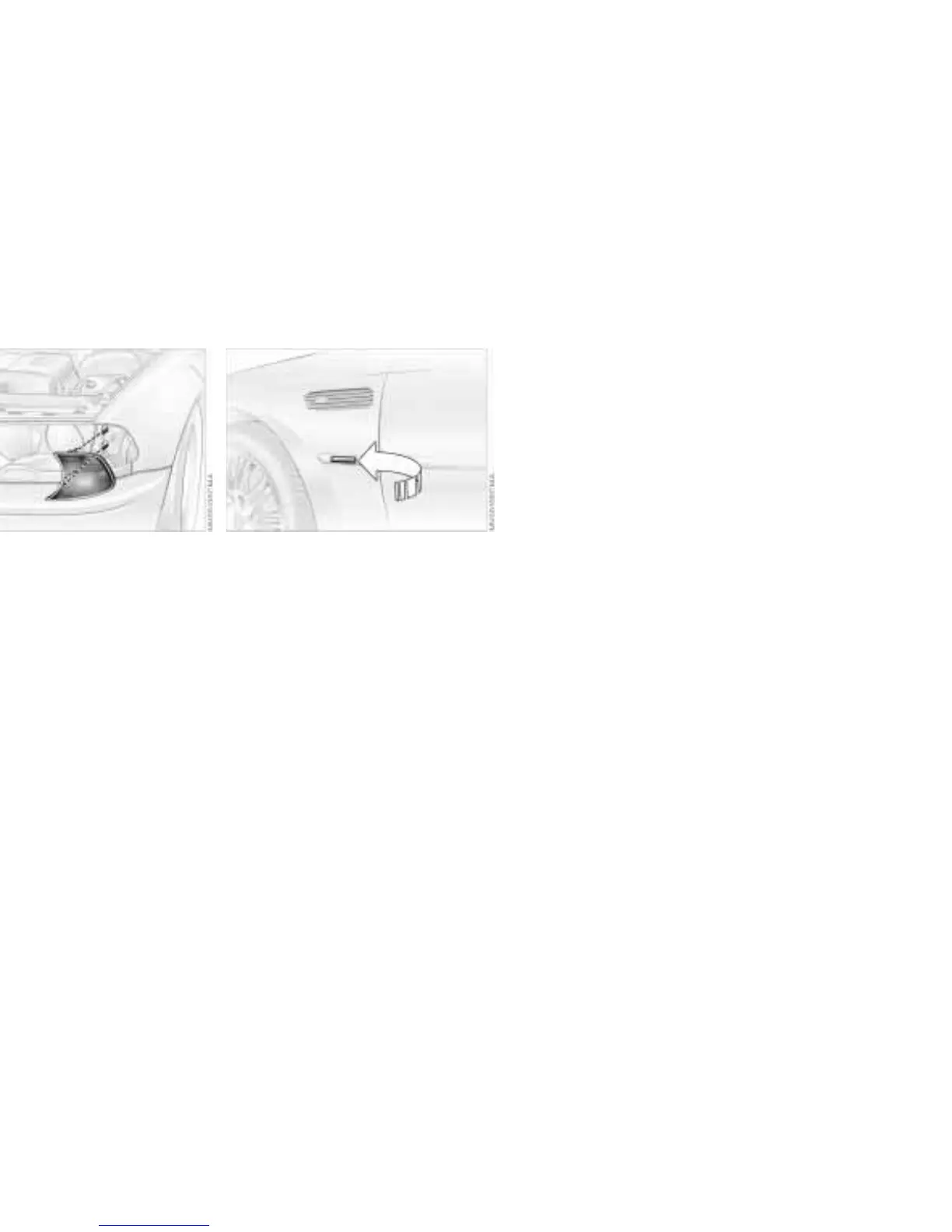

Front turn signal indicator
21 watt bulb
1 Using a screwdriver, release the inner
hook through the upper opening
2 Remove lamp by pulling it out toward
the front
3 Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
4 Insert the 2 pins on the lamp into the
guides on the vehicle
5 Push the lamp in. Carefully apply
pressure until you hear it snap into
place.
Side turn signal indicator
5 watt bulb
1 Use finger pressure against the rear
end of the lens (arrow) to press it
forward for removal
2 Apply gentle pressure to the bulb
while turning it to the left to remove.
