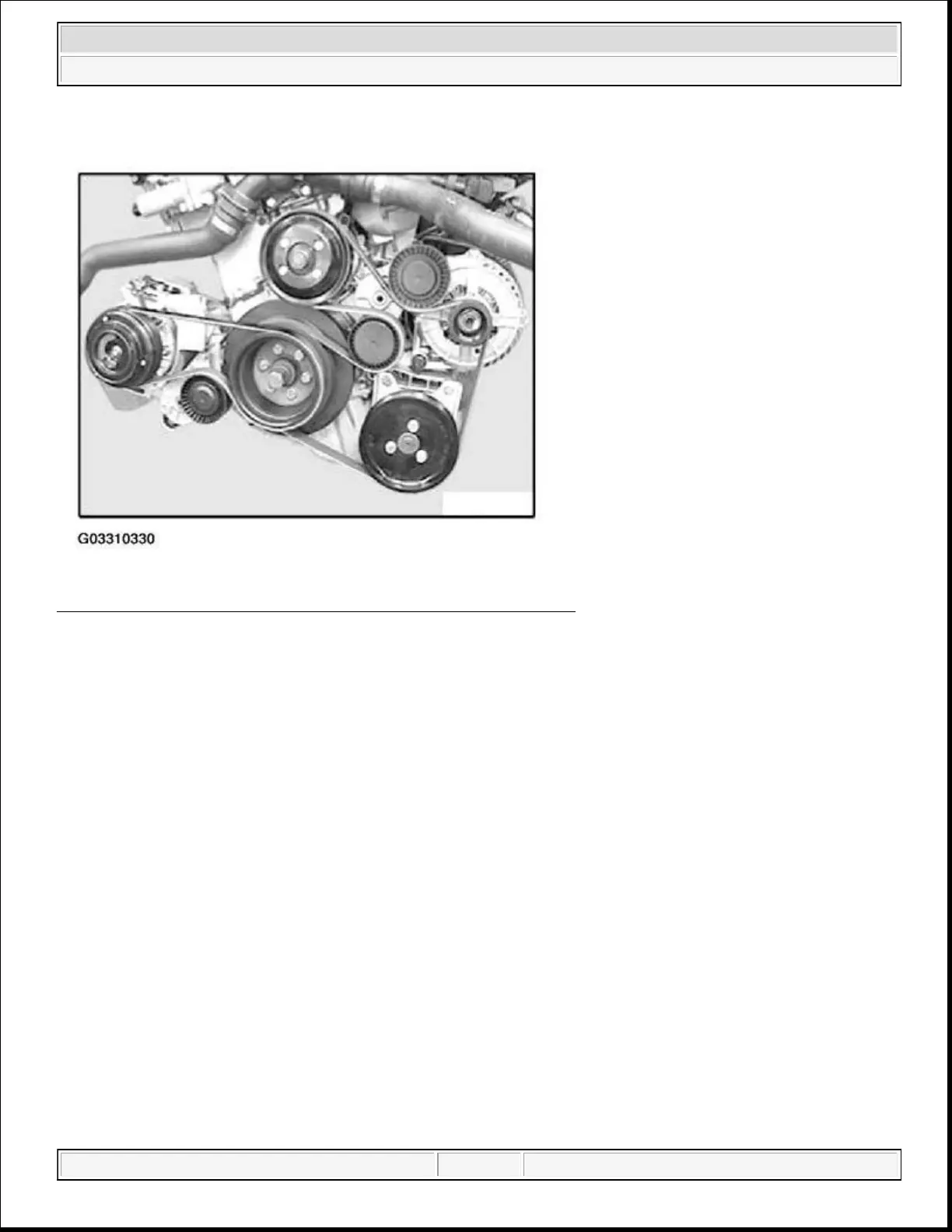

Fig. 170: View Of Belt Position With Auxiliary Tensioning Roller
Courtesy of BMW OF NORTH AMERICA, INC.
Locking device of auxiliary tensioning roller must snap into groove on alternator.
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:53 p. m. Page 176 © 2011 Mitchell Repair Information Company, LLC.
