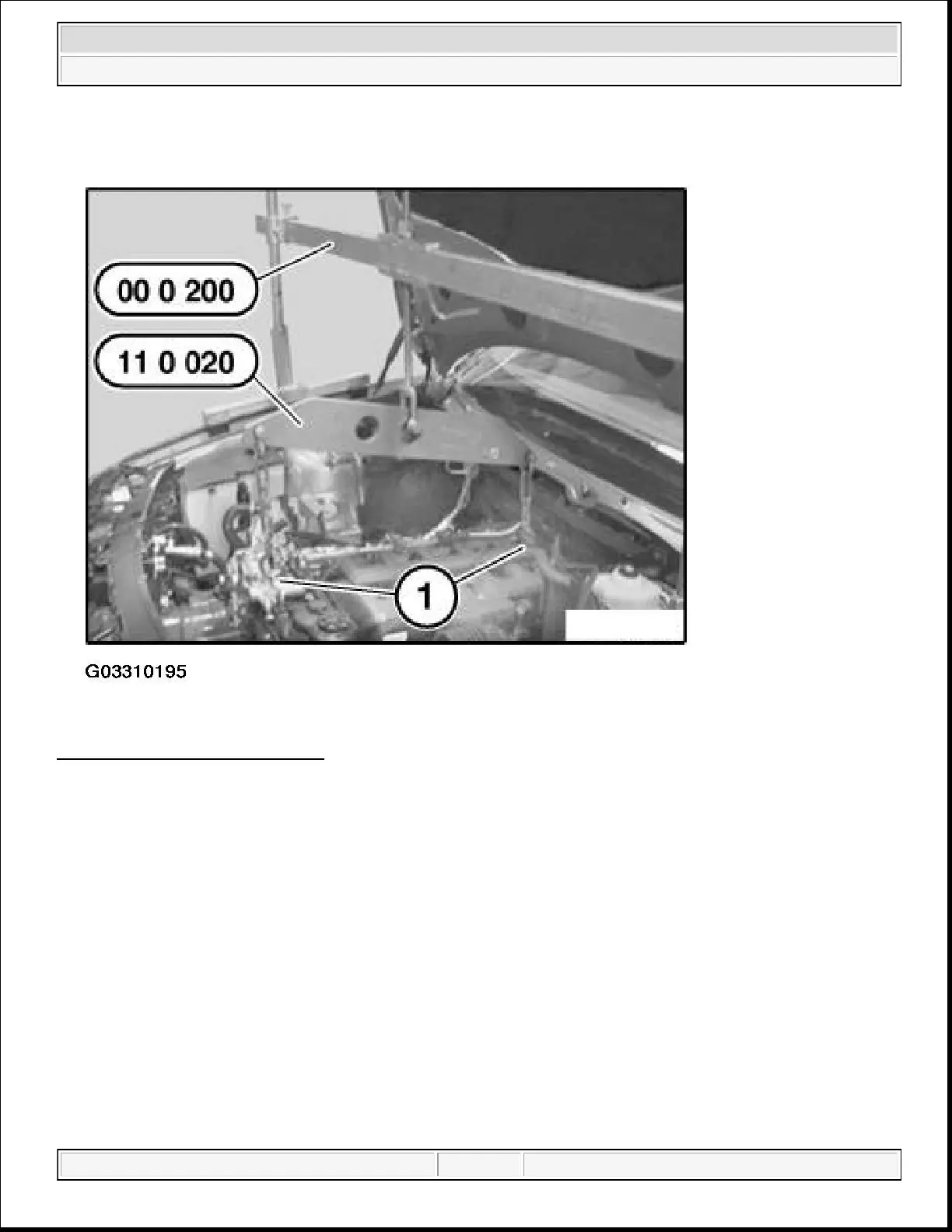

Fig. 19: Assembling Special Tools
Courtesy of BMW OF NORTH AMERICA, INC.
Secure special tool 11 0 020 to the designated suspension eyes at front and rear only.
Tighten the screws (1 and 2).
IMPORTANT: Risk of damage to fuel line and engine wiring harness.
NOTE: The supports of special tool 00 0 208 must rest on the bolt connection of both
side walls .
Risk of damage .
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:50 p. m. Page 22 © 2011 Mitchell Repair Information Company, LLC.
