BMW M54 - CYLINDER HEAD WITH COVER; REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52 TU; M54; M56)

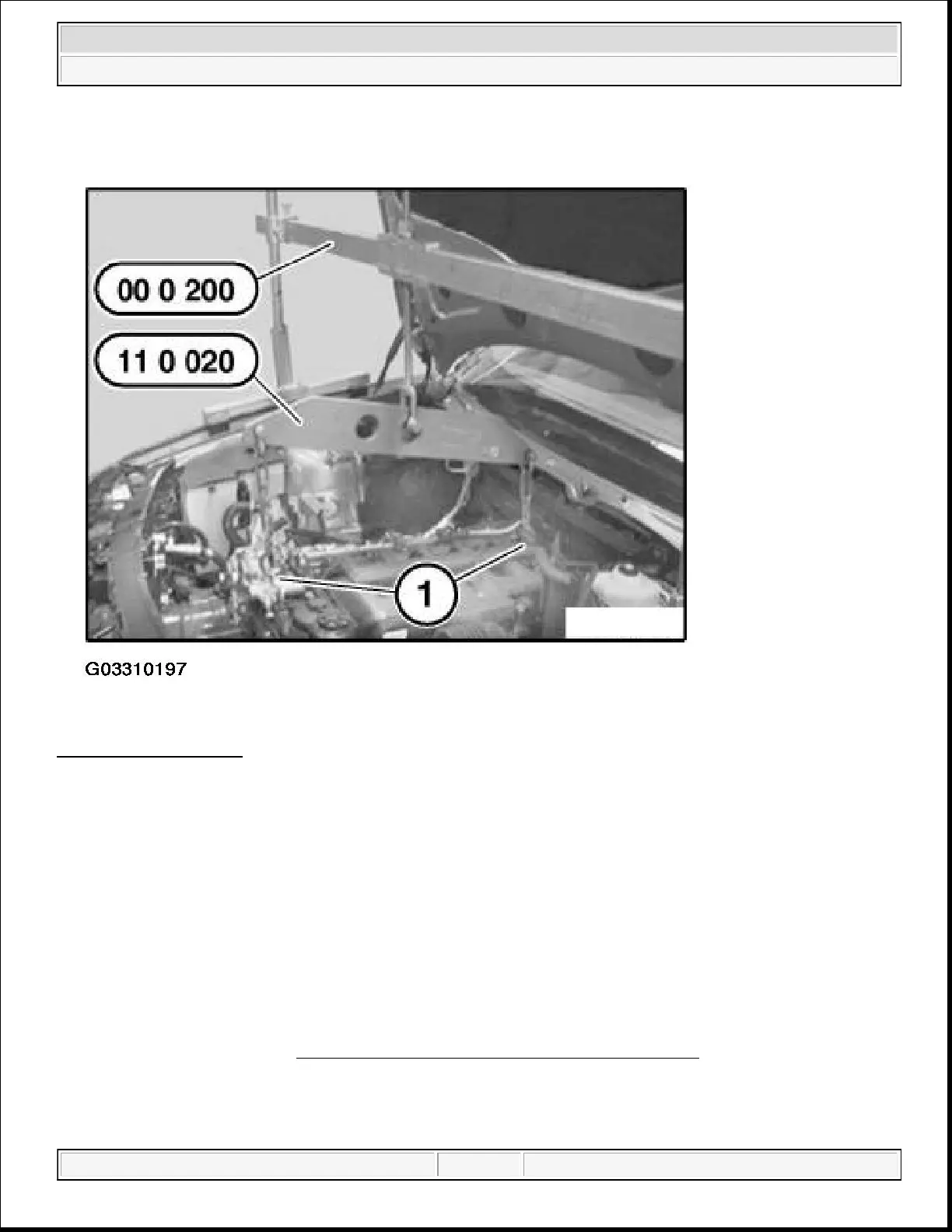

Fig. 21: Raising Engine
Courtesy of BMW OF NORTH AMERICA, INC.
Raise engine with special tool 00 0 200 approx. 10 mm
max. 30 mm - risk of damage. .
CYLINDER HEAD WITH COVER
11 12 000 REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52TU / M54 /
M56)
Remove engine cover.
Remove ignition coils. Refer to 12 13 511 REPLACING IGNITION COILS (M54) .
Remove wiring harness of ignition coils from cylinder head cover and place to one side.
