11 51 000 REMOVING AND INSTALLING COMPLETE WATER PUMP (M52 / S52 / M52TU / M54 /
M56)
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M52 / S52 /
M52TU / M54 / M56).

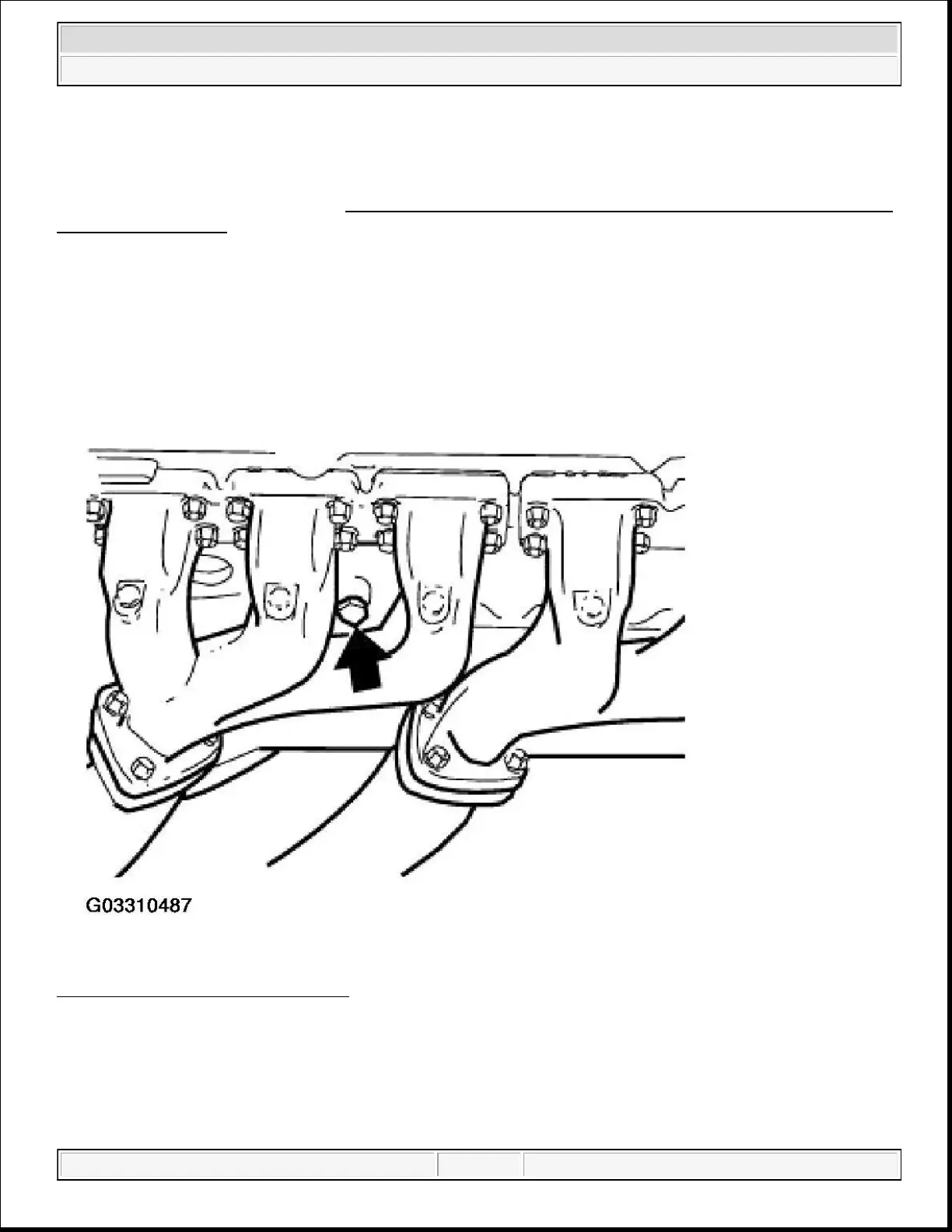

Fig. 374: Locating Water Drain Plug
Courtesy of BMW OF NORTH AMERICA, INC.
Drain and dispose of coolant.
NOTE: M52 / S52
Water drain plug is located on exhaust side between cylinders 4 and 5 in engine
block (illustration).
M52TU / M54 / M56
Water drain plug is located on exhaust side on cylinder 2 in engine block.
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:57 p. m. Page 384 © 2011 Mitchell Repair Information Company, LLC.
