BMW M54 - REPLACING CYLINDER HEAD GASKET (M52; S52; M52 TU; M54; M56); DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52; S52; M52 TU; M54; M56)

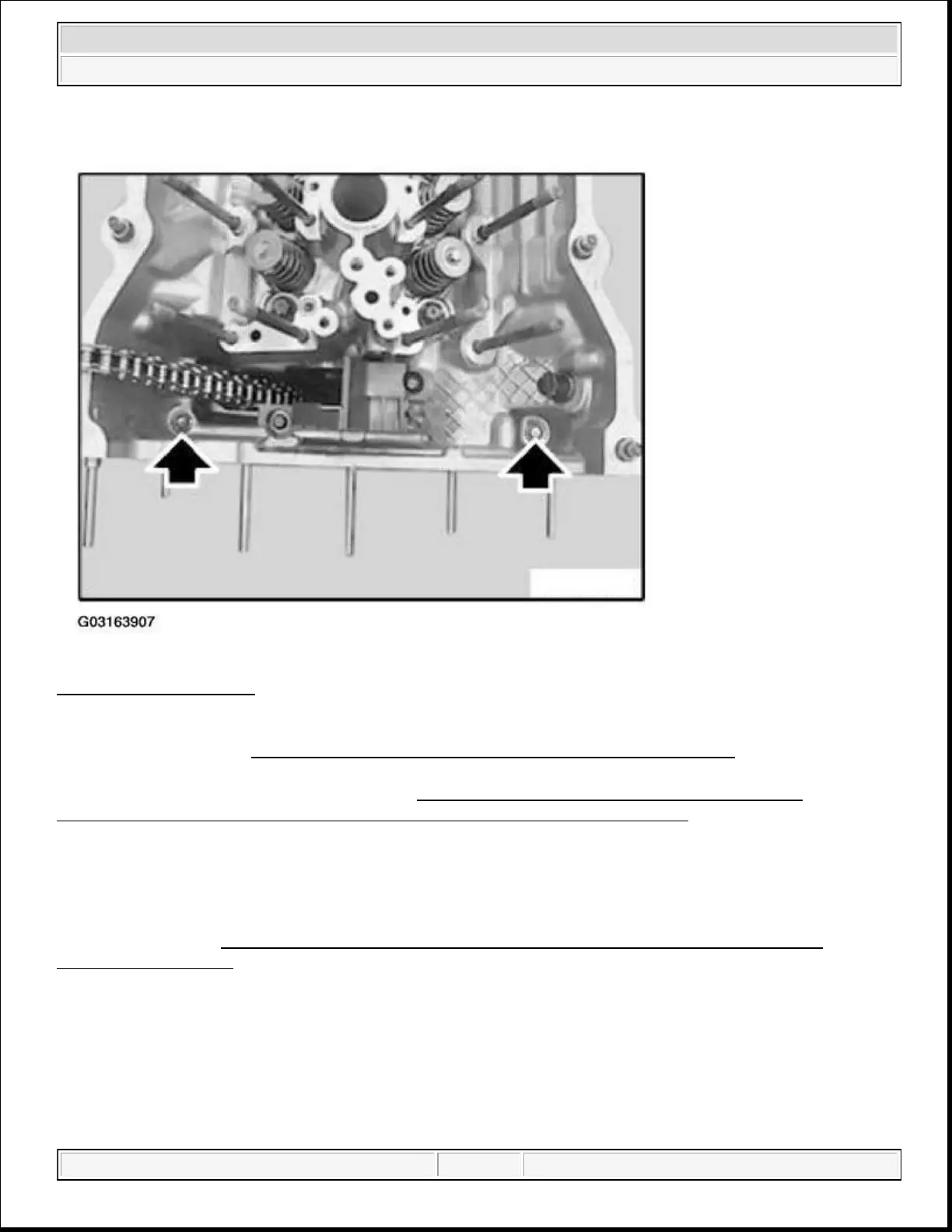

Fig. 36: Inserting Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Install camshafts, refer to 11 31 001 REPLACING CAMSHAFT (M52TU / M54 / M56).
Install double VANOS adjustment unit, refer to 11 36 010 REMOVING AND INSTALLING OR
REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56).
Assemble engine.
11 12 101 REPLACING CYLINDER HEAD GASKET (M52 / S52 / M52TU / M54 / M56)
Tasks are identical to REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER
(M52TU / M54 / M56).
11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52 / S52 / M52TU / M54 /
M56)
Special tools required:
