Remove complete exhaust system, refer to 18 00 020 REMOVING AND INSTALLING COMPLETE
EXHAUST SYSTEM (M54)
Remove air pump
Remove rear control sensor. Refer to 11 78 512 REPLACING OXYGEN CONTROL SENSOR
(CYLINDERS 4-6).
Remove cover from fuel injectors.
Mark plug connections.
Unclip cable from holder. Disconnect plug connection. Unclip cable on rear side of engine from cable guide.

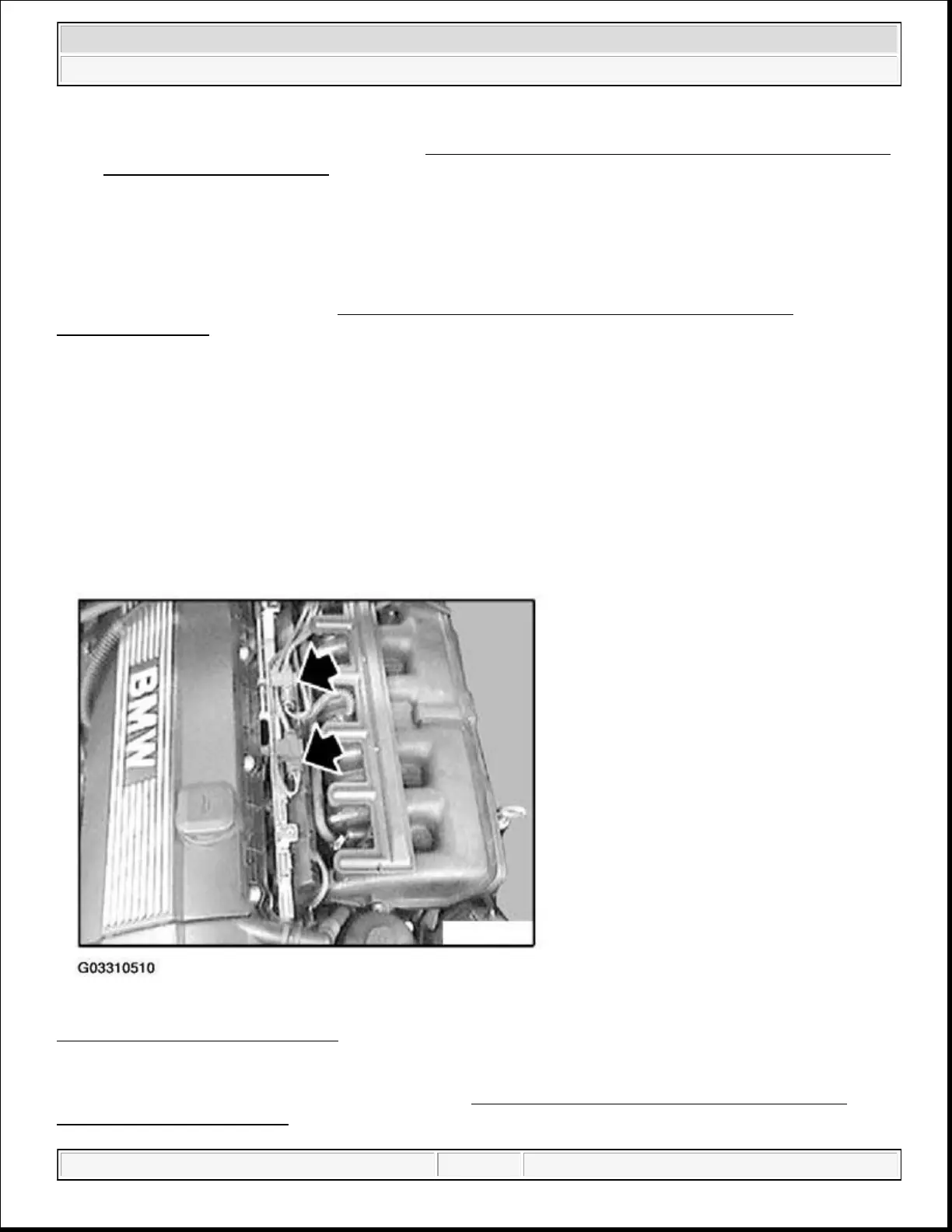

Fig. 395: Locating Monitor Sensors
Courtesy of BMW OF NORTH AMERICA, INC.
Remove monitor sensor from cylinders 4 to 6. Refer to 11 78 612 REPLACING OXYGEN MONITOR
NOTE: The oxygen sensors are in danger of being damaged when the exhaust
manifolds are removed and installed.
NOTE: Do not mix up monitor sensors for cylinders 1 to 3 and 4 to 6 at plug connection
to wiring harness.
